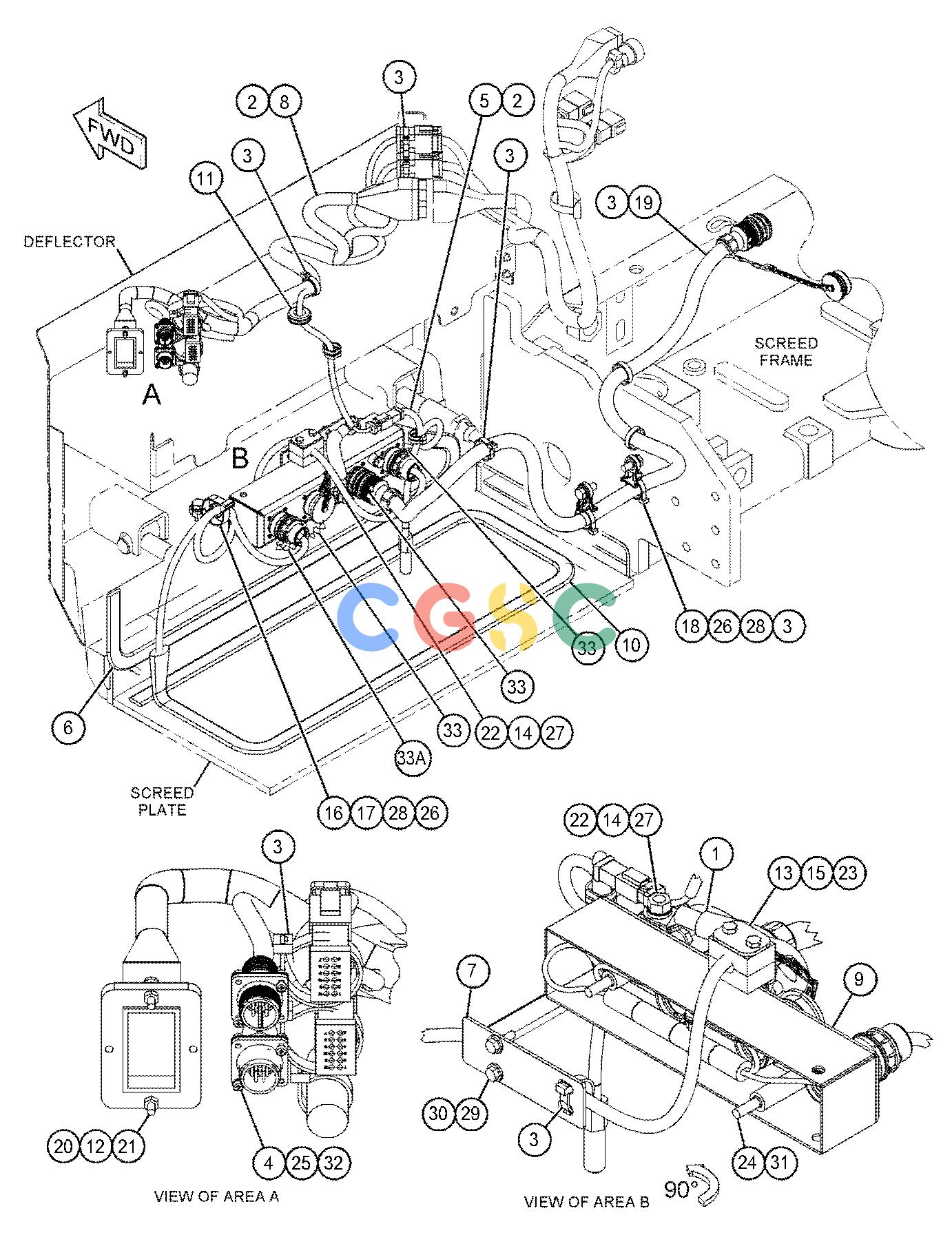

卡特零件查询（AP655F） 438-1052: WIRING GP-SCREED HEATER
广数供应链运营团队, 17 02月, 2025，浏览：
161 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-2342 | [1] | STRAP AS-GROUND | |
| 2. | 3S-2093 | [4] | STRAP-CABLE | |
| 3. | 7K-1181 | [12] | STRAP-CABLE | |
| 4. | 132-8485 | [2] | NUT-RING | |
| 5. | 336-2011 | [1] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 399-6960 | [1] | HEATER AS-SCREED(675-VOLT, 664-WATT) | |
| | 418-6712 | [1] | PLUG AS-CONNECTOR | |
| 7. | 417-1001 | [1] | PLATE | |
| 8. | 438-1037Y | [1] | HARNESS AS-WIRING(EXTENSION) | |
| 9. | 438-1050Y | [1] | BOX GP-JUNCTION(EXTENSION) | |
| 10. | 450-5557 | [1] | HEATER AS(675-VOLT, 3350-WATT) | |
| | 418-6712 | [1] | PLUG AS-CONNECTOR | |
| 11. | 061-8844 | [1] | GROMMET | |
| 12. | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 13. | 107-4749 | [1] | PLATE | |
| 14. | 124-7346 | [2] | LOCKWASHER | |
| 15. | 1G-8781 | [2] | CLAMP(HALF) | |
| 16. | 204-2281 | [1] | STRAP-CABLE | |
| 17. | 204-8000 | [1] | MOUNTING-CABLE TIE | |
| 18. | 381-2621 | [2] | MOUNTING-CABLE TIE | |
| 19. | 399-9056Y | [1] | HARNESS AS-WIRING(POWER) | |
| 20. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 21. | 6V-9491M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 22. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| 23. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 24. | 7X-2538M | [2] | BOLT(M8X1.25X100-MM) | |
| 25. | 8C-8560 | [4] | SCREW-LOCK(4-40X0.5-IN) | |
| 26. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 28. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 29. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 30. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 9B-1117 | [4] | LOCKWASHER | |
| 33. | 5P-6025D | | LOCKWIRE(0.1-M EACH) | |
| 33A. | 5P-6025D | | LOCKWIRE(0.2-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
