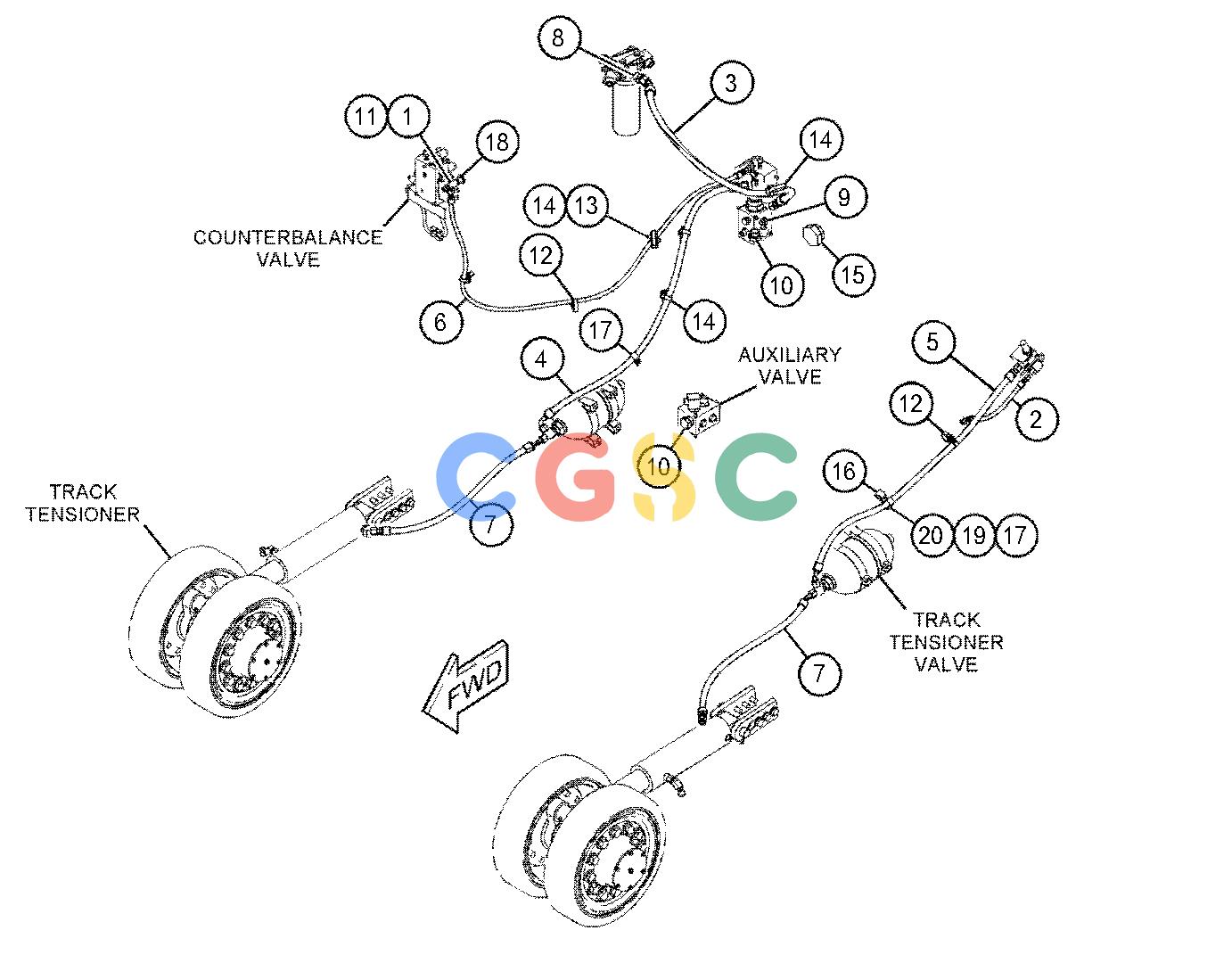

卡特零件查询（AP655F） 433-3504: LINES GP-TRACK TENSION
广数供应链运营团队, 17 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 168-1968 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 126-6872 | [1] | TEE | |
| 2. | 362-8121I | [1] | HOSE AS | |
| 3. | 444-1034I | [1] | HOSE AS | |
| 4. | 444-1068I | [1] | HOSE AS | |
| 5. | 444-1069I | [1] | HOSE AS | |
| 6. | 444-1070I | [1] | HOSE AS | |
| 7. | 445-5252I | [2] | HOSE AS | |
| 8. | 148-8341 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 9. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 10. | 164-4180 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 11. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 12. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 13. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 14. | 204-2281 | [10] | STRAP-CABLE | |
| 15. | 205-0672 | [1] | PLUG AS | |
| | 9S-7583 | [1] | PLUG | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 16. | 223-3490 | [1] | CLIP | |
| 17. | 1S-0994 | [2] | CLIP(LOOP) | |
| 18. | 6V-0852 | [1] | CAP-DUST | |
| 19. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
