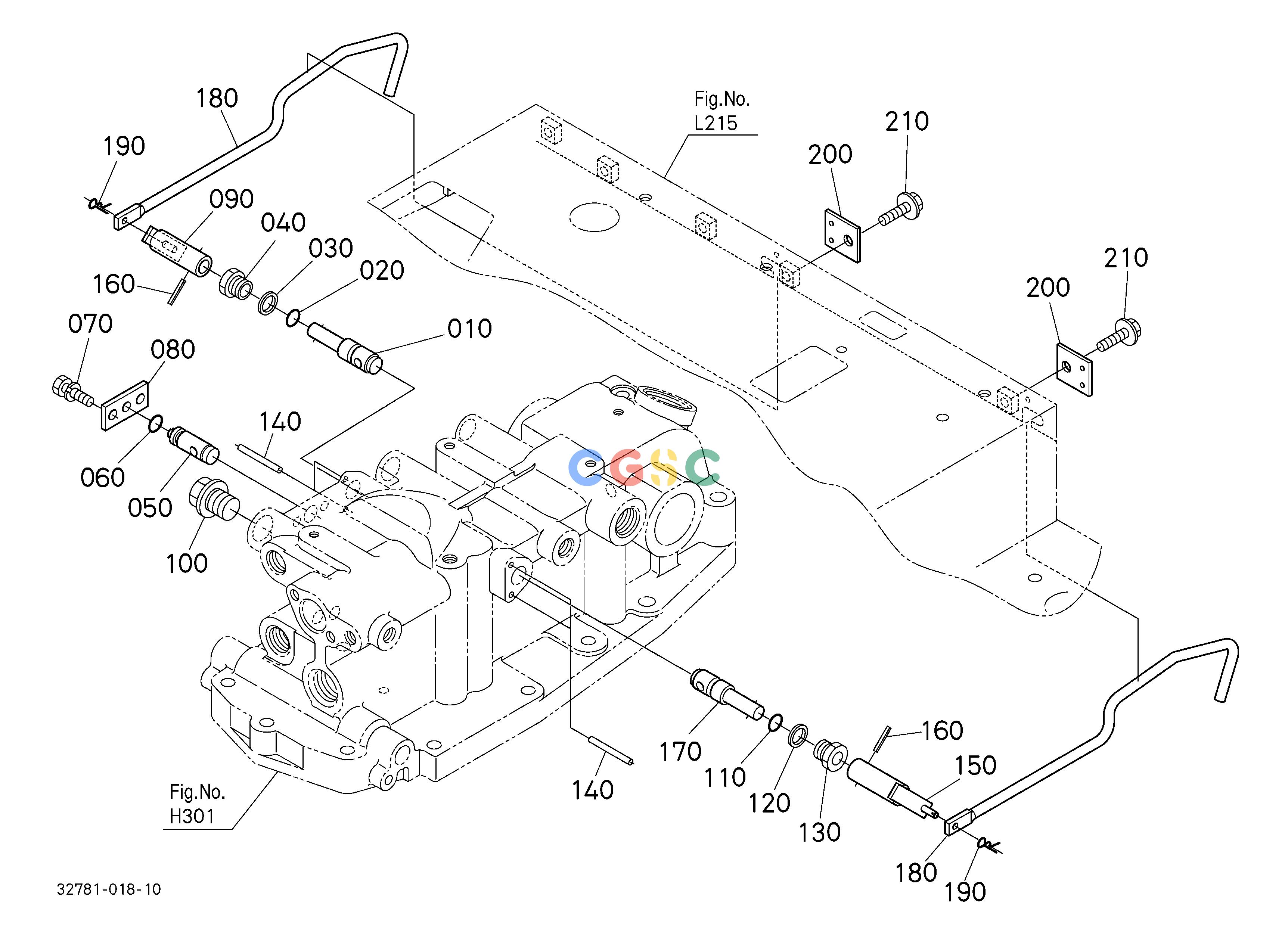

久保田零件查询H34000 HYDRAULIC CHANGE LEVER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278136640
|
[1] |
SPOOL
|
0.1408(lbs); 0.064
|
| 020. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
6855161420
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 040. |
3277136630
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 040. |
YR98600310
|
[1] |
BOLT
|
0.0638(lbs); 0.029
|
| 050. |
3278134210
|
[1] |
SPOOL
|
0.0990(lbs); 0.045
|
| 060. |
0481606100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 080. |
3278134240
|
[1] |
SUPPORT
|
0.0770(lbs); 0.035
|
| 090. |
3278136960
|
[1] |
LEVER,CHANGE
|
0.1540(lbs); 0.070
|
| 100. |
5260028560
|
[1] |
PLUG
|
0.1694(lbs); 0.077
|
| 110. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
6855161420
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 130. |
3277136630
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 130. |
YR98600310
|
[1] |
BOLT
|
0.0638(lbs); 0.029
|
| 140. |
0541100536
|
[4] |
PIN,SPRING
|
0.0066(lbs); 0.003
|
| 150. |
3278136960
|
[1] |
LEVER,CHANGE
|
0.1540(lbs); 0.070
|
| 160. |
0541100335
|
[2] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 170. |
3278136620
|
[1] |
SPOOL
|
0.1430(lbs); 0.065
|
| 180. |
3278136942
|
[2] |
ROD
|
0.3080(lbs); 0.140
|
| 190. |
0552550500
|
[2] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 200. |
3278136950
|
[2] |
GUIDE
|
0.0506(lbs); 0.023
|
| 210. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
