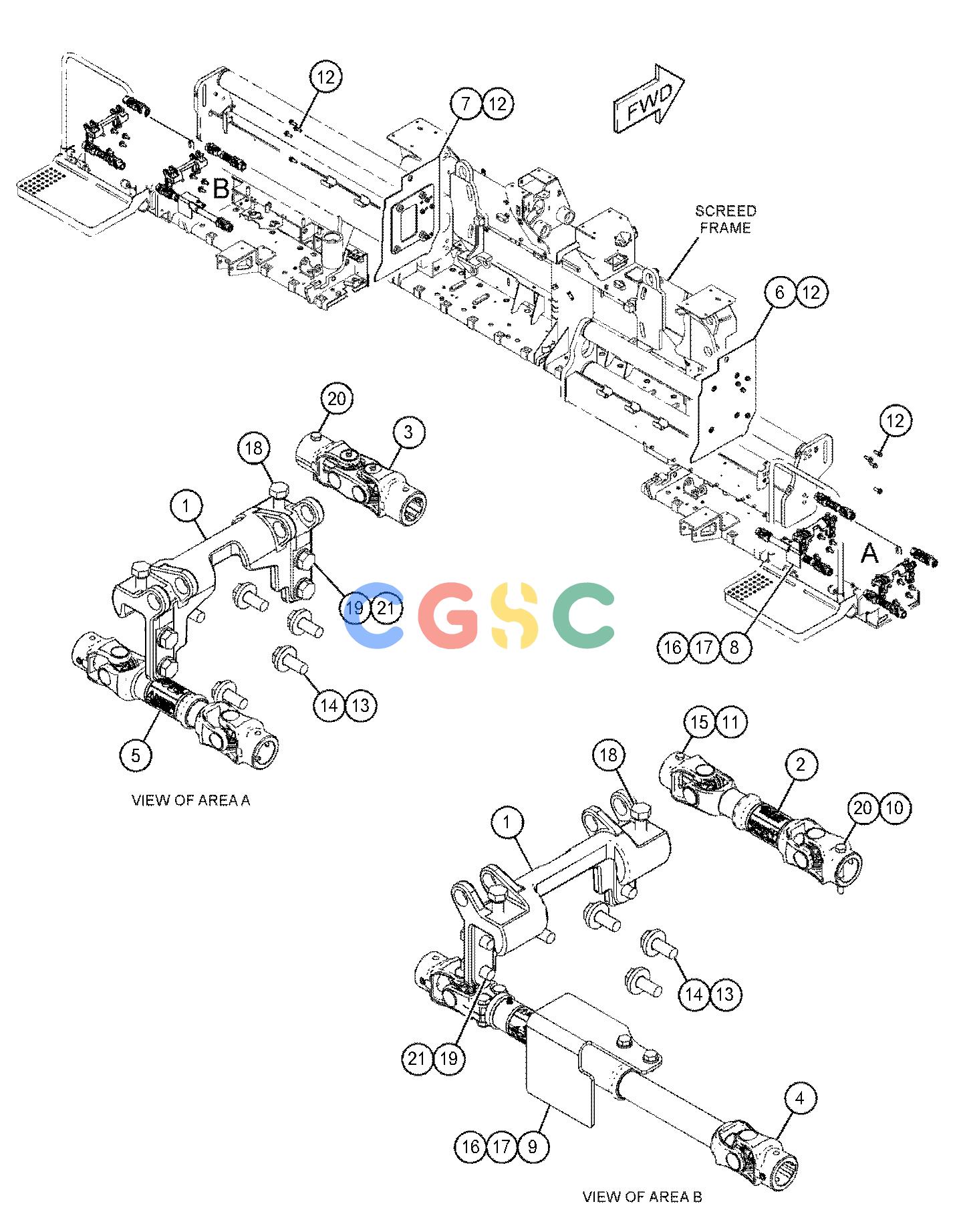

卡特零件查询（AP655F） 390-7836: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
283 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 393-0646 | [4] | HOOK | |
| 2. | | [2] | SHAFT GP-DRIVE |
| 3. | 417-0684 | [2] | SHAFT GP-DRIVE | |
| 4. | 440-0767Y | [2] | SHAFT GP-DRIVE(SCREED TAMPER) | |
| 5. | 442-5137 | [2] | SHAFT GP-DRIVE | |
| 6. | | [1] | PLATE AS(RH) |
| 7. | | [1] | PLATE AS(LH) |
| | | | (EACH PLATE AS INCLUDES) |
| | 355-8941M | [4] | NUT-WELD(M16X2-THD) | |
| | | [4] | BOSS |
| 8. | 457-8957 | [1] | GUARD | |
| 9. | 457-8958 | [1] | GUARD | |
| 10. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 11. | 208-8469M | [2] | LOCKNUT(M6X1-THD) | |
| 12. | 360-3419M | [16] | BOLT-FLANGE HEAD(M16X2X45-MM) | |
| 13. | 3E-9411 | [20] | WASHER-HARD(17.5X38X6-MM THK) | |
| 14. | 7X-2553M | [20] | BOLT(M16X2X40-MM) | |
| 15. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 16. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 18. | 8T-4140M | [8] | BOLT(M16X2X60-MM) | |
| 19. | 8T-4779M | [16] | BOLT(M16X2X35-MM) | |
| 20. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| 21. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
