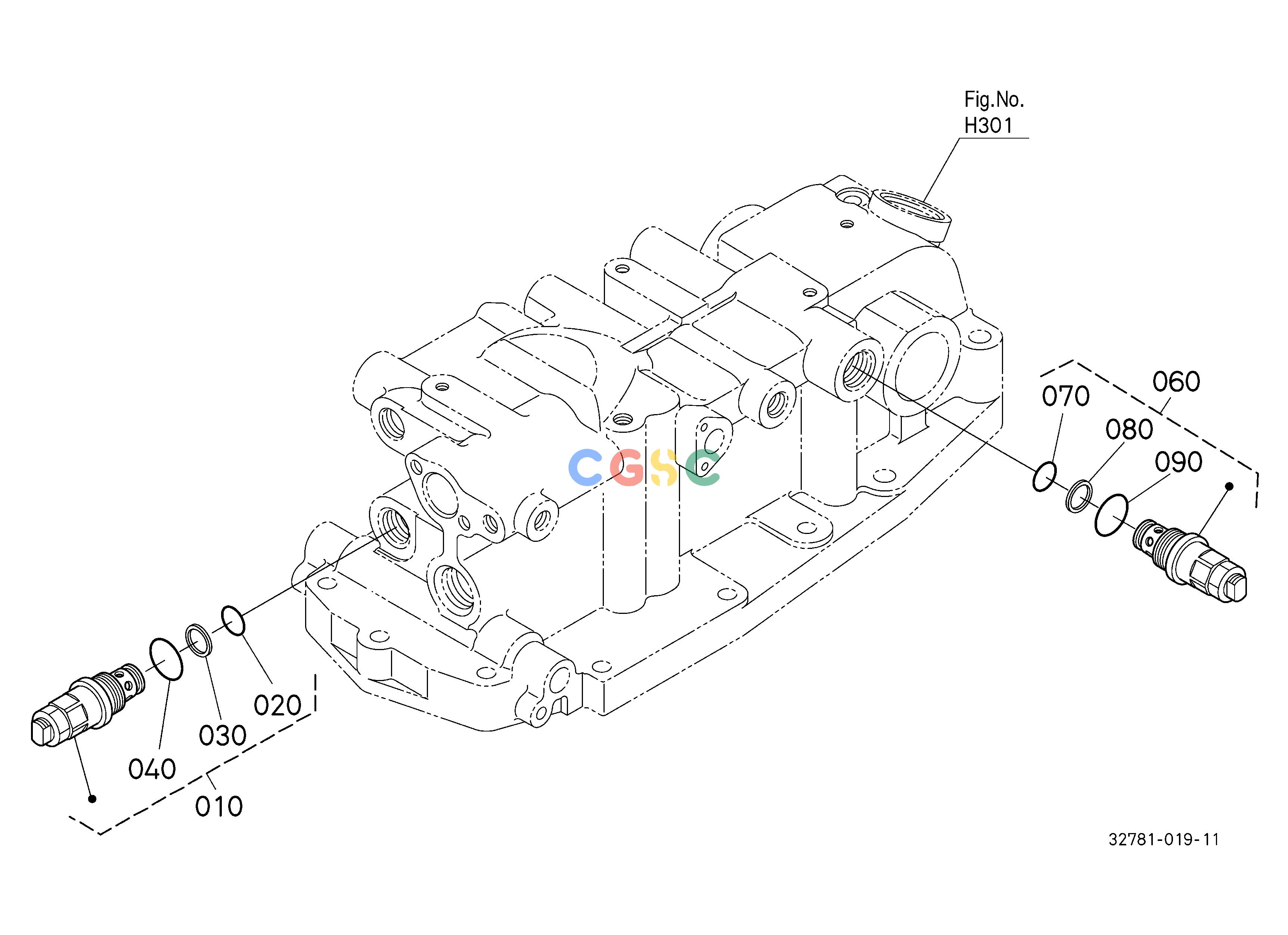

久保田零件查询H43000 RELIEF VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278134221
|
[1] |
ASSY VALVE,RELIEF
|
0.0000(lbs); 0.000
|
| 010. |
YW29200100
|
[1] |
ASSY VALVE,RELIEF
|
0.3696(lbs); 0.168
|
| 020. |
0481705150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
6781038370
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 040. |
0481700220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3278134231
|
[1] |
ASSY VALVE
|
0.0000(lbs); 0.000
|
| 060. |
YW29300100
|
[1] |
ASSY VALVE
|
0.3696(lbs); 0.168
|
| 070. |
0481705150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
6781038370
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 090. |
0481700220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
