卡特零件查询（AP655F） 451-2573: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
236 次

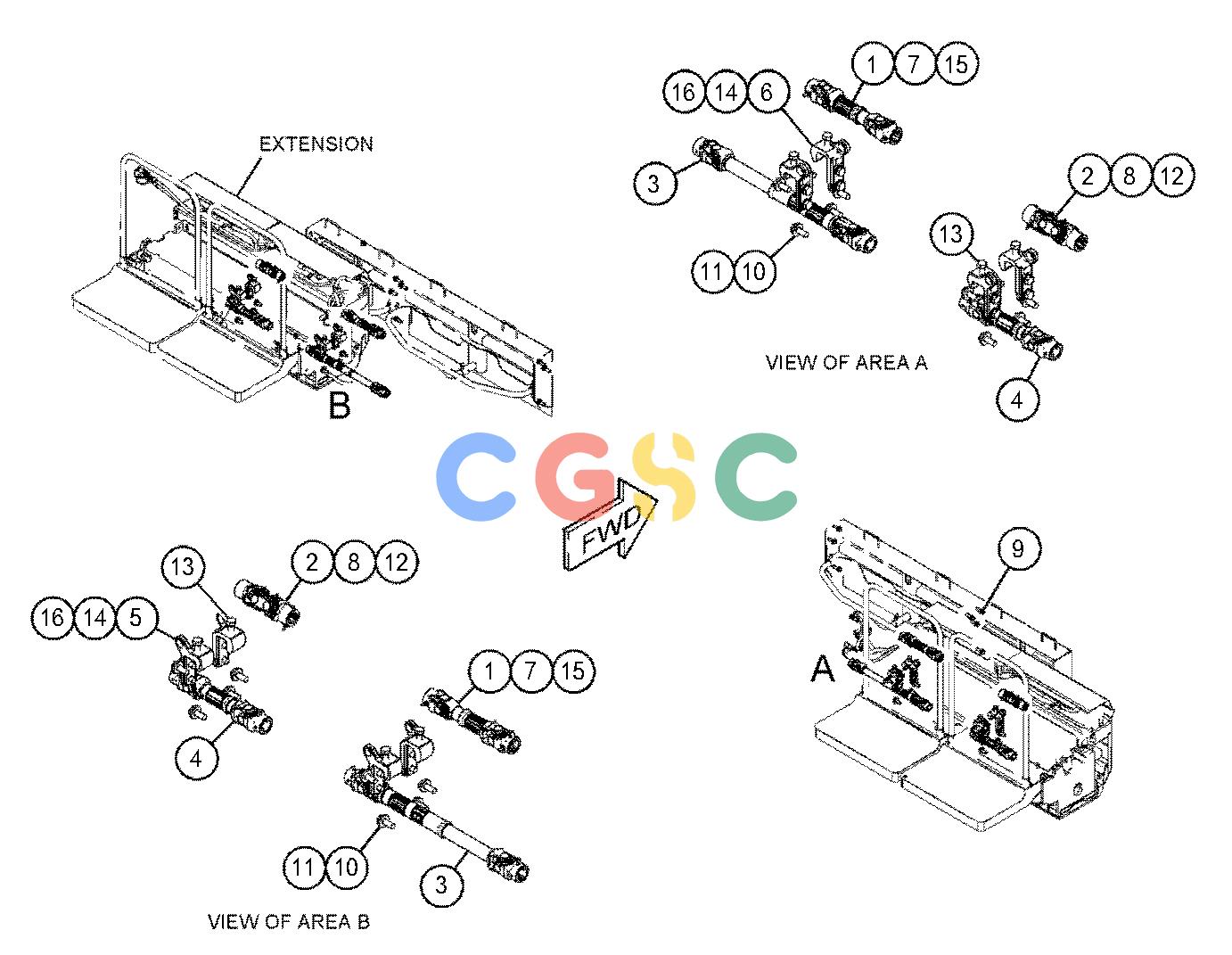

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | | [2] | SHAFT GP-DRIVE |
| 2. | 417-0684 | [2] | SHAFT GP-DRIVE | |
| 3. | 440-0767Y | [2] | SHAFT GP-DRIVE | |
| 4. | 442-5137 | [2] | SHAFT GP-DRIVE | |
| 5. | 451-2603 | [4] | HOOK | |
| 6. | 451-2604 | [4] | HOOK | |
| 7. | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 8. | 208-8469M | [4] | LOCKNUT(M6X1-THD) | |
| 9. | 360-3419M | [14] | BOLT-FLANGE HEAD(M16X2X45-MM) | |
| 10. | 3E-9411 | [20] | WASHER-HARD(17.5X38X6-MM THK) | |
| 11. | 7X-2553M | [20] | BOLT(M16X2X40-MM) | |
| 12. | 8T-3844M | [4] | BOLT(M6X1X70-MM) | |
| 13. | 8T-4140M | [8] | BOLT(M16X2X60-MM) | |
| 14. | 8T-4779M | [16] | BOLT(M16X2X35-MM) | |
| 15. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 16. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
