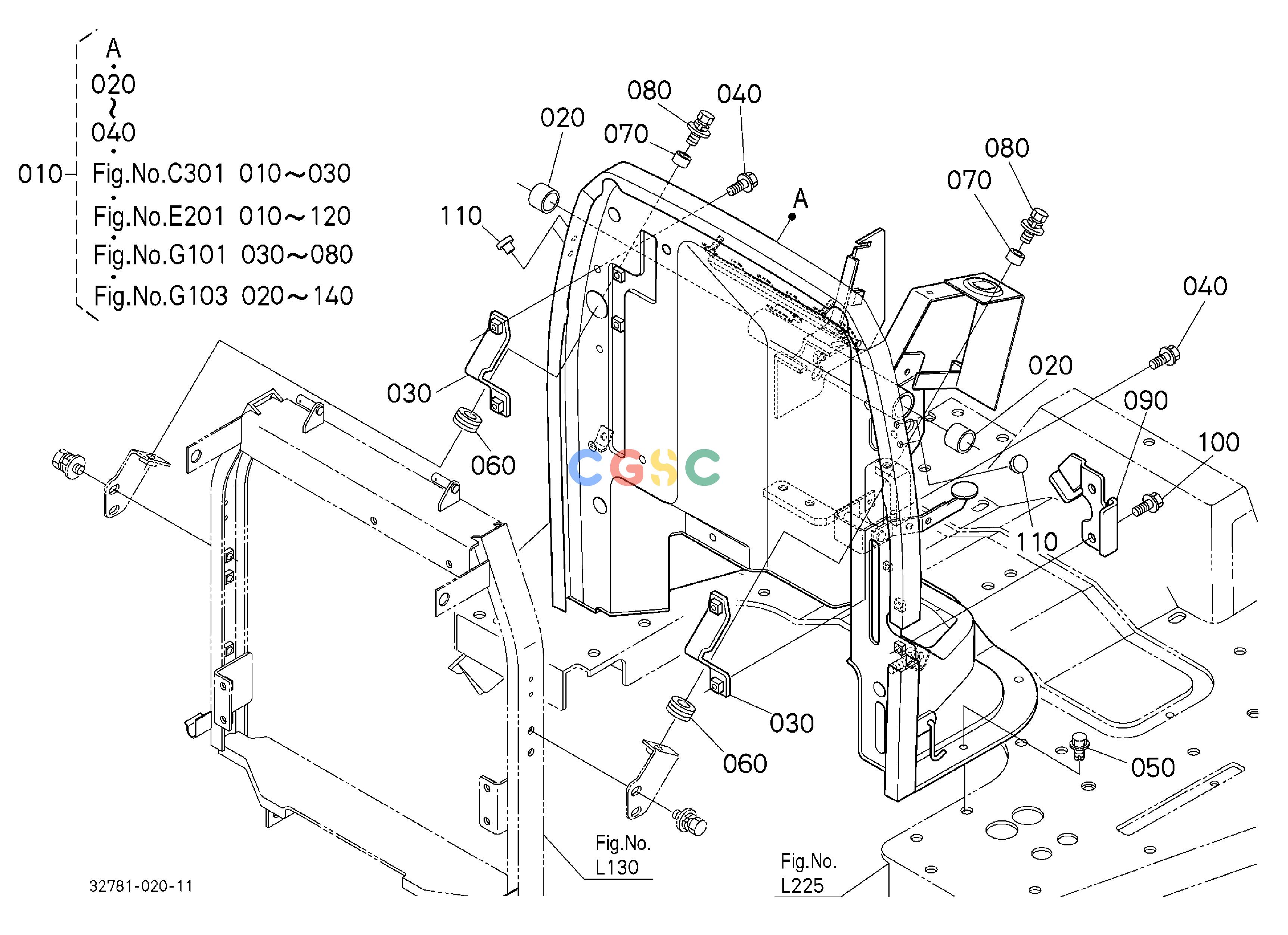

久保田零件查询L20100 PANEL FRAME ## NOTE:ORDER BY REF.No.010,Fig.G105 REF.040,090 and Fig.G110 REF.020 NEW PARTS. HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278143203
|
[1] |
ASSY FRAME,PANEL
|
0.0000(lbs); 0.000
|
| 010. |
3278143204
|
[1] |
ASSY FRAME,PANEL
|
56.9800(lbs); 25.900
|
| 010. |
3278143205
|
[1] |
ASSY FRAME,PANEL
|
56.9800(lbs); 25.900
|
| 020. |
TD06044080
|
[2] |
BUSH
|
0.0396(lbs); 0.018
|
| 030. |
TD06043230
|
[2] |
STAY(PANEL FRAME)
|
0.2420(lbs); 0.110
|
| 040. |
0175450816
|
[4] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 050. |
T106047370
|
[8] |
BOLT
|
0.0242(lbs); 0.011
|
| 060. |
T115042042
|
[2] |
CUSHION(PILLAR,REAR)
|
0.0154(lbs); 0.007
|
| 070. |
T115042290
|
[2] |
COLLAR
|
0.0066(lbs); 0.003
|
| 080. |
0112750830
|
[2] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 090. |
TD06015903
|
[1] |
SUPPORT(HARNESS,WIRE)
|
0.2420(lbs); 0.110
|
| 100. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 110. |
3824029570
|
[4] |
PLUG
|
0.0022(lbs); 0.001
|
