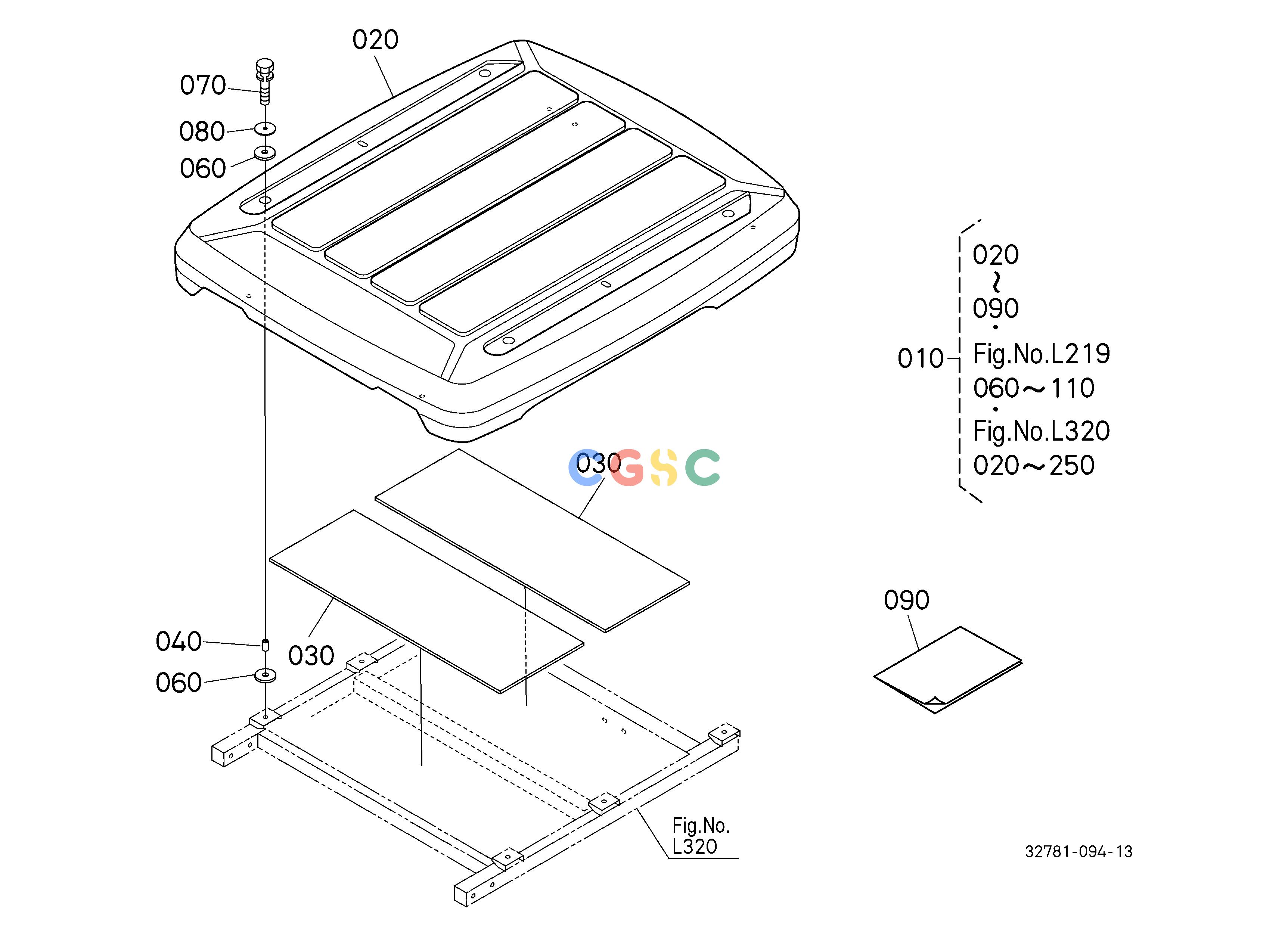

久保田零件查询L31500 CANOPY ROPSEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278193950
|
[1] |
KIT ROPS,FOPS
|
0.0000(lbs); 0.000
|
| 020. |
3278134963
|
[1] |
COMP CANOPY
|
0.0000(lbs); 0.000
|
| 030. |
3278134990
|
[2] |
ACOUSTIC FORM(FOPS)
|
0.0000(lbs); 0.000
|
| 040. |
3278134880
|
[6] |
COLLAR
|
0.0000(lbs); 0.000
|
| 060. |
3278134870
|
[12] |
CUSHION(FOPS)
|
0.0000(lbs); 0.000
|
| 070. |
0113351055
|
[6] |
BOLT,SEMS
|
0.0858(lbs); 0.039
|
| 080. |
3278134890
|
[6] |
WASHER,PLAIN
|
0.0000(lbs); 0.000
|
| 090. |
99999-99999
|
[1] |
MANUAL,ROPS KIT
|
0.0000(lbs); 0.000
|
