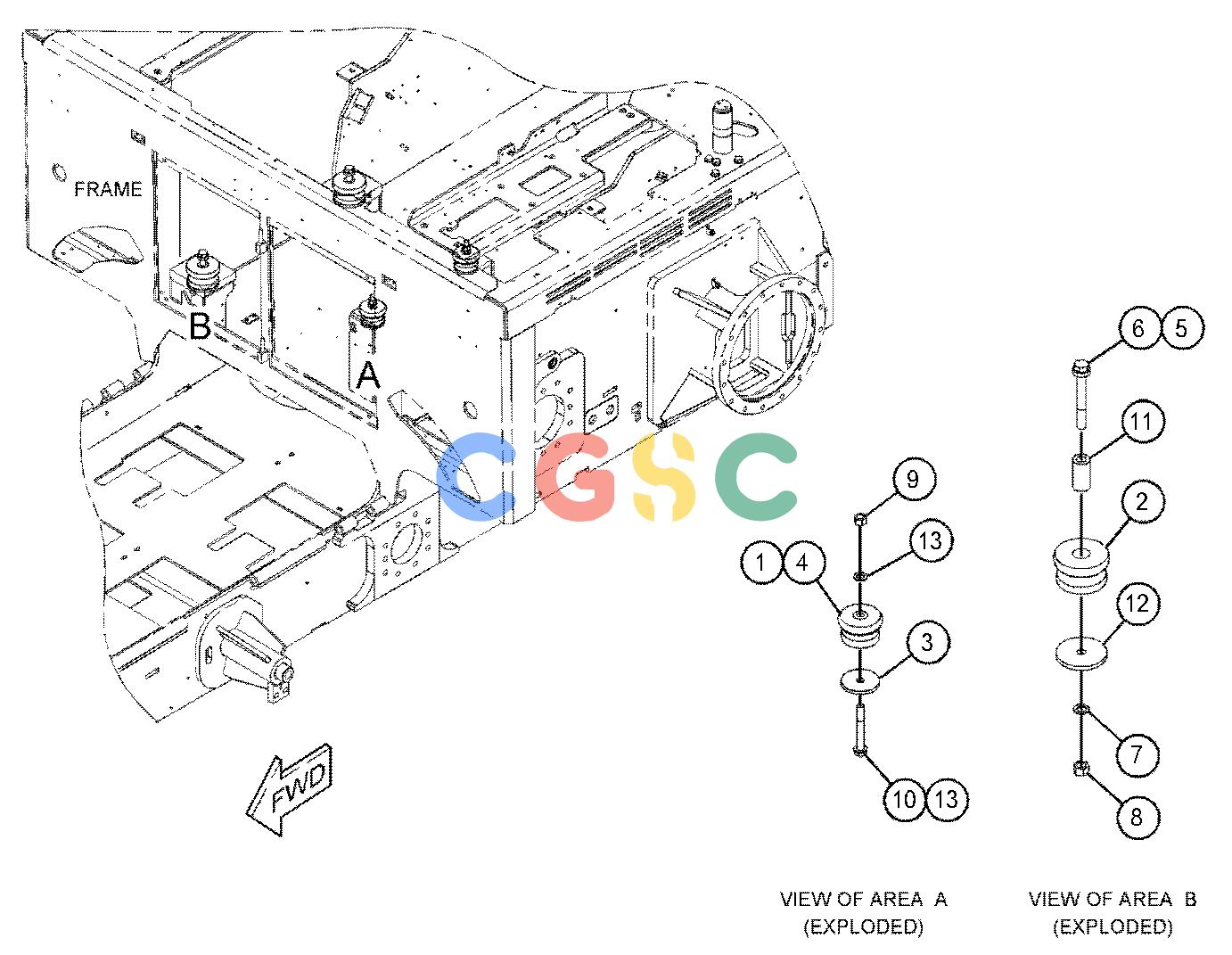

卡特零件查询（AP655F） 424-9159: MOUNTING GP-ENGINE FLEXIBLE
广数供应链运营团队, 17 02月, 2025，浏览：
667 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9W-9910 | [2] | MOUNT AS | |
| 2. | 9W-9930 | [2] | MOUNT AS | |
| 3. | 9W-9952 | [2] | WASHER(16.75X86X8-MM THK) | |
| 4. | 9W-9953 | [2] | SLEEVE | |
| 5. | 198-4781 | [2] | WASHER-HARD(22X40X10-MM THK) | |
| 6. | 7X-2488M | [2] | BOLT(M20X2.5X160-MM) | |
| 7. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 8. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 9. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 10. | 8T-4174M | [2] | BOLT(M16X2X120-MM) | |
| 11. | 9W-6582 | [2] | SLEEVE | |
| 12. | 9W-6584 | [2] | WASHER(20.5X114X10-MM THK) | |
| 13. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
