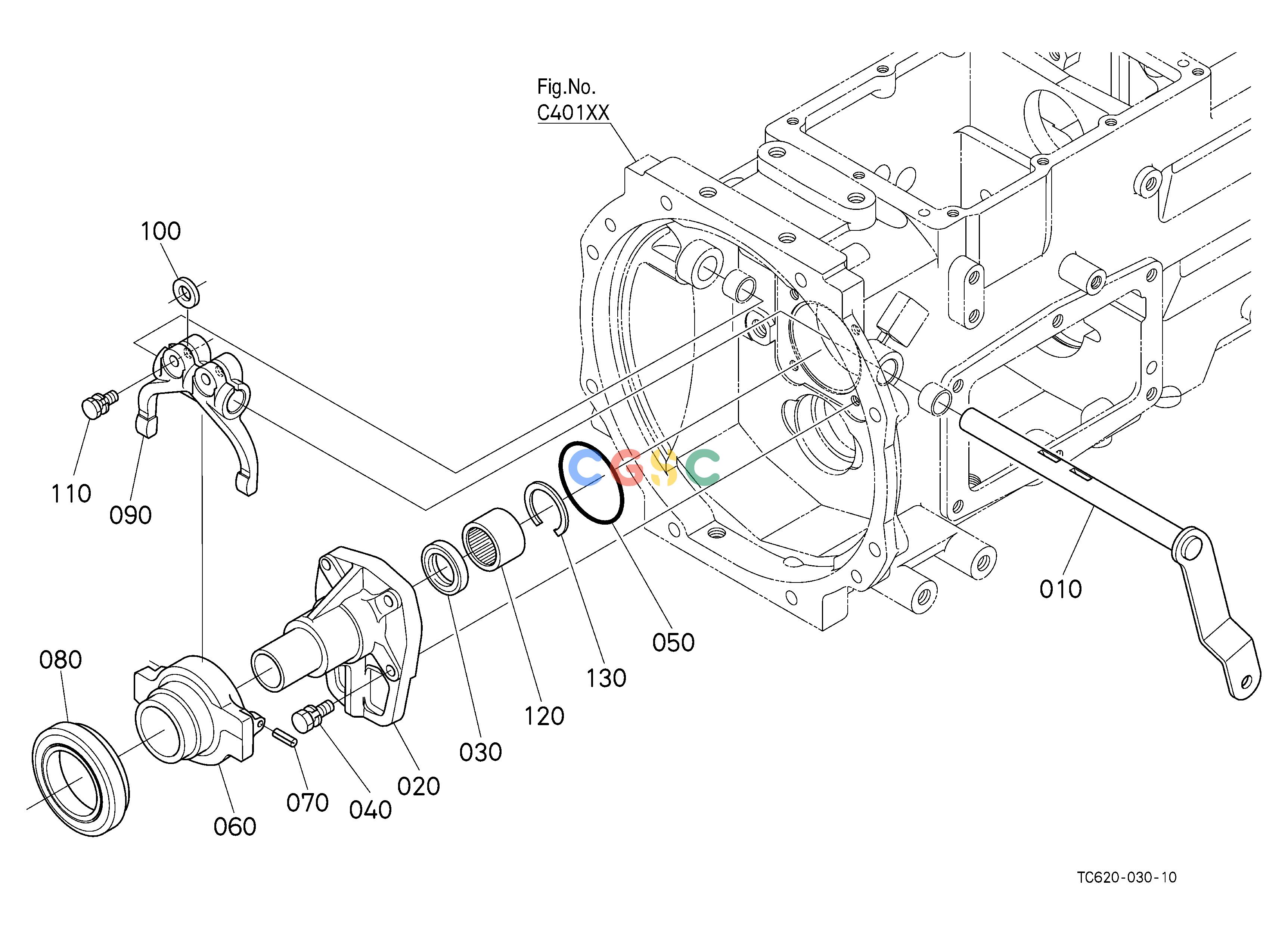

久保田零件查询C20102 CLUTCH RELEASE FORK CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC62014712
|
[1] |
LEVER(CLUTCH)
|
0.0000(lbs); 0.000
|
| 020. |
TC68225510
|
[1] |
CASE(PROPELLER SHAFT
|
0.0000(lbs); 0.000
|
| 030. |
0950035477
|
[1] |
SEAL,OIL
|
0.0264(lbs); 0.012
|
| 040. |
0112350835
|
[4] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
0481110670
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 060. |
TC68214810
|
[1] |
HOLDER(BRG,RELEASE)
|
0.0000(lbs); 0.000
|
| 070. |
0541100314
|
[2] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 080. |
3843014820
|
[1] |
BEARING,THRUST BALL
|
0.5940(lbs); 0.270
|
| 090. |
TC68214720
|
[1] |
FORK(CLUTCH,RELEASE)
|
0.0000(lbs); 0.000
|
| 100. |
TC40214780
|
[2] |
KEY,FORK CLUTCH RELEASE
|
0.0000(lbs); 0.000
|
| 110. |
TC62014750
|
[2] |
BOLT(FORK,RELEASE)
|
0.0000(lbs); 0.000
|
| 120. |
0881384820
|
[1] |
BEARING,NEEDLE
|
0.1320(lbs); 0.060
|
| 130. |
3135115460
|
[1] |
CIR-CLIP,INTERNAL
|
0.0088(lbs); 0.004
|
