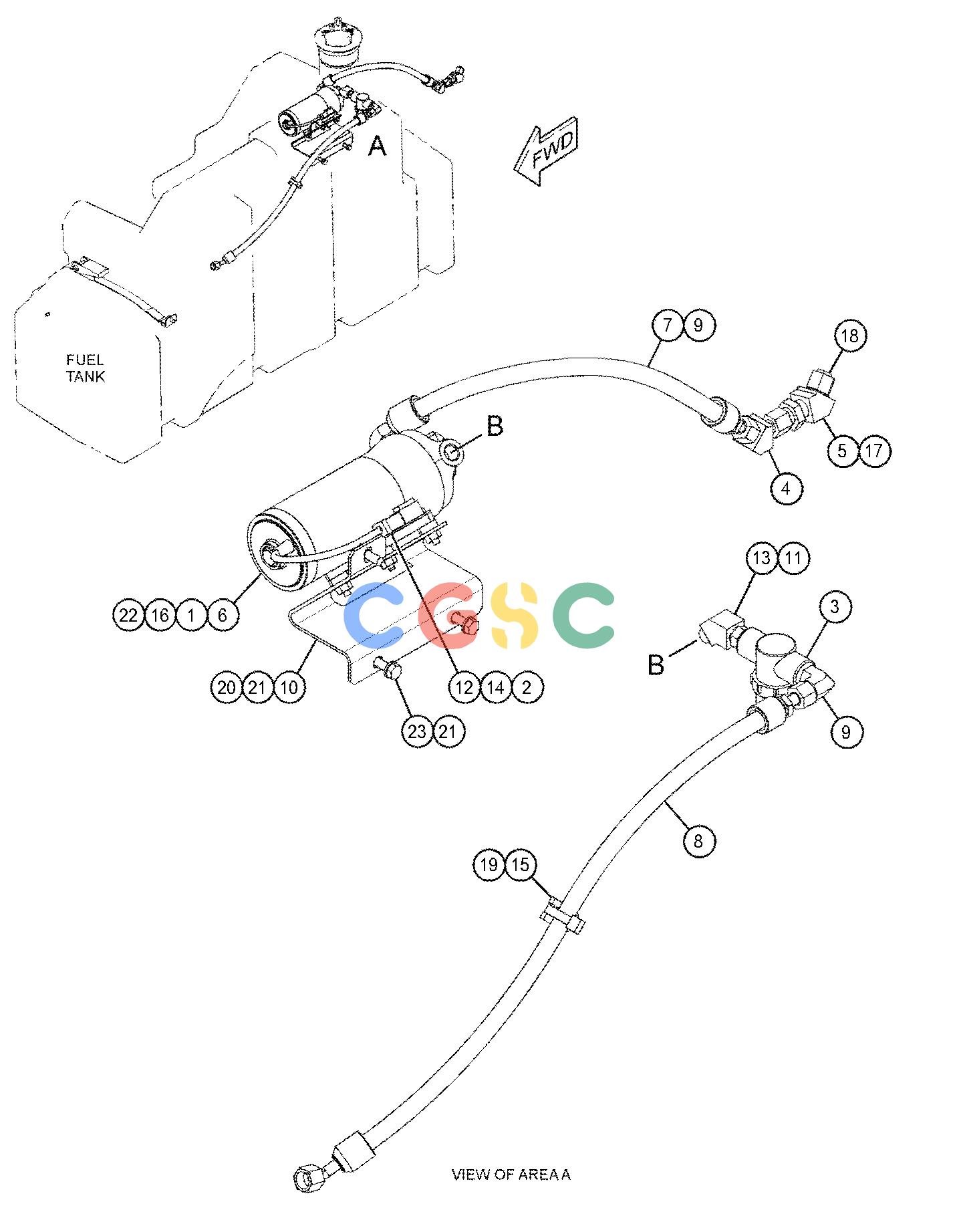

卡特零件查询（AP655F） 424-9152: WASHDOWN GP
广数供应链运营团队, 17 02月, 2025，浏览：
225 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-1813E | | SLEEVE(28-CM) | |
| 2. | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 3. | 140-3562 | [1] | STRAINER(WASHDOWN TANK) | |
| 4. | 297-7977 | [1] | ELBOW AS | |
| | 8C-8988 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 5. | 377-9586 | [1] | ELBOW AS | |
| | 6V-8987 | [1] | ELBOW | |
| | 228-7089 | [2] | SEAL-O-RING | |
| 6. | 428-3734Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 7. | 438-6233 | [1] | HOSE AS | |
| 8. | 438-6242 | [1] | HOSE AS | |
| 9. | 448-9014 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 2T-1925 | [1] | ELBOW | |
| 10. | 449-9183 | [1] | BRACKET AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 11. | 004-6683 | [1] | FITTING | |
| 12. | 130-5300 | [1] | CLIP | |
| 13. | 1L-2279 | [1] | ELBOW | |
| 14. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 15. | 4P-7581 | [1] | CLIP(LADDER) | |
| 16. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 18. | 6V-9829 | [1] | CAP(ORFS) | |
| 19. | 7K-1181 | [1] | STRAP-CABLE | |
| 20. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 21. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 8T-4971M | [4] | BOLT(M6X1X30-MM) | |
| 23. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
