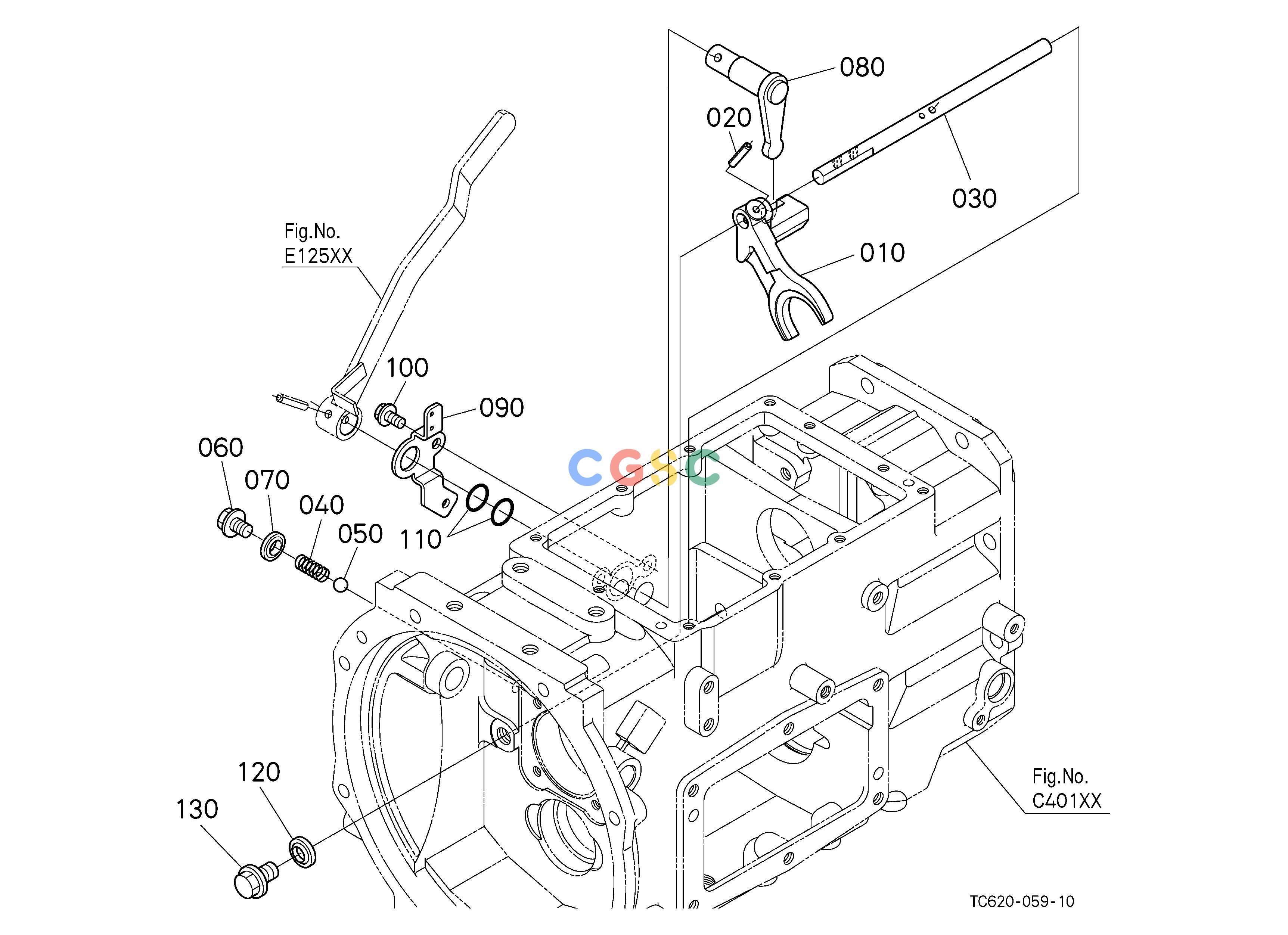

久保田零件查询D22002 PTO GEAR SHIFT FORK SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC62024610
|
[1] |
FORK,SHIFT(PTO)
|
0.0000(lbs); 0.000
|
| 020. |
0541100522
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 030. |
TC62024630
|
[1] |
ROD,FORK(PTO)
|
0.0000(lbs); 0.000
|
| 040. |
TC40223730
|
[1] |
SPRING,SHIFT
|
0.0000(lbs); 0.000
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
0177451010
|
[1] |
BOLT,FLANGE
|
0.0374(lbs); 0.017
|
| 070. |
0471701000
|
[1] |
WASHER,SEAL
|
0.0022(lbs); 0.001
|
| 080. |
TC42224433
|
[1] |
ARM,SHIFT PTO
|
0.4290(lbs); 0.195
|
| 090. |
TC62024352
|
[1] |
STOPPER(ARM,PTO)
|
0.0000(lbs); 0.000
|
| 100. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 110. |
0481600200
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 120. |
0471701400
|
[1] |
WASHER,SEAL
|
0.0044(lbs); 0.002
|
| 130. |
0633145014
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
