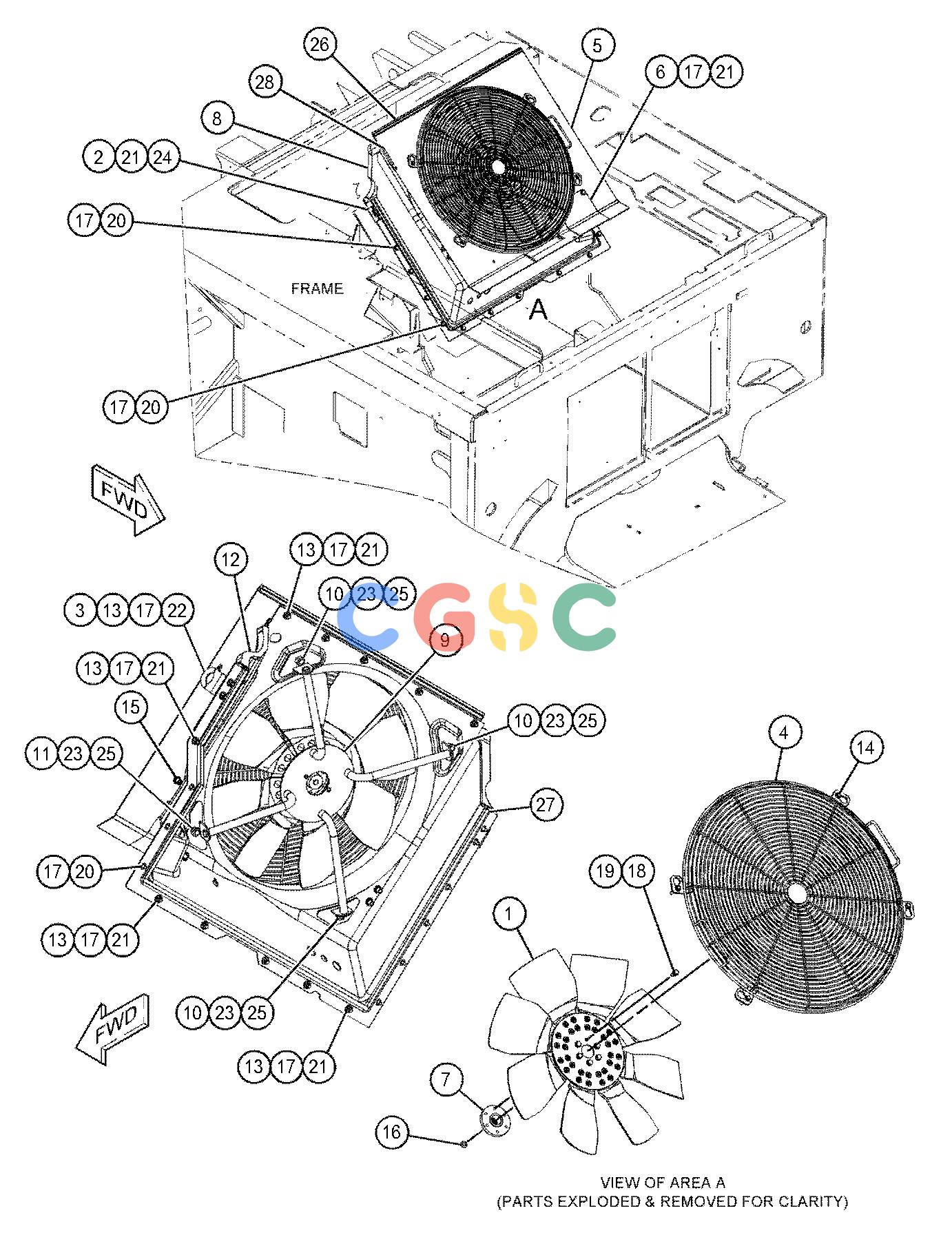

卡特零件查询（AP655F） 424-9166: FAN GP-SUCTION
广数供应链运营团队, 17 02月, 2025，浏览：
421 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 270-4274 | [1] | FAN AS(8-BLADE) | |
| 2. | 343-4083 | [1] | PLATE | |
| 3. | 432-5251 | [1] | BRACKET | |
| 4. | 438-9774 | [1] | GUARD AS-FAN | |
| 5. | 438-9775 | [1] | SHROUD AS | |
| 6. | 438-9776 | [1] | COVER | |
| 7. | 438-9777 | [1] | ADAPTER-FAN | |
| 8. | 438-9778 | [1] | INSULATION | |
| 9. | 441-0543 | [1] | SUPPORT AS-FAN | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | | [3] | PLATE AS |
| | | [1] | PLATE AS |
| | | | (EACH PLATE AS INCLUDES) |
| | 355-8941M | [1] | NUT-WELD(M16X2-THD) | |
| 10. | | [3] | PLATE |
| 11. | | [1] | PLATE |
| 12. | 442-0616 | [1] | INSULATION | |
| 13. | 344-5675M | [13] | NUT(M10X1.5-THD) | |
| 14. | 443-1643 | [4] | BOLT-FLANGE HEAD | |
| 15. | 6V-7744M | [4] | LOCKNUT(M10X1.5-THD) | |
| 16. | 7X-0622 | [1] | WASHER(13X24X2.5-MM THK) | |
| 17. | 7X-7729 | [34] | WASHER(11X25X3-MM THK) | |
| 18. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 20. | 8T-4137M | [7] | BOLT(M10X1.5X20-MM) | |
| 21. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| 22. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 23. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 24. | 8T-7934 | [2] | WASHER-HARD(11X21X5-MM THK) | |
| 25. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 26. | 5P-7211D | | SEAL(1.1-M) | |
| 27. | 5P-5930D | | SEAL(2.7-M) | |
| 28. | 6V-5746D | | TRIM(0.1-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
