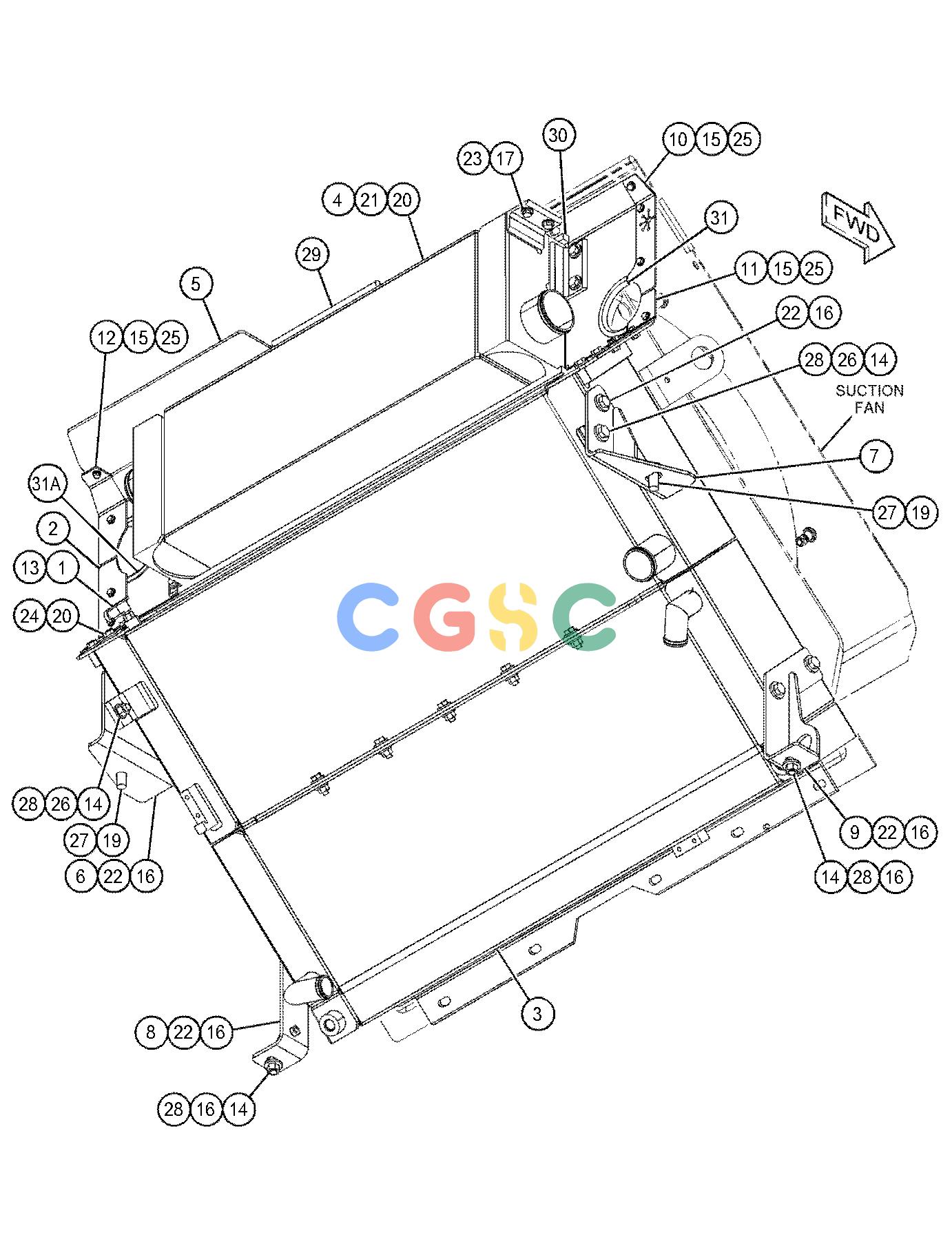

卡特零件查询（AP655F） 424-9158: RADIATOR & HYD OIL COOLER GP
广数供应链运营团队, 17 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 377-9603 | [1] | VALVE AS-FLUID SAMPLING(HYDRAULIC OIL) | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 154-9023 | [1] | VALVE-SAMPLING | |
| 2. | 438-9768 | [1] | COVER-RUBBER | |
| 3. | 441-0553Y | [1] | RADIATOR & HYD OIL COOLER GP | |
| 4. | 441-0554 | [1] | CORE AS-AFTERCOOLER | |
| 5. | 441-0555 | [1] | PLATE AS | |
| | 6V-9632M | [12] | NUT-WELD(M6X1-THD) | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 6. | 441-0561 | [1] | PLATE AS | |
| 7. | 441-0562 | [1] | PLATE AS | |
| 8. | 441-0563 | [1] | BRACKET AS | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 9. | 441-0564 | [1] | BRACKET AS | |
| 10. | 442-0612 | [1] | COVER-RUBBER | |
| 11. | 442-0613 | [1] | COVER-RUBBER | |
| 12. | 442-0615 | [1] | COVER-RUBBER | |
| 13. | 157-0670 | [1] | CAP-DUST(ENGINE COOLANT) | |
| 14. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 15. | 5C-9553M | [12] | BOLT(M6X1X16-MM) | |
| 16. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 17. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 7X-0515 | [2] | WASHER-HARD(17X35X5-MM THK) | |
| 20. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 22. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 23. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 24. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 25. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 26. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 27. | 8T-4779M | [2] | BOLT(M16X2X35-MM) | |
| 28. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 29. | 5P-7211D | | SEAL(0.3-M) | |
| 30. | 5P-5930D | | SEAL(0.91-M EACH) | |
| 31. | 6V-5746D | | TRIM(0.17-M) | |
| 31A. | 6V-5746D | | TRIM(0.2-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
