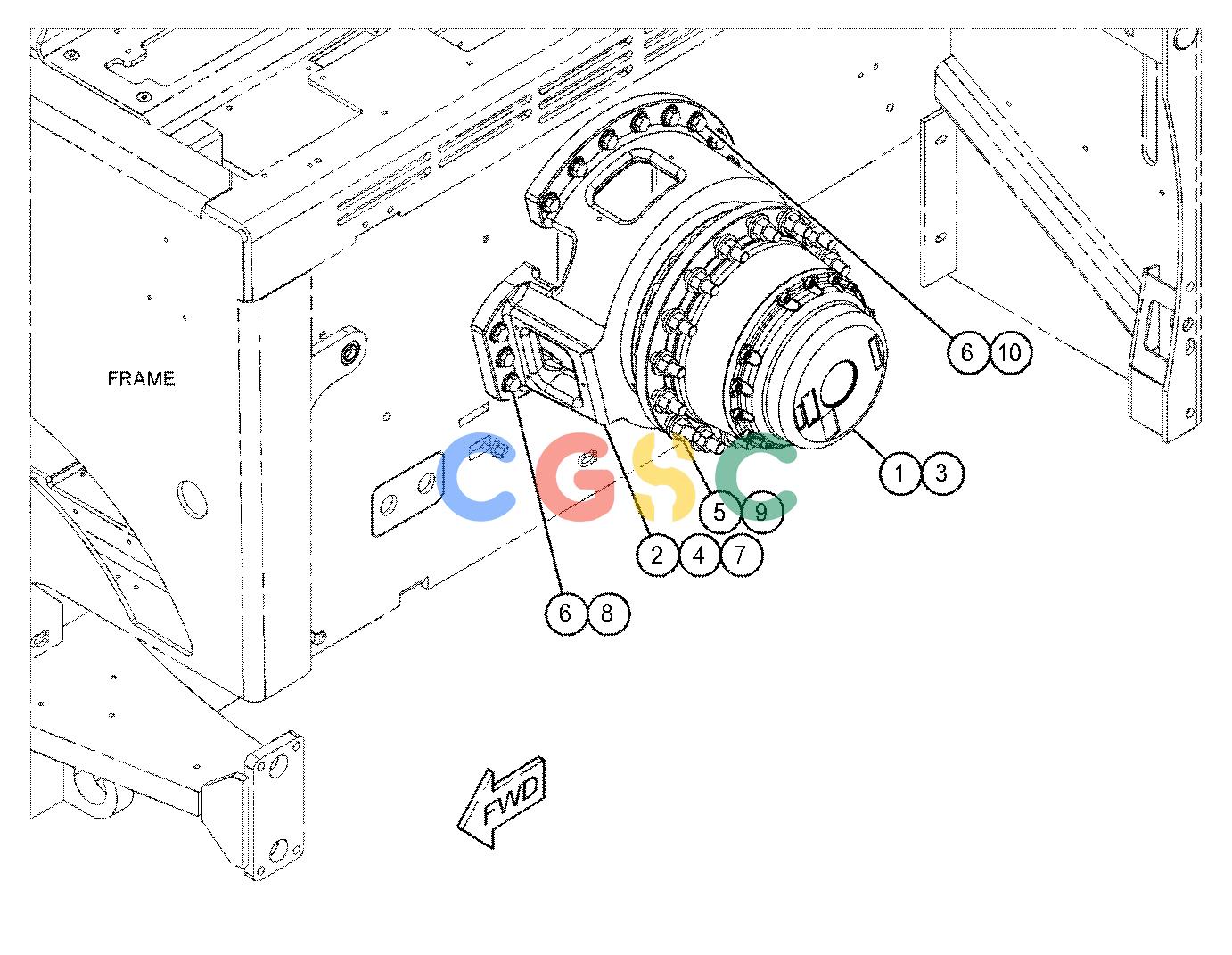

卡特零件查询（AP655F） 455-7392: DRIVE GP-FINAL
广数供应链运营团队, 17 02月, 2025，浏览：
474 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 434-4001Y | [1] | PLANETARY GP-FINAL DRIVE | |
| 2. | 434-4010 | [1] | MOUNT | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 7X-2563M | [20] | BOLT(M20X2.5X60-MM) | |
| 5. | 355-3831M | [16] | NUT(M20X1.5-THD) | |
| 6. | 8T-4122 | [18] | WASHER-HARD(17X32X3.5-MM THK) | |
| 7. | 8T-4123 | [20] | WASHER(22X35X3.5-MM THK) | |
| 8. | 8T-4193M | [15] | BOLT(M16X2X50-MM) | |
| 9. | 8T-5439 | [16] | WASHER-HARD(21.5X45X6-MM THK) | |
| 10. | 8T-7338M | [3] | BOLT(M16X2X45-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
