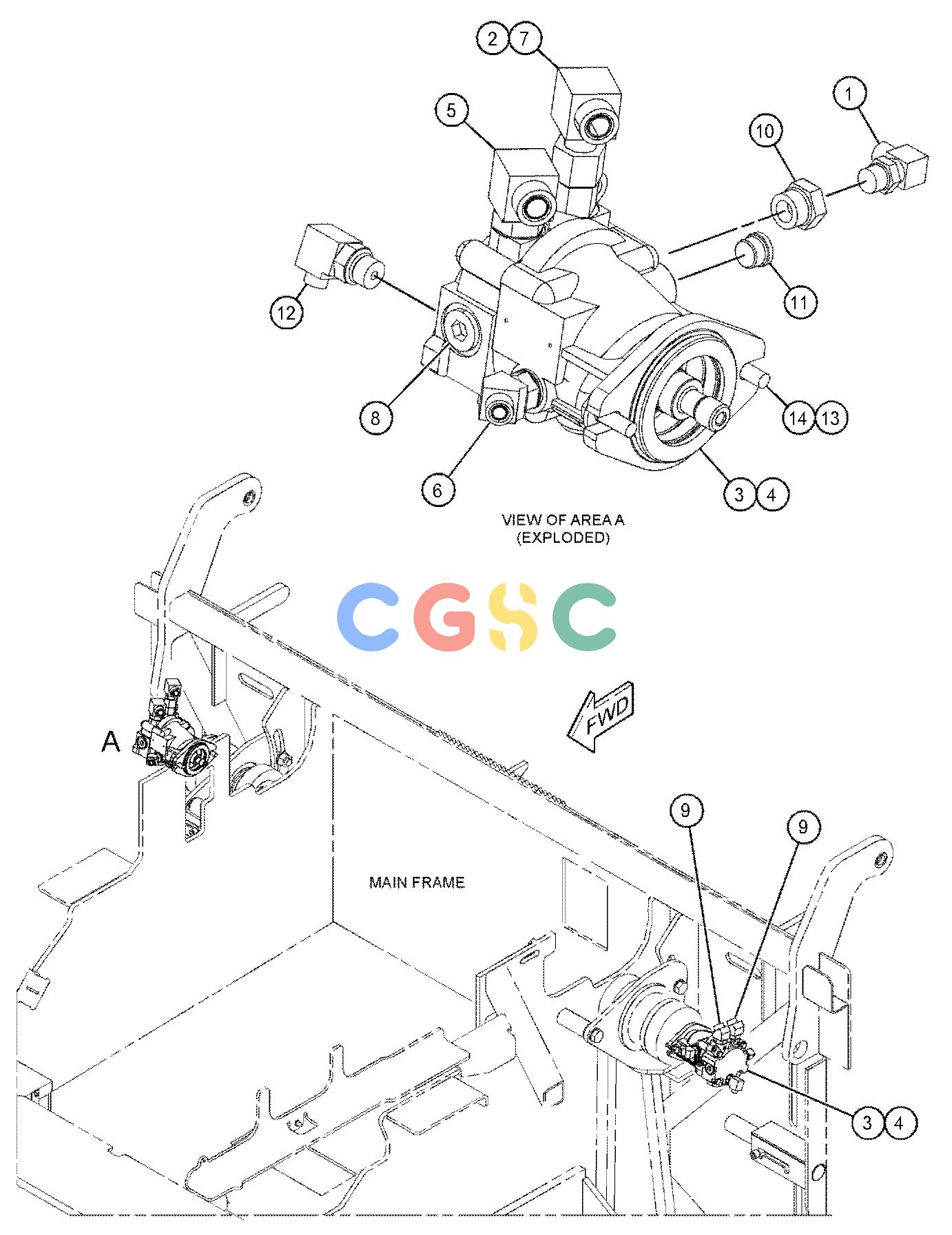

卡特零件查询（AP655F） 475-6232: KIT-FEEDER SHAFT
广数供应链运营团队, 17 02月, 2025，浏览：
947 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 131-0326 | [2] | BEARING | |
| | 101-9030 | [2] | BEARING-FLANGE | |
| | 7X-0345 | [4] | BOLT(5/8-11X1.75-IN) | |
| | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| | 8I-0797 | [2] | CAP | |
| | 205-3097 | [2] | CAP | |
| | 104-5370 | [2] | KEY-SQUARE | |
| | 1D-2328 | [2] | KEY-SQUARE | |
| | 136-9392 | [2] | KEY-SQUARE | |
| | 6V-7726M | [4] | SCREW-HEX SOCKET(M10X1.5X25-MM) | |
| | 9F-9748 | [2] | SETSCREW(3/8-16X1.25-IN) | |
| | 2H-3906 | [8] | SETSCREW-SOCKET(1/2-13X1-IN) | |
| | 031-8610 | [4] | SETSCREW-SOCKET(1/2-13X1.25-IN) | |
| | 8I-0798 | [4] | SPROCKET(10-TEETH) | |
| | 129-4543 | [4] | WASHER(65X85.7X1.6-MM THK) | |
| | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| | M | | METRIC PART |
