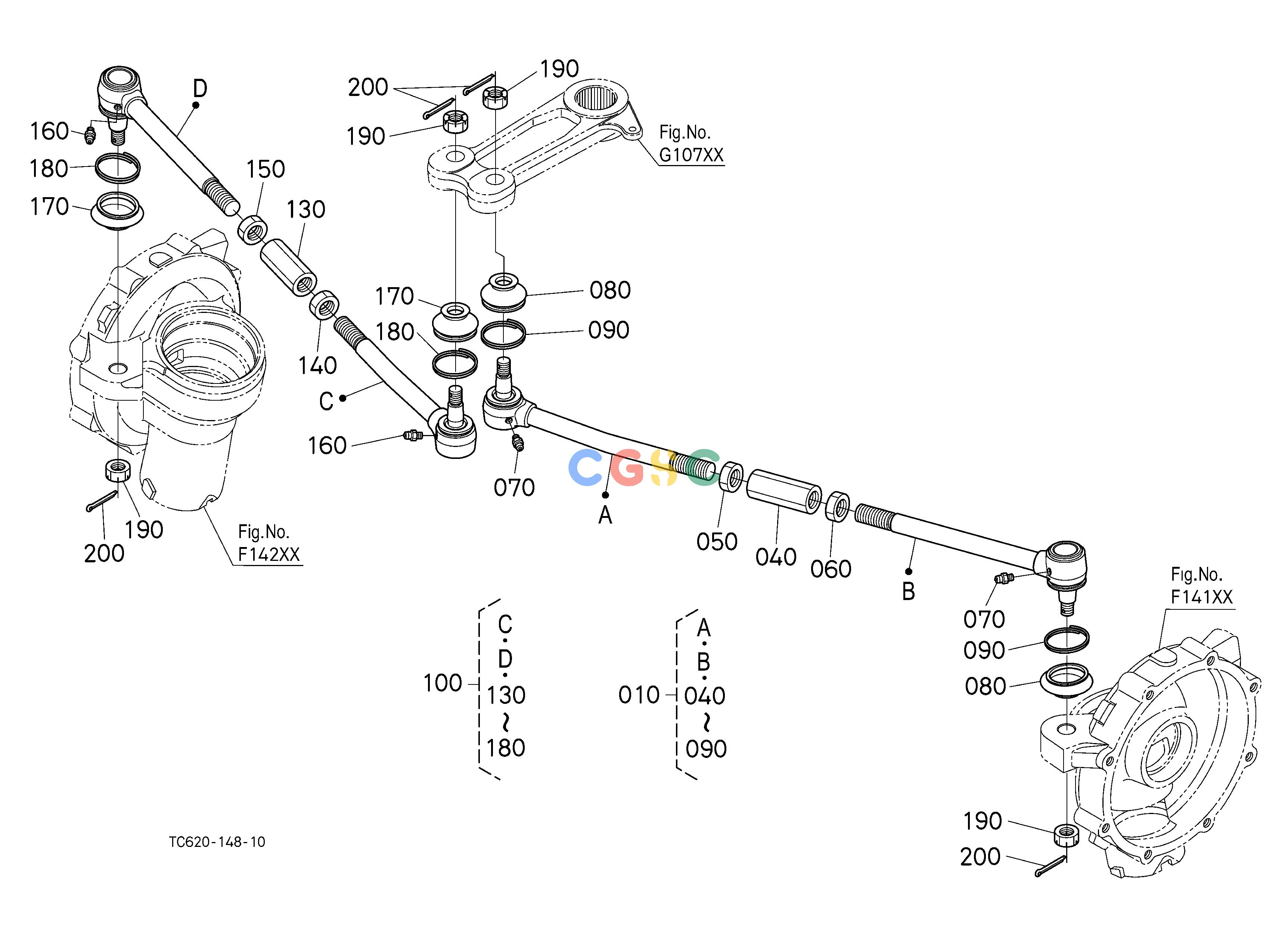

久保田零件查询G12003 STEERING LINKAGE [OLD] ## S.No.<=57110 S.No.;<=57110 STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC42013700
|
[1] |
ROD,TIE,ASSY(LH)
|
5.1700(lbs); 2.350
|
| 040. |
TC42213770
|
[1] |
TURNBUCKLE
|
0.4620(lbs); 0.210
|
| 050. |
TC42213780
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 060. |
TC42213790
|
[1] |
NUT LH
|
0.0660(lbs); 0.030
|
| 070. |
TC42213890
|
[2] |
NIPPLE,GREASE
|
0.0044(lbs); 0.002
|
| 080. |
TC42213732
|
[2] |
COVER,DUST
|
0.0220(lbs); 0.010
|
| 090. |
TC42213880
|
[2] |
RING,RETAINER
|
0.0066(lbs); 0.003
|
| 100. |
TC42013740
|
[1] |
ROD,TIE,ASSY(RH)
|
5.1700(lbs); 2.350
|
| 130. |
TC42213770
|
[1] |
TURNBUCKLE
|
0.4620(lbs); 0.210
|
| 140. |
TC42213780
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 150. |
TC42213790
|
[1] |
NUT LH
|
0.0660(lbs); 0.030
|
| 160. |
TC42213890
|
[2] |
NIPPLE,GREASE
|
0.0044(lbs); 0.002
|
| 170. |
TC42213732
|
[2] |
COVER,DUST
|
0.0220(lbs); 0.010
|
| 180. |
TC42213880
|
[2] |
RING,RETAINER
|
0.0066(lbs); 0.003
|
| 190. |
TC40362750
|
[4] |
NUT,SLOTTED
|
0.0000(lbs); 0.000
|
| 200. |
0551150328
|
[4] |
PIN,SPLIT
|
0.0044(lbs); 0.002
|
