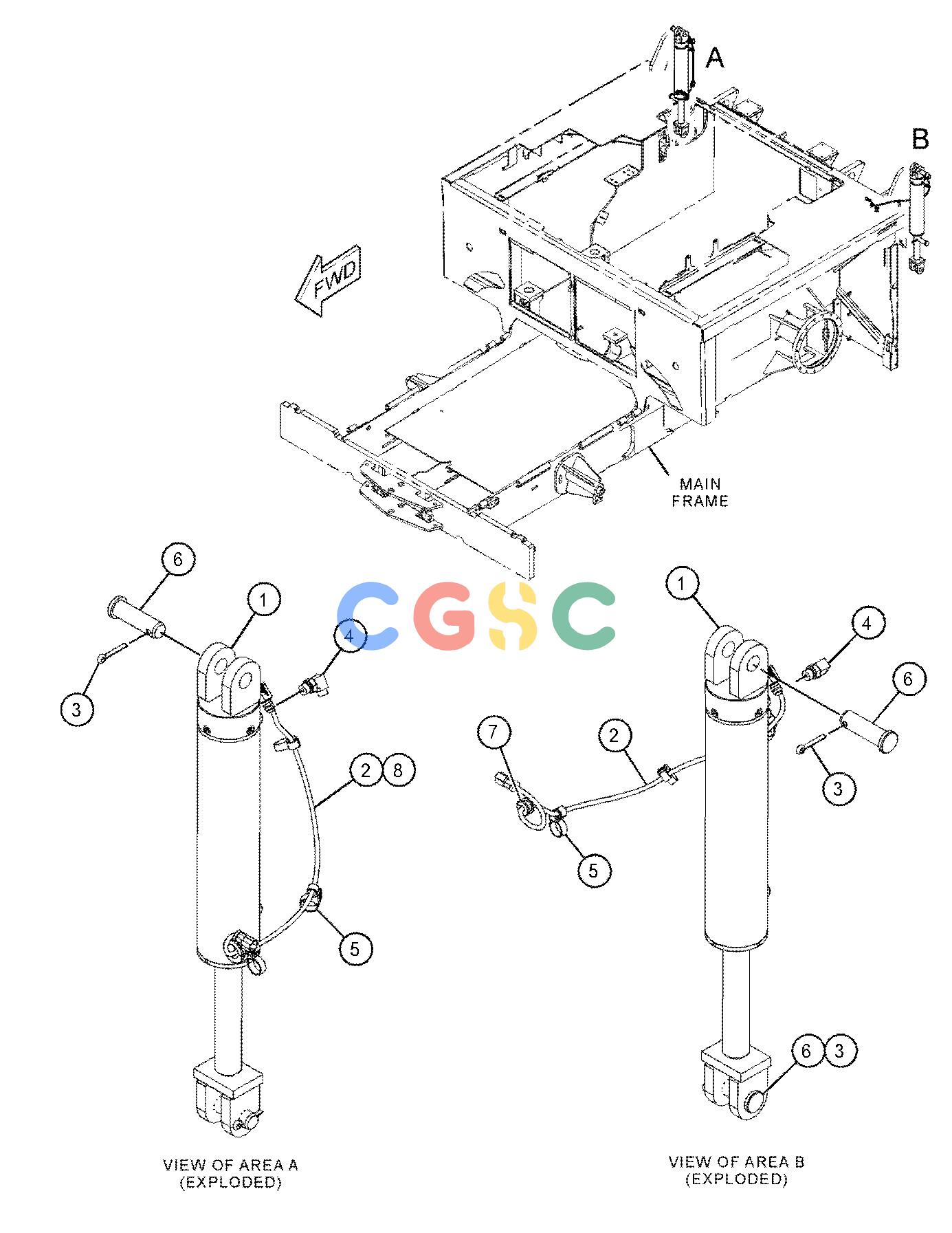

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 487-4842J | [2] | CYLINDER GP-HYDRAULIC | |
| 2. | 095-0863 | [4] | PIN-COTTER | |
| 3. | 148-8374 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8723 | [1] | ELBOW | ||
| 4. | 5B-5489 | [4] | PIN | |
| AVAILABLE REPAIR KIT(S): | ||||
| 443-4560 | [1] | KIT-SEAL | ||
| (INCLUDES WIPER SEAL, U-CUP SEAL, O-RING SEALS, BACK-UP RING, SEAL & WEAR RINGS) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
