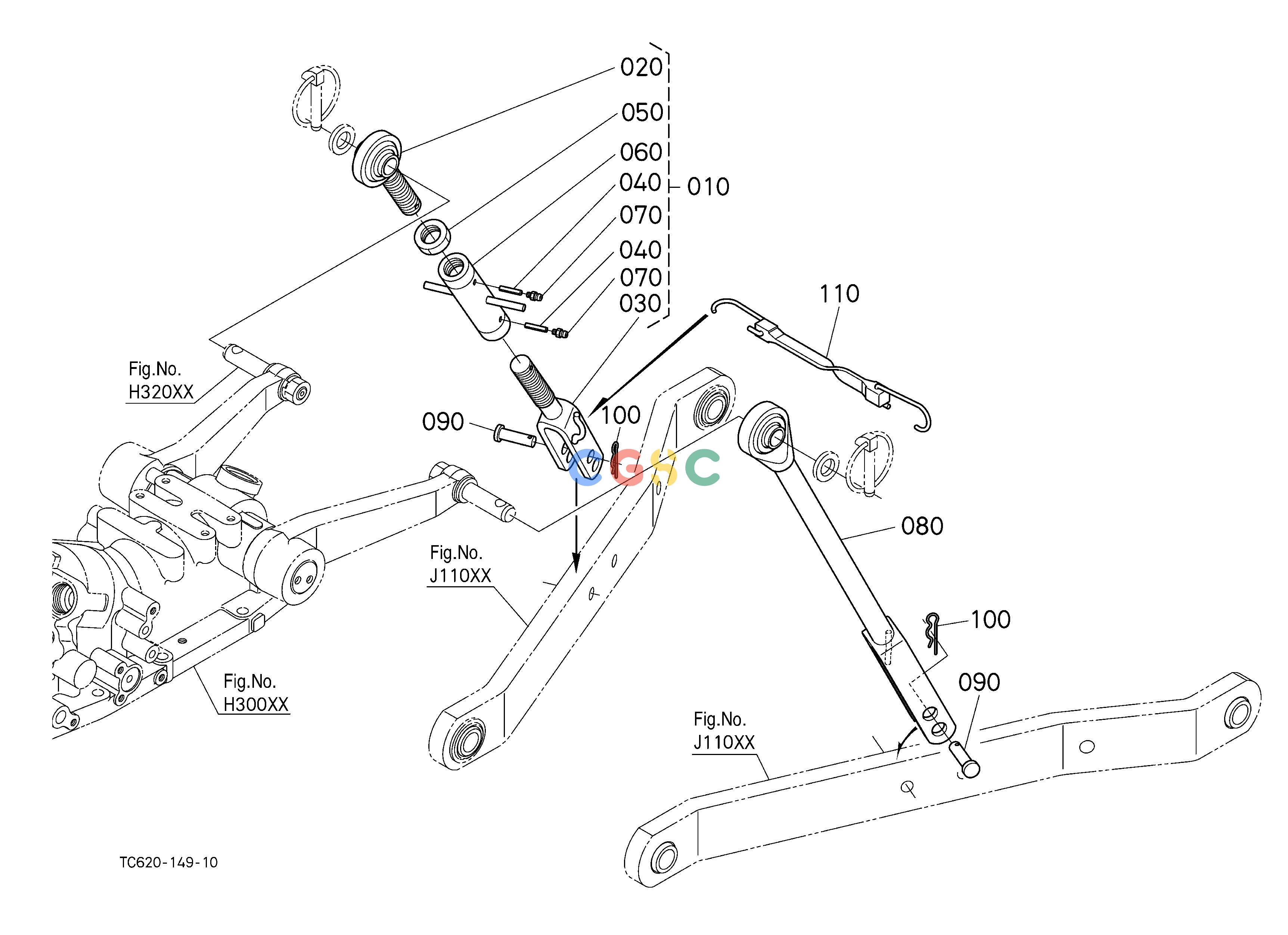

久保田零件查询J11501 LIFT ROD [OLD] ## S.No.<=53274 S.No.;<=53274 3-POINT LINKAGE/DRAWBAR/HITCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
433 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC52071560
|
[1] |
ROD,ASSY(LIFT,RH)
|
0.0000(lbs); 0.000
|
| 020. |
TC43271513
|
[1] |
ROD,LIFT UPPER
|
0.0000(lbs); 0.000
|
| 030. |
TC52071520
|
[1] |
ROD(LIFT,LOWER)
|
0.0000(lbs); 0.000
|
| 040. |
0541100322
|
[2] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 050. |
TC43271130
|
[1] |
NUT,LH
|
0.0000(lbs); 0.000
|
| 060. |
TC43271770
|
[1] |
ROD,LIFT MIDDLE
|
0.0000(lbs); 0.000
|
| 070. |
TC40342940
|
[2] |
NIPPLE,GREASE
|
0.0000(lbs); 0.000
|
| 080. |
TC52071540
|
[1] |
ROD(LIFT,LH)
|
0.0000(lbs); 0.000
|
| 090. |
3868771582
|
[2] |
PIN,LIFT ROD
|
0.1760(lbs); 0.080
|
| 100. |
0551551600
|
[2] |
PIN,SNAP
|
0.0154(lbs); 0.007
|
| 110. |
3818771756
|
[1] |
COMP.RUBBER
|
0.0990(lbs); 0.045
|
