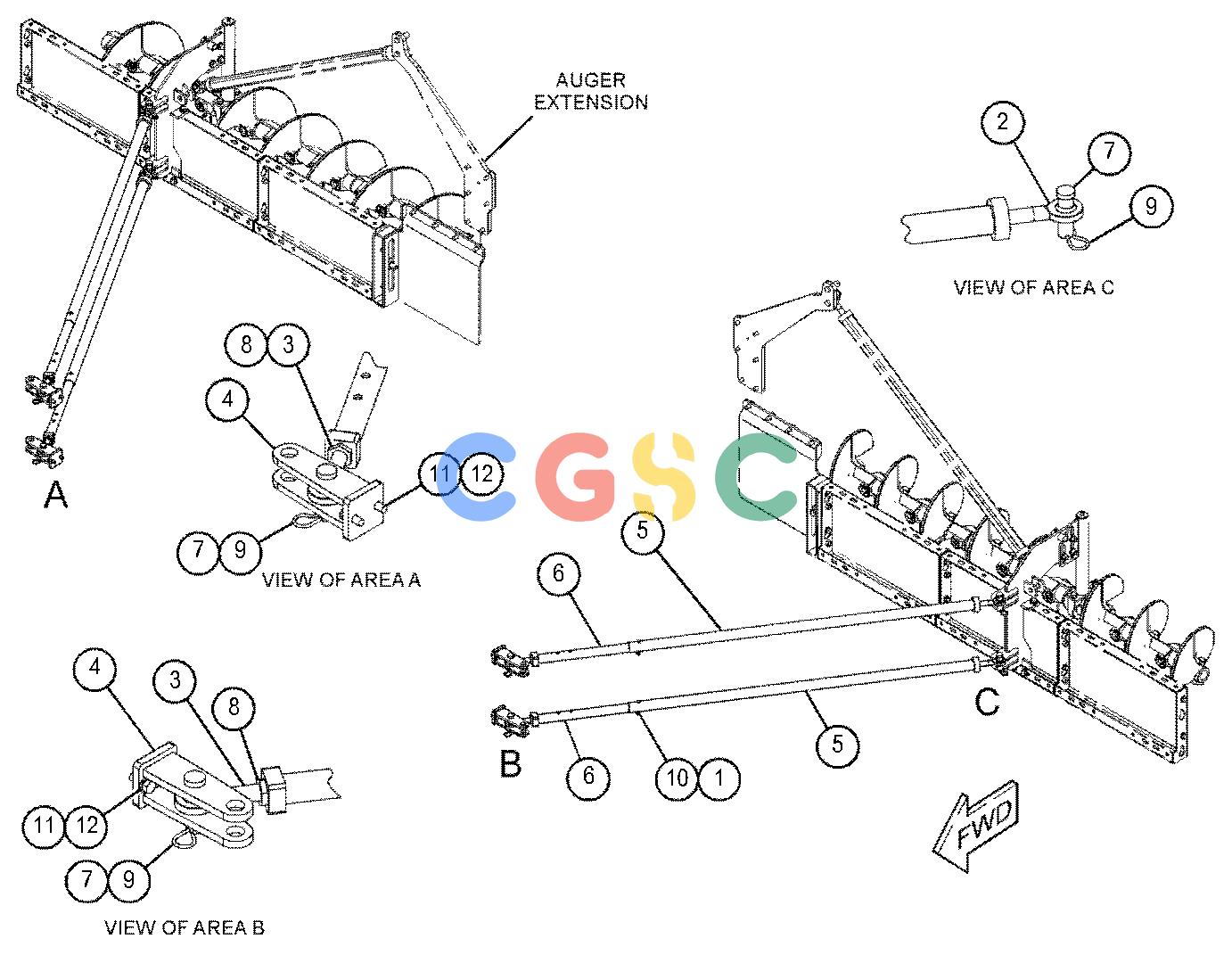

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6S-6646C | [4] | PIN-COTTER | |
| 2. | 439-6555C | [4] | BALL JOINT(LH) | |
| 3. | 439-6556C | [4] | BALL JOINT(RH) | |
| 4. | 527-6813C | [4] | BRACKET AS | |
| 5. | 527-6823C | [4] | TUBE AS | |
| 6. | 527-6824C | [4] | TUBE AS | |
| 7. | 173-3651C | [8] | PIN-CLEVIS | |
| 8. | 287-2499CM | [4] | NUT(M24X2-THD) | |
| 9. | 5P-8837C | [8] | LOCK PIN | |
| 10. | 6W-5752C | [4] | PIN | |
| 11. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 12. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
