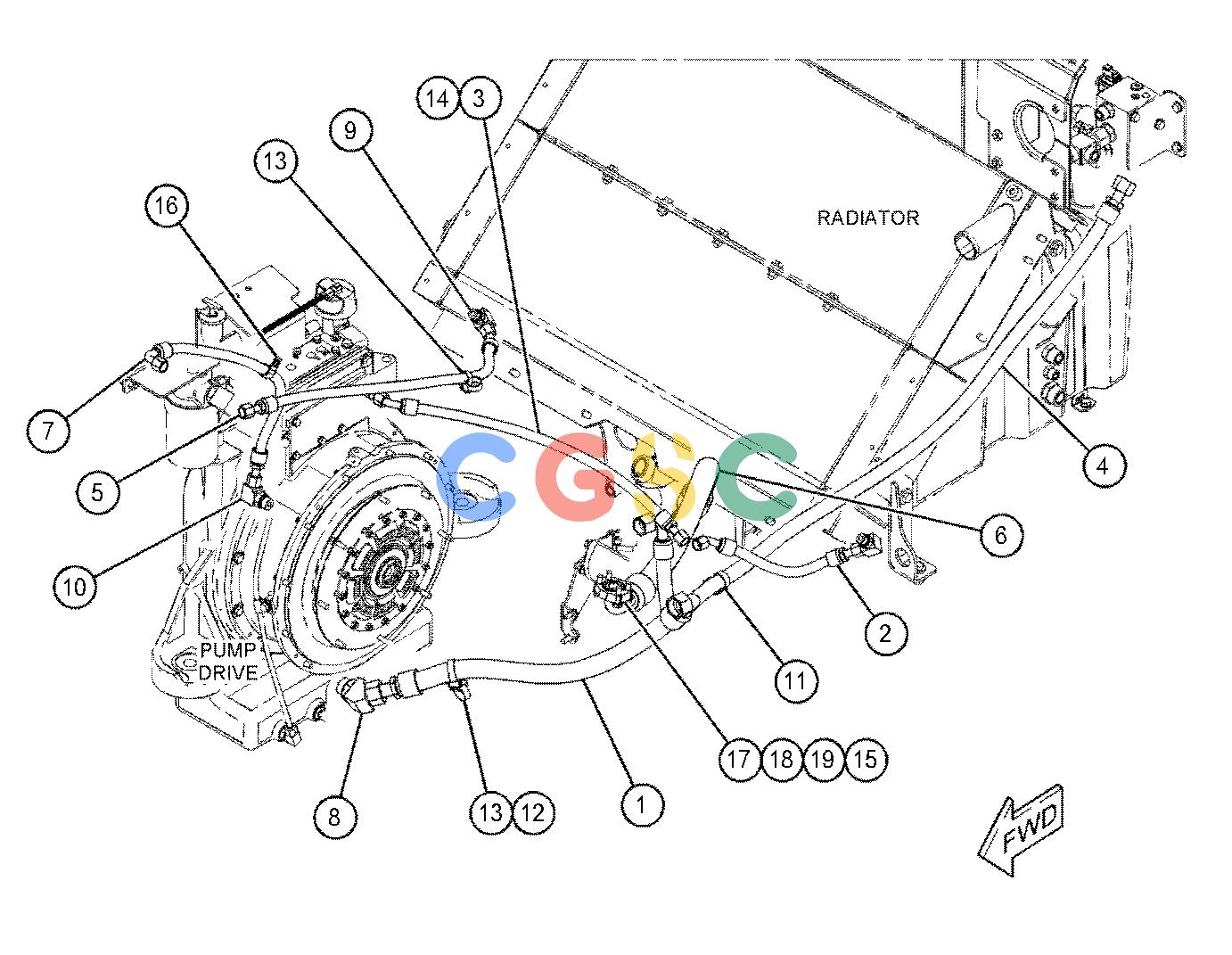

卡特零件查询（AP655F） 433-3527: LINES GP-GENERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
357 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 444-1045I | [1] | HOSE AS | |
| 2. | 444-1046I | [1] | HOSE AS | |
| 3. | 444-1048I | [1] | HOSE AS | |
| 4. | 445-5240I | [1] | HOSE AS | |
| 5. | 447-9906I | [1] | HOSE AS | |
| 6. | 447-9909I | [1] | HOSE AS | |
| 7. | 461-0729I | [1] | HOSE AS | |
| 8. | 148-8355 | [1] | ELBOW AS | |
| | 6V-9005 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 10. | 148-8372 | [1] | ELBOW AS | |
| | 6V-8721 | [1] | ELBOW | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| 11. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 12. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 13. | 204-2281 | [4] | STRAP-CABLE | |
| 14. | 385-9391 | [1] | VALVE GP-CHECK(TRANSMISSION FILTER) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 15. | 4J-0520 | [1] | SEAL-O-RING | |
| 16. | 6D-4246 | [1] | CLIP(LOOP) | |
| 17. | 8C-3206 | [2] | FLANGE-HALF | |
| 18. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
