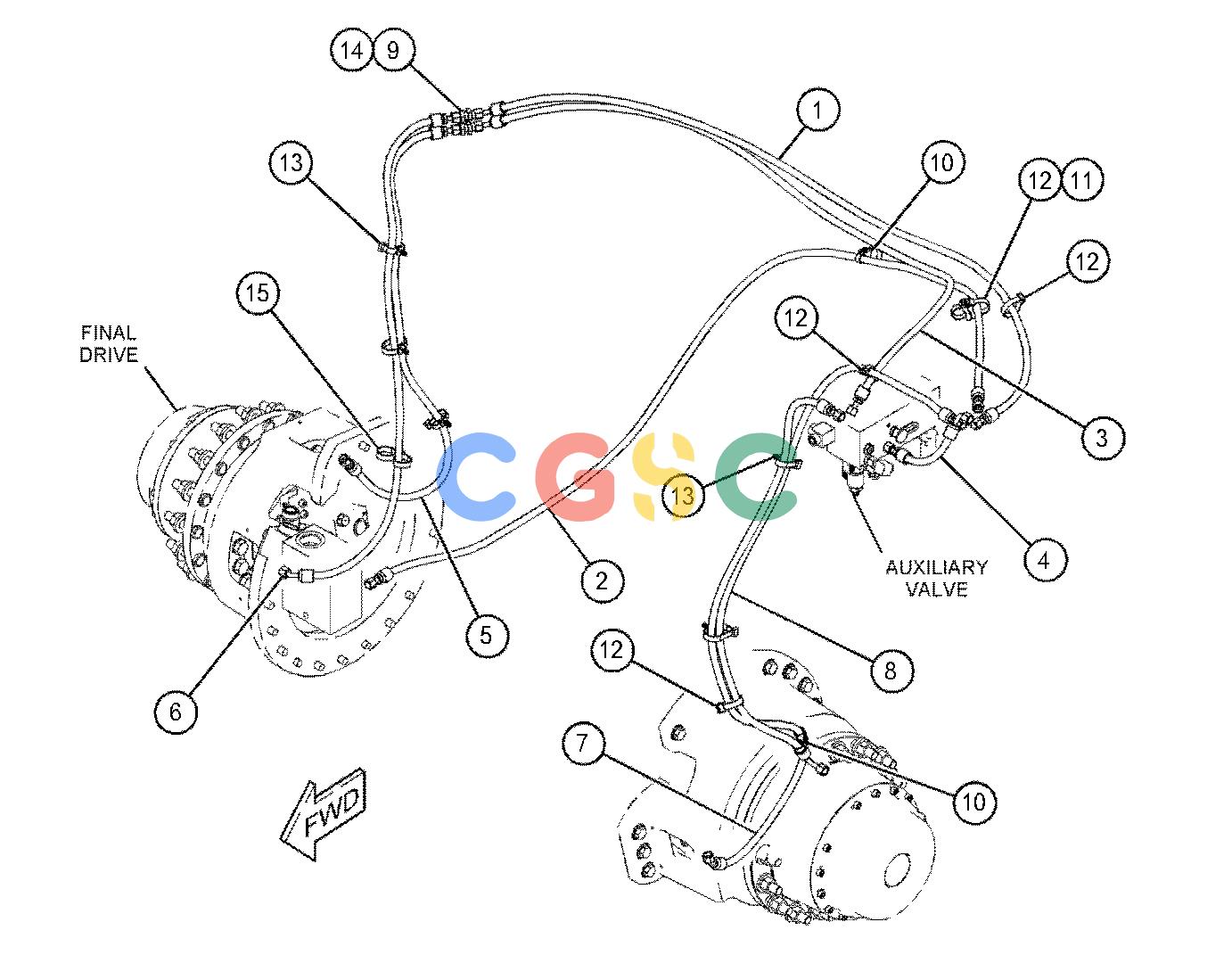

卡特零件查询（AP655F） 433-6581: LINES GP-BRAKE & SHIFT
广数供应链运营团队, 17 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 445-5253I | [1] | HOSE AS | |
| 2. | 445-5254I | [1] | HOSE AS | |
| 3. | 445-5255I | [1] | HOSE AS | |
| 4. | 445-5256I | [1] | HOSE AS | |
| 5. | 445-5266I | [1] | HOSE AS | |
| 6. | 445-5268I | [1] | HOSE AS | |
| 7. | 454-7561I | [1] | HOSE AS | |
| 8. | 454-7562I | [1] | HOSE AS | |
| 9. | 149-5452 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 10. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 11. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 12. | 204-2281 | [6] | STRAP-CABLE | |
| 13. | 327-0325 | [5] | STRAP-CABLE | |
| 14. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 15. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
