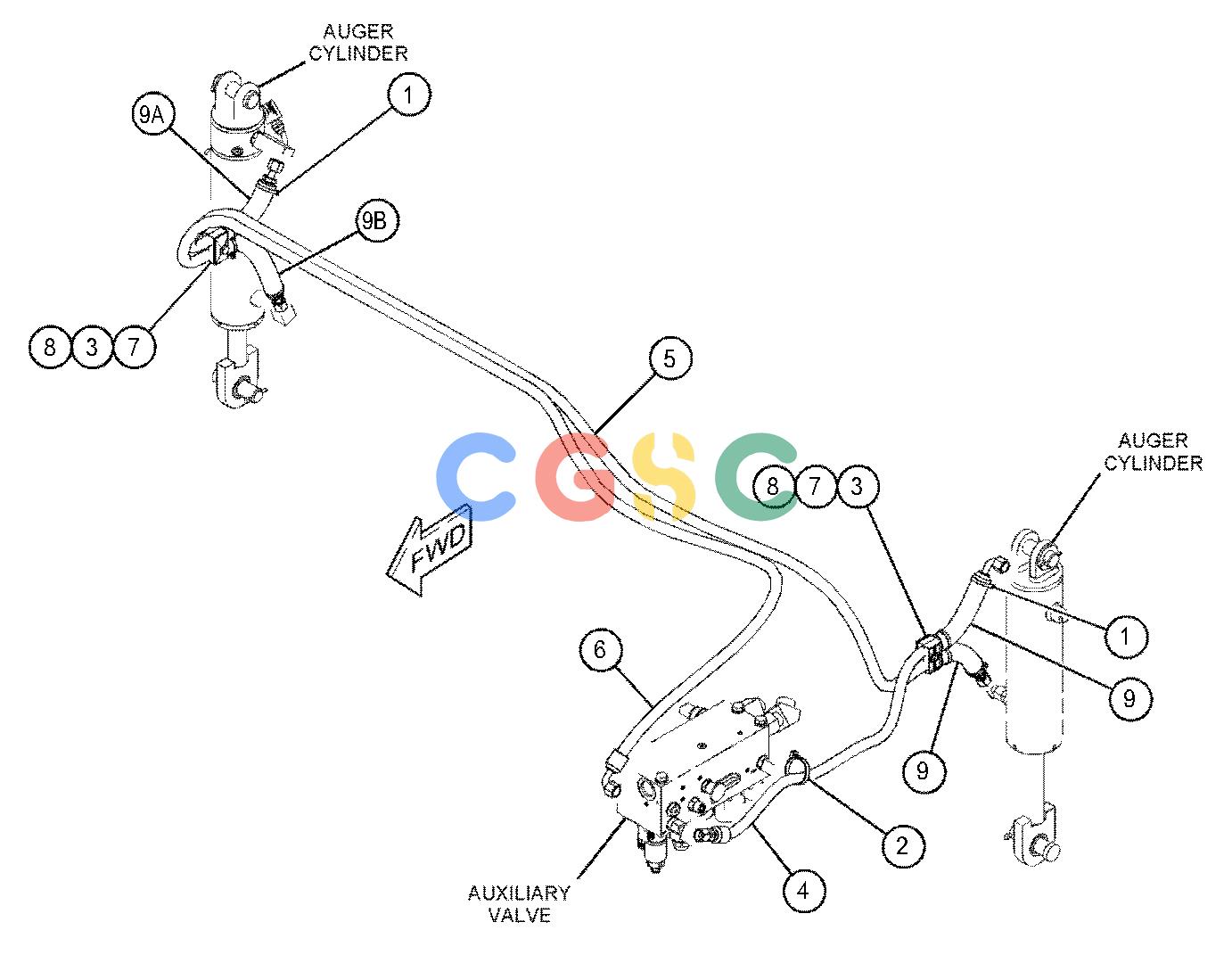

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 102-8703 | [2] | PLATE-COVER | |
| 4. | 389-9822I | [1] | HOSE AS | |
| 5. | 447-0621I | [1] | HOSE AS | |
| 6. | 447-0622I | [1] | HOSE AS | |
| 7. | 154-4880 | [4] | CLAMP-HALF | |
| 8. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 9. | 154-1420E | SLEEVE(14.5-CM EACH) | ||
| 9A. | 154-1420E | SLEEVE(12.5-CM) | ||
| 9B. | 154-1420E | SLEEVE(19.5-CM) | ||
| E | ORDER BY THE CENTIMETER | |||
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
