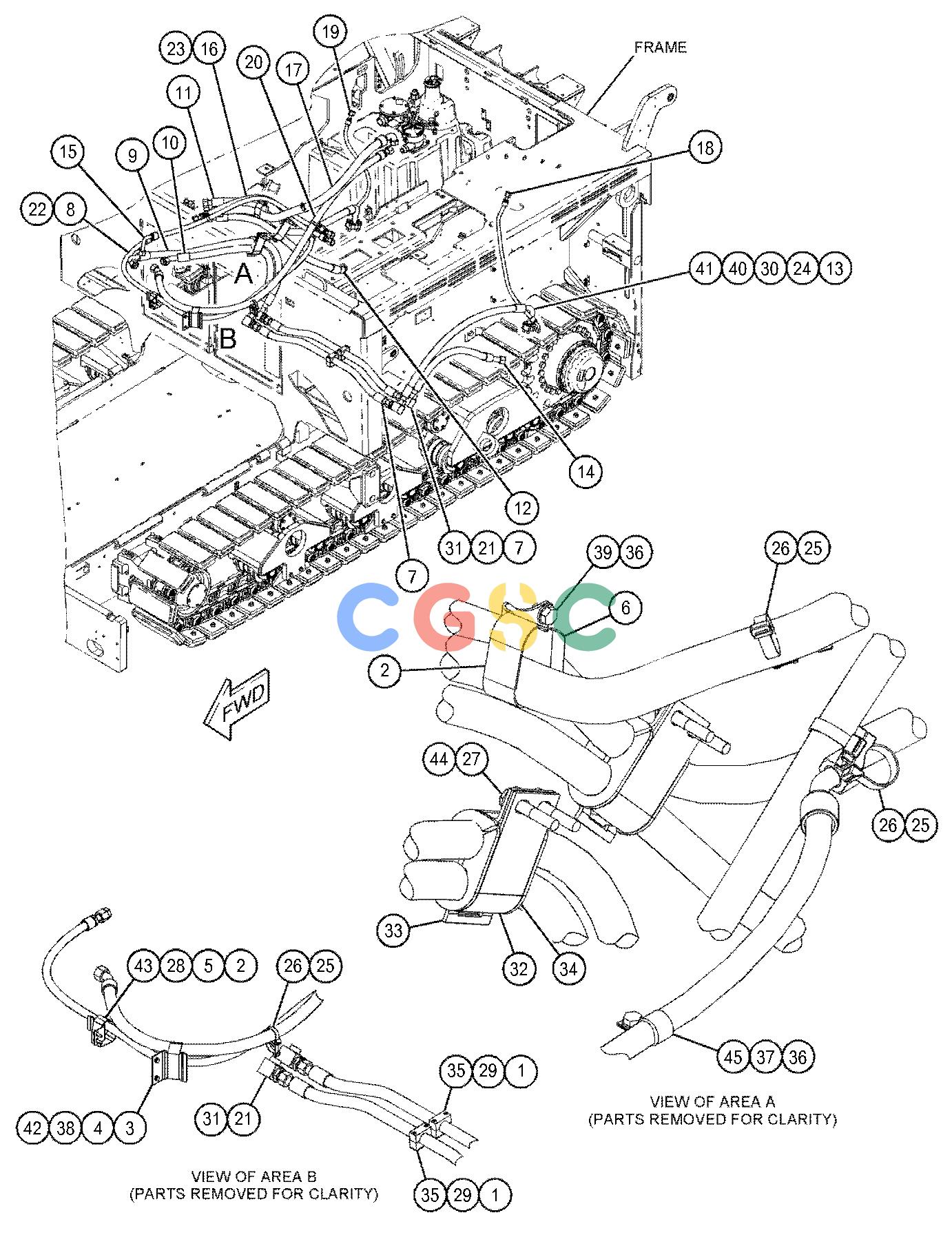

卡特零件查询（AP655F） 433-3531: LINES GP-PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7951 | [2] | PLATE | |
| 2. | 364-4569 | [2] | STRAP | |
| 3. | 364-4570 | [1] | STRAP | |
| 4. | 428-7062I | [1] | HOSE AS | |
| 5. | 428-7076 | [1] | BRACKET | |
| 6. | 441-6508 | [1] | BRACKET | |
| 7. | 445-5276I | [1] | HOSE AS | |
| 8. | 445-5299 | [1] | BRACKET | |
| 9. | 445-5300I | [2] | HOSE AS | |
| 10. | 447-0454I | [1] | HOSE AS | |
| 11. | 447-0604I | [1] | HOSE AS | |
| 12. | 447-0605I | [1] | HOSE AS | |
| 13. | 447-0606I | [1] | HOSE AS | |
| 14. | 447-0607I | [1] | HOSE AS | |
| 15. | 447-0610I | [1] | HOSE AS | |
| 16. | 447-0611I | [1] | HOSE AS | |
| 17. | 447-0612I | [1] | HOSE AS | |
| 18. | 447-0614I | [1] | HOSE AS | |
| 19. | 454-7563I | [1] | HOSE AS | |
| 20. | 454-7564I | [1] | HOSE AS | |
| 21. | 454-7565I | [1] | HOSE AS | |
| 22. | 457-2337I | [1] | HOSE AS | |
| 23. | 164-5577 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING(ORFS) | |
| | 6V-8984 | [1] | ELBOW | |
| 24. | 164-5581 | [1] | PLUG AS | |
| | 6V-9511 | [1] | PLUG(1-3/16-12-THD)(ORFS) | |
| | 6V-9746 | [1] | SEAL-O-RING(ORFS) | |
| 25. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 26. | 1P-3703 | [5] | SEAL-RECTANGULAR | |
| 27. | 1P-5766 | [4] | FLANGE-HALF(SPLIT) | |
| 28. | 200-6345 | [3] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 29. | 204-2281 | [8] | STRAP-CABLE | |
| 30. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 31. | 9X-6495 | [8] | BOLT-12 POINT HEAD(7/16-14X1.75-IN) | |
| 32. | 5V-6152 | [4] | CLAMP | |
| 33. | 6V-0400 | [6] | FLANGE-HALF(SPLIT) | |
| 34. | 6V-9172 | [4] | NUT(1-7/16-12-THD)(BULKHEAD) | |
| 35. | 7G-5984 | [2] | CLIP(TAB) | |
| 36. | 7G-5985 | [2] | CLIP(SLOT) | |
| 37. | 7G-5986 | [2] | GROMMET | |
| 38. | 7X-2535M | [4] | BOLT(M6X1X60-MM)(HEX HEAD) | |
| 39. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 40. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM)(HEX HEAD) | |
| 42. | 8T-4182M | [4] | BOLT(M10X1.5X45-MM)(HEX HEAD) | |
| 43. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM)(HEX HEAD) | |
| 44. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM)(HEX HEAD) | |
| 45. | 8T-4194M | [12] | BOLT(M12X1.75X50-MM) | |
| 46. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 47. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 48. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM)(HEX HEAD) | |
| 49. | 8T-5360 | [8] | WASHER(12X22.5X2.5-MM THK) | |
| 50. | 9X-8250 | [1] | CLIP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
