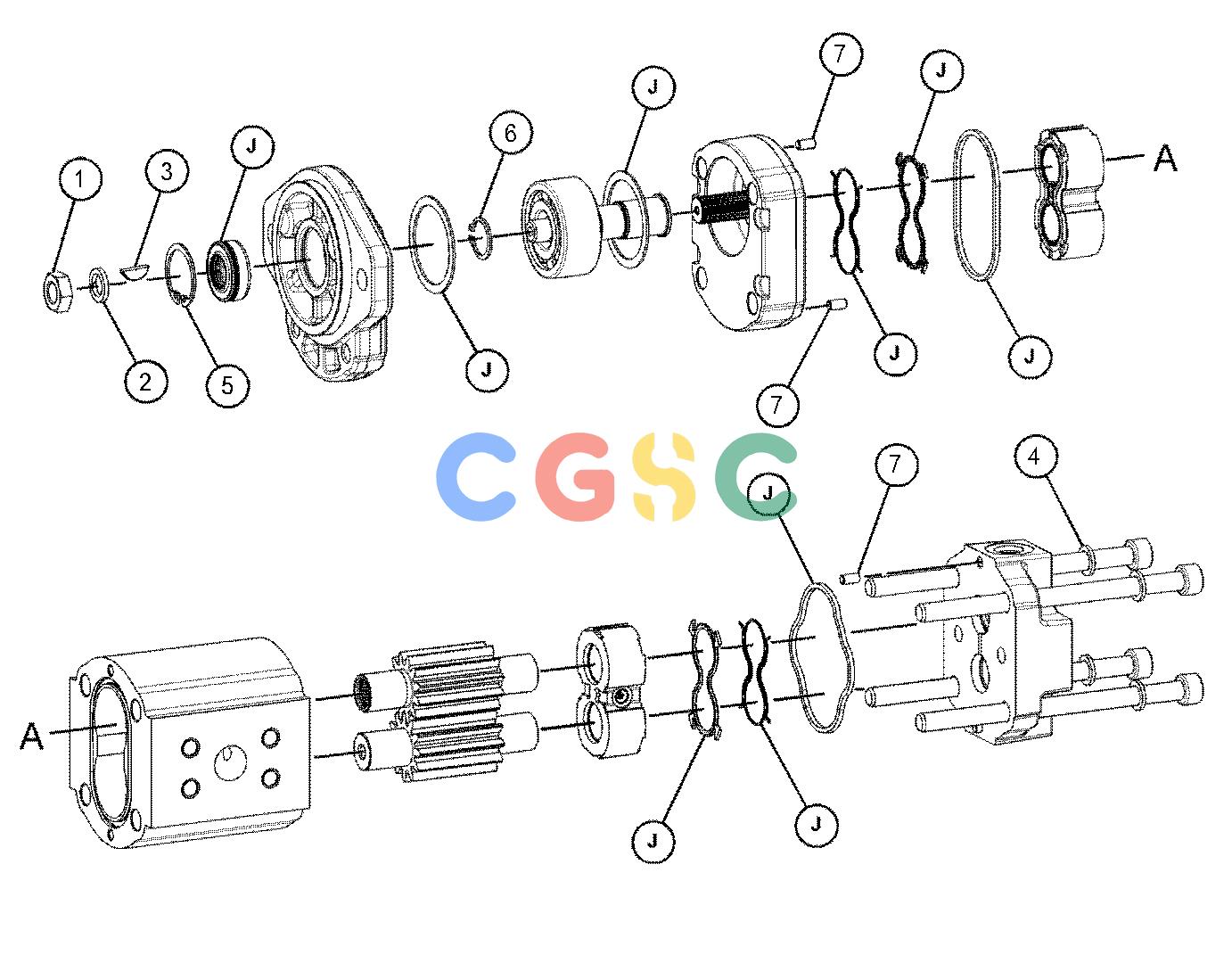

卡特零件查询（AP655F） 423-3197: MOTOR GP-GEAR
广数供应链运营团队, 17 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 160-8499M | [1] | NUT(M12X1.5-THD) | |
| 2. | 9T-2005 | [1] | LOCKWASHER | |
| 3. | 3E-4333 | [1] | KEY-WOODRUFF | |
| 4. | 7X-0608 | [4] | WASHER-HARD(10.2X16X2-MM THK) | |
| 5. | 095-0936J | [1] | RING-RETAINING | |
| 6. | 095-0919 | [1] | RING-RETAINING | |
| 7. | 150-5785 | [4] | DOWEL | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 380-8573J | [1] | KIT-SEAL | |
| | | | (INCLUDES SEALS & PARTS MARKED 'J' IN THE GRAPHIC) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
