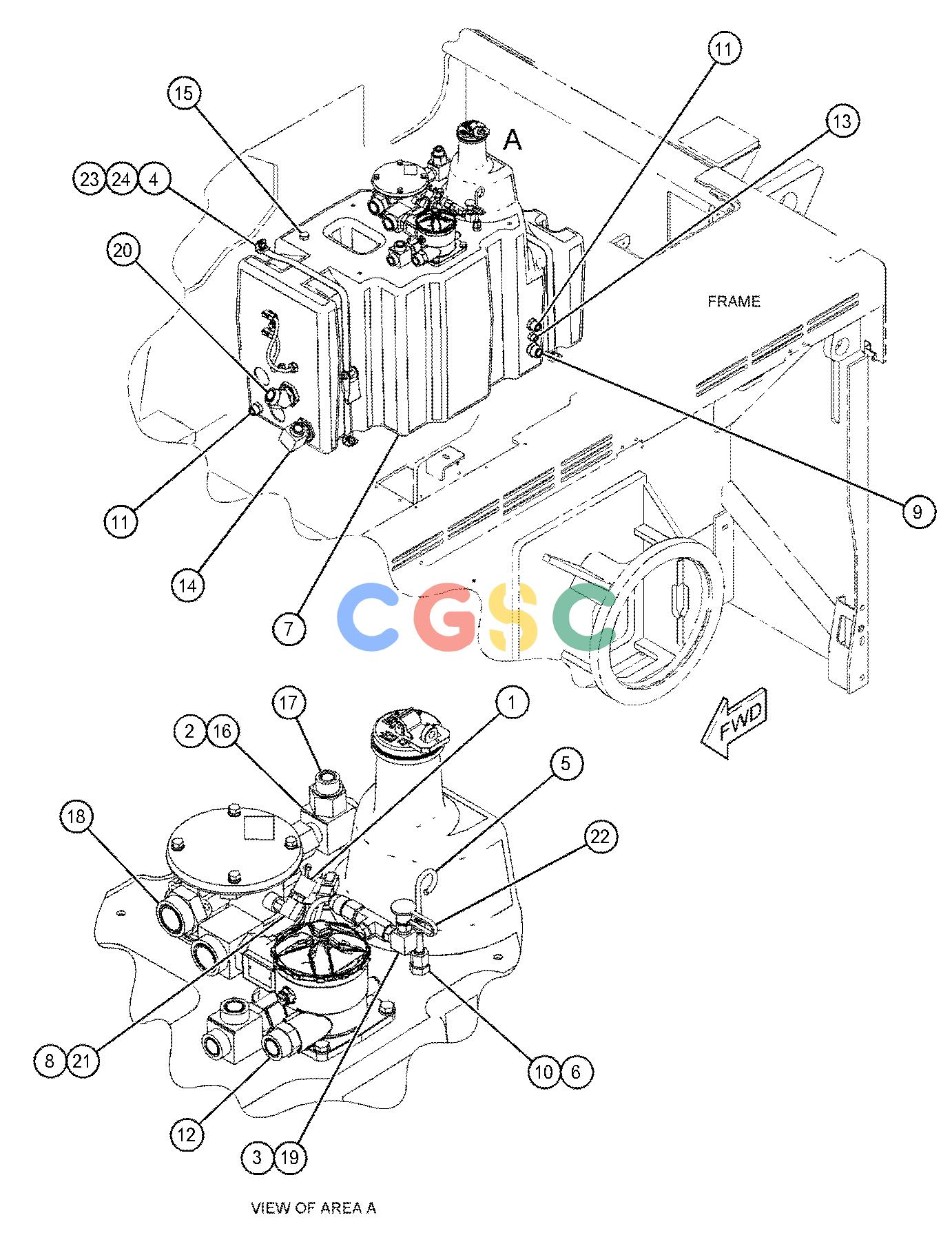

卡特零件查询（AP655F） 424-9136: TANK & MTG GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
377 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3T-3727 | [1] | SWITCH AS-PRESSURE(HYDRAULIC OIL RETURN) | |
| 2. | 153-6265 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8C-3323 | [1] | CONNECTOR | |
| 3. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 4. | 326-6533 | [2] | STRAP AS | |
| 5. | 330-4508 | [1] | GAUGE-OIL LEVEL (DIPSTICK) | |
| 6. | 332-2624 | [1] | TUBE AS | |
| 7. | 396-7141Y | [1] | TANK GP-HYDRAULIC | |
| 8. | 002-0639 | [1] | ADAPTER-PIPE | |
| 9. | 148-8317 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 10. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 11. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 12. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 13. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 14. | 148-8356 | [1] | ELBOW AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 6V-9009 | [1] | ELBOW | |
| 15. | 148-8410 | [1] | PLUG AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 16. | 148-8429 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9840 | [1] | TEE-SWIVEL | |
| 17. | 153-6236 | [1] | REDUCER AS | |
| | 6V-8946 | [1] | REDUCER | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 18. | 156-4283 | [1] | CONNECTOR AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 19. | 164-6874 | [1] | FITTING AS-ELBOW(QUICK DISCONNECT, MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 085-7356 | [1] | FITTING | |
| 20. | 204-9379 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 204-9378 | [1] | ELBOW | |
| 21. | 3B-6552 | [1] | ELBOW-PIPE | |
| 22. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 23. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
