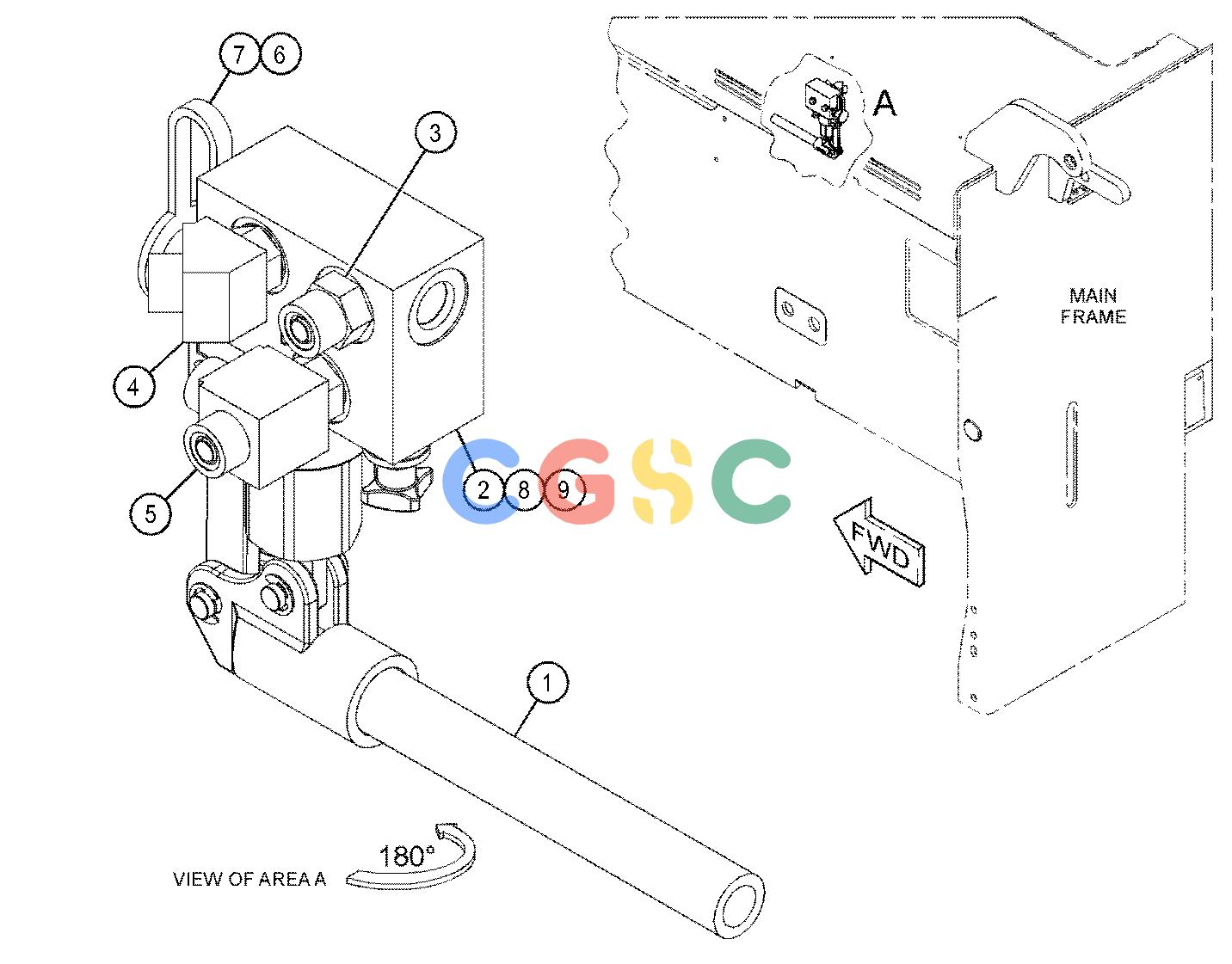

卡特零件查询（AP655F） 433-3521: VALVE & MTG GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
636 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 133-6035 | [1] | PIPE | |
| 2. | 396-7167Y | [1] | PUMP & VALVE GP-BRAKE | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 5. | 148-8435 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8781 | [1] | TEE | |
| 6. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 7. | 6V-0852 | [1] | CAP-DUST | |
| 8. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
