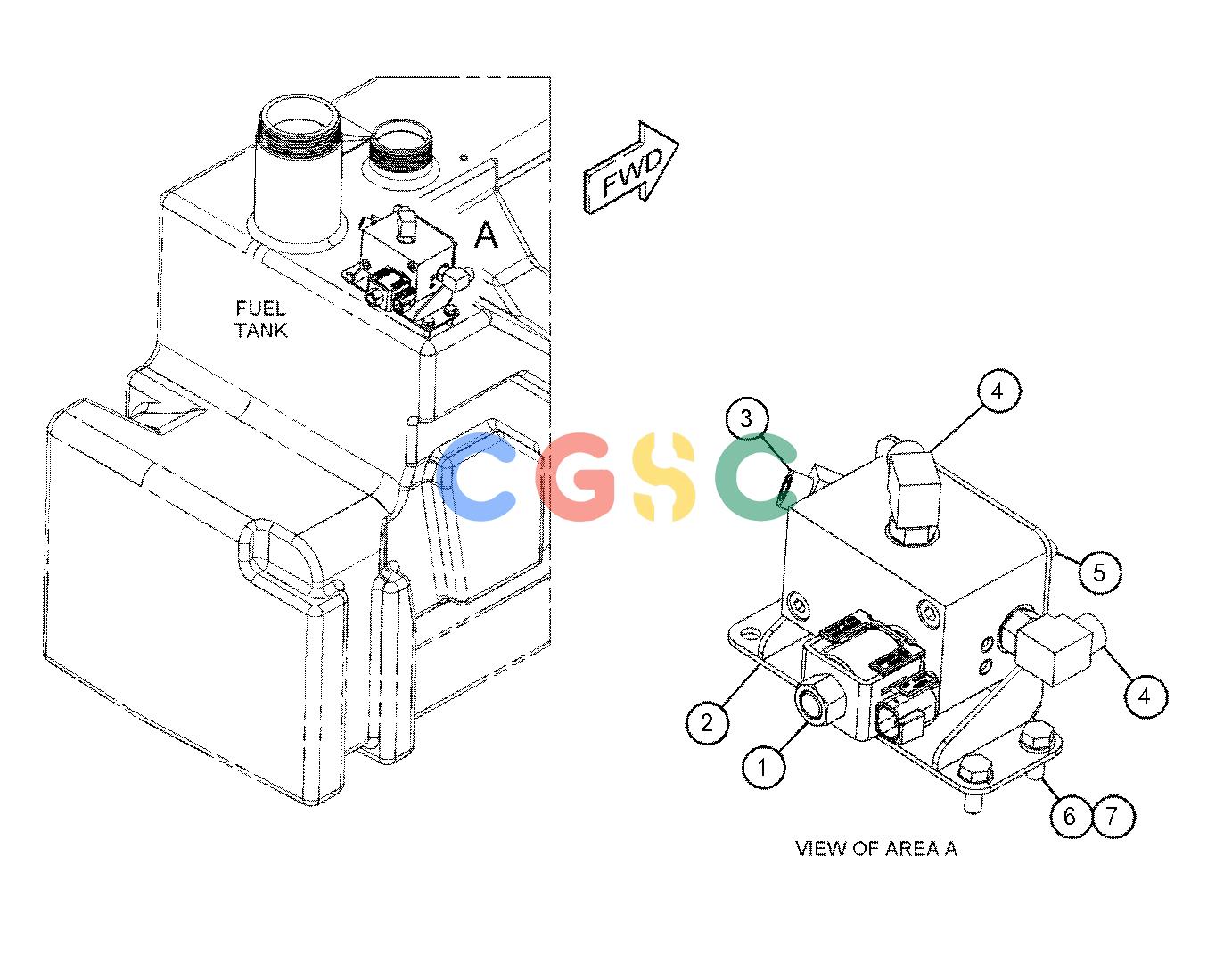

卡特零件查询（AP655F） 433-6614: VALVE & MTG GP-FLOW CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 433-6599Y | [1] | VALVE GP-FLOW CONTROL(PAVER VENTILATION MOTOR) | |
| 2. | 441-4357 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 3. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 4. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 5. | 6V-8213M | [2] | BOLT-SOCKET HEAD(M8X1.25X70-MM) | |
| 6. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 7. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
