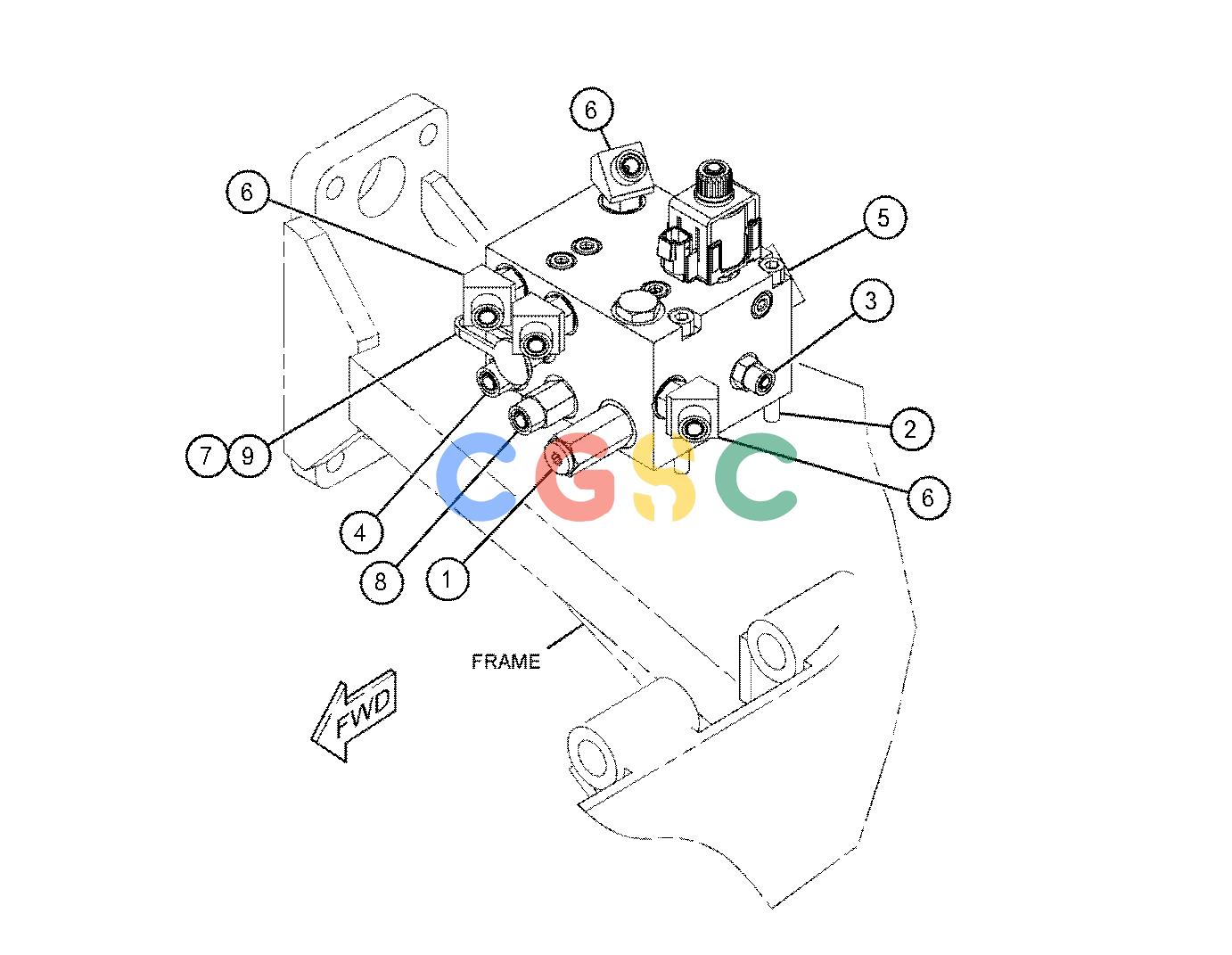

卡特零件查询（AP655F） 433-6627: VALVE GP-FLOW DIVIDER
广数供应链运营团队, 17 02月, 2025，浏览：
983 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 397-4092Y | [1] | VALVE GP-FLOW DIVIDER(FRONT WHEEL ASSIST) | |
| 2. | 101-7400M | [3] | BOLT-SOCKET HEAD(M10X1.5X110-MM) | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 5. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8354 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 7. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 8. | 164-5608 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-1687 | [1] | CONNECTOR | |
| 9. | 6V-0852 | [1] | CAP-DUST | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
