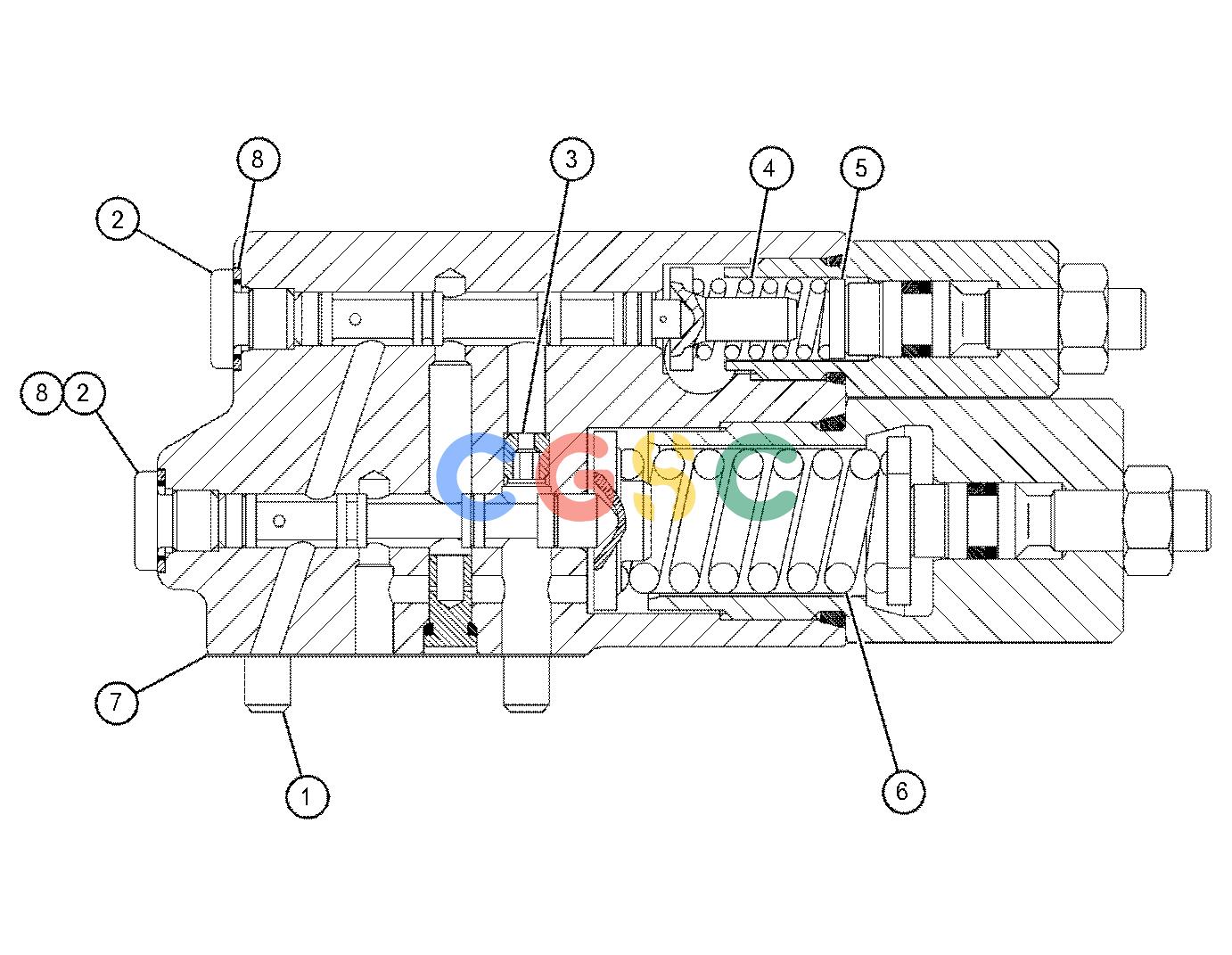

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-8442M | [4] | BOLT-SOCKET HEAD(M6X1X30-MM) | |
| 2. | 6E-6527 | [2] | PLUG | |
| 3. | 201-0780 | [1] | ORIFICE | |
| 4. | 193-3087 | [1] | SPRING | |
| 5. | 6E-3272 | [1] | SEAT | |
| 6. | 6E-3276 | [1] | SPRING | |
| 7. | 280-7870 | [1] | GASKET | |
| 8. | 6E-6528 | [2] | SEAL | |
| M | METRIC PART | |||
广数供应链运营团队, 17 02月, 2025，浏览： 339 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-8442M | [4] | BOLT-SOCKET HEAD(M6X1X30-MM) | |
| 2. | 6E-6527 | [2] | PLUG | |
| 3. | 201-0780 | [1] | ORIFICE | |
| 4. | 193-3087 | [1] | SPRING | |
| 5. | 6E-3272 | [1] | SEAT | |
| 6. | 6E-3276 | [1] | SPRING | |
| 7. | 280-7870 | [1] | GASKET | |
| 8. | 6E-6528 | [2] | SEAL | |
| M | METRIC PART | |||
