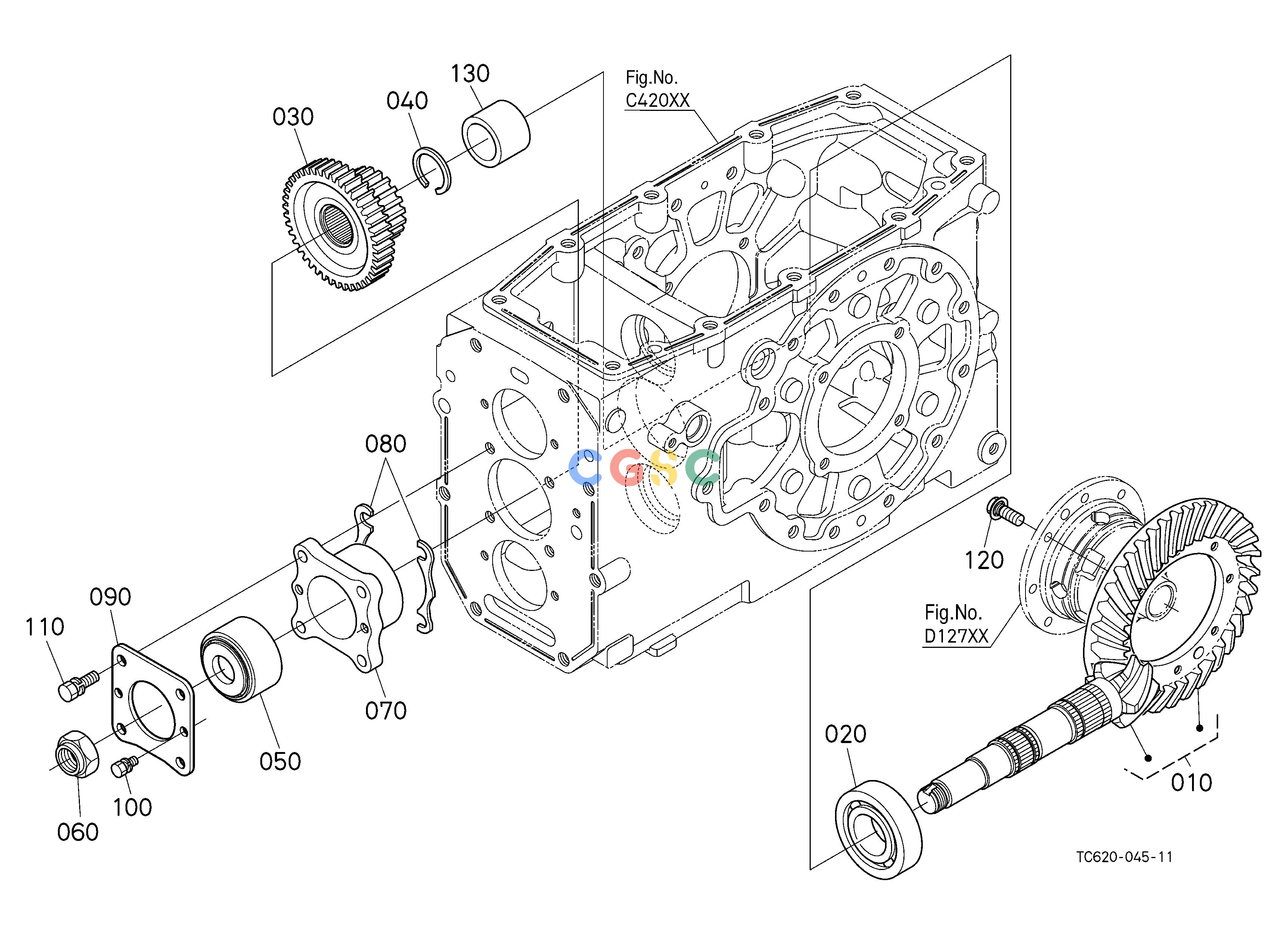

久保田零件查询D12503 SPIRAL BEVEL PINION CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
545 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC41299340
|
[1] |
GEAR,BEVEL,ASSY SPIR
|
13.2000(lbs); 6.000
|
| 020. |
3407022740
|
[1] |
BEARING,ROLLER
|
1.1220(lbs); 0.510
|
| 030. |
TC62022050
|
[1] |
GEAR(19-42,RANGE)
|
0.0000(lbs); 0.000
|
| 040. |
T106022882
|
[1] |
CIR-CLIP,EXTERNAL 32.5 SHUTTLE
|
0.0110(lbs); 0.005
|
| 050. |
TD17022720
|
[1] |
BEARING,TAPER-ROLLER
|
1.3200(lbs); 0.600
|
| 060. |
TC40223250
|
[1] |
NUT(22)
|
0.0000(lbs); 0.000
|
| 070. |
TC62022160
|
[1] |
CASE,BEARING
|
0.0000(lbs); 0.000
|
| 070. |
TC40222162
|
[1] |
CASE,BEARING
|
0.0000(lbs); 0.000
|
| 080. |
TC40222610
|
[2] |
SHIM(0.5,6SBP)
|
0.0000(lbs); 0.000
|
| 080. |
TC40222620
|
[4] |
SHIM(0.2,6SBP)
|
0.0000(lbs); 0.000
|
| 080. |
TC40222630
|
[2] |
SHIM(0.1,6SBP)
|
0.0000(lbs); 0.000
|
| 090. |
TC40222170
|
[1] |
COVER,BEARING
|
0.0000(lbs); 0.000
|
| 100. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 110. |
0113351035
|
[4] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
| 120. |
TC40243870
|
[8] |
BOLT,UBS
|
0.0000(lbs); 0.000
|
| 130. |
TC62015140
|
[1] |
COLLAR(SBP,ST)
|
0.0000(lbs); 0.000
|
