卡特零件查询（AP655F） 396-7156: VALVE GP-COUNTERBALANCE
广数供应链运营团队, 17 02月, 2025，浏览：
793 次

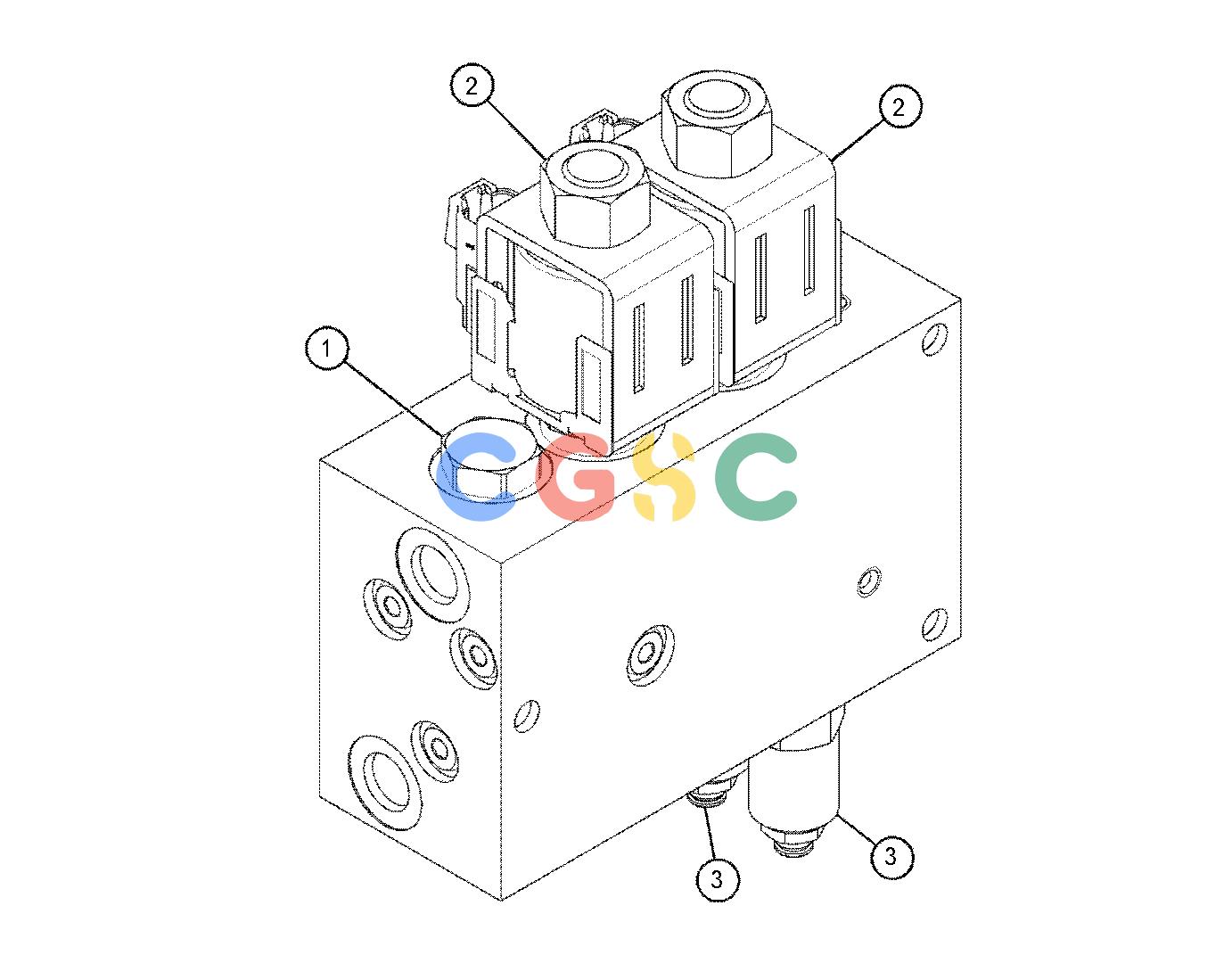

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 346-9503 | [2] | KIT-CHECK VALVE | |
| | | | (EACH INCLUDES) |
| | 255-6257 | [1] | KIT-SEAL(CHECK VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RING) |
| 2. | 453-9185 | [2] | VALVE GP-SOLENOID(COUNTERBALANCE) | |
| | | | (EACH INCLUDES) |
| | 373-1999 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 373-1993 | [1] | COIL-SOLENOID | |
| | 339-5305 | [1] | NUT(M16X1-THD) | |
| 3. | 453-9187J | [2] | VALVE GP-COUNTERBALANCE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 226-5687J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
