卡特零件查询（AP655F） 475-6746: VALVE GP-SOLENOID
广数供应链运营团队, 17 02月, 2025，浏览：
803 次

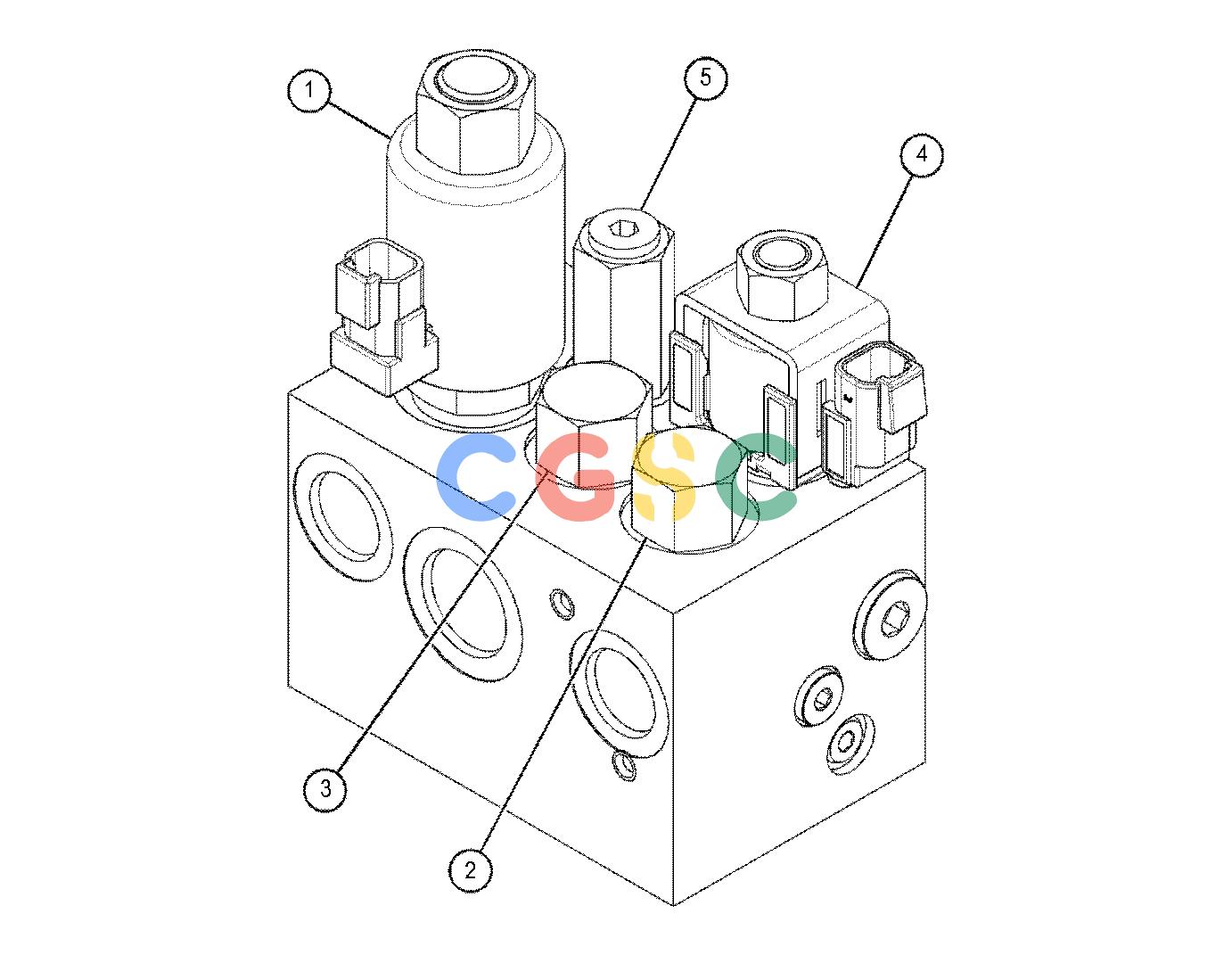

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 453-9709J | [1] | VALVE GP-SOLENOID(VIBRATORY, PROPORTIONAL FLOW) | |
| | 357-8873 | [1] | NUT-FITTING | |
| | 454-0063 | [1] | COIL-SOLENOID | |
| 2. | 453-9713H | [1] | VALVE GP-SEQUENCE(VIBRATORY, FLOW COMPENSATOR) | |
| 3. | 453-9712H | [1] | VALVE GP-SEQUENCE(COLD START HYDRAULIC BYPASS) | |
| 4. | 453-9708N | [1] | VALVE GP-SOLENOID(COLD START HYD BYPASS, ON, OFF) | |
| | 354-8088 | [1] | NUT-FITTING | |
| | 454-2138 | [1] | COIL-SOLENOID | |
| 5. | 505-8635L | [1] | VALVE GP-RELIEF | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 454-2146N | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | 357-8870J | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | 454-0333H | [1] | KIT-SEAL(SEQUENCE VALVE) | |
| | | | (EACH SEAL KIT INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 255-6257L | [1] | KIT-SEAL(CHECK VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RING) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
