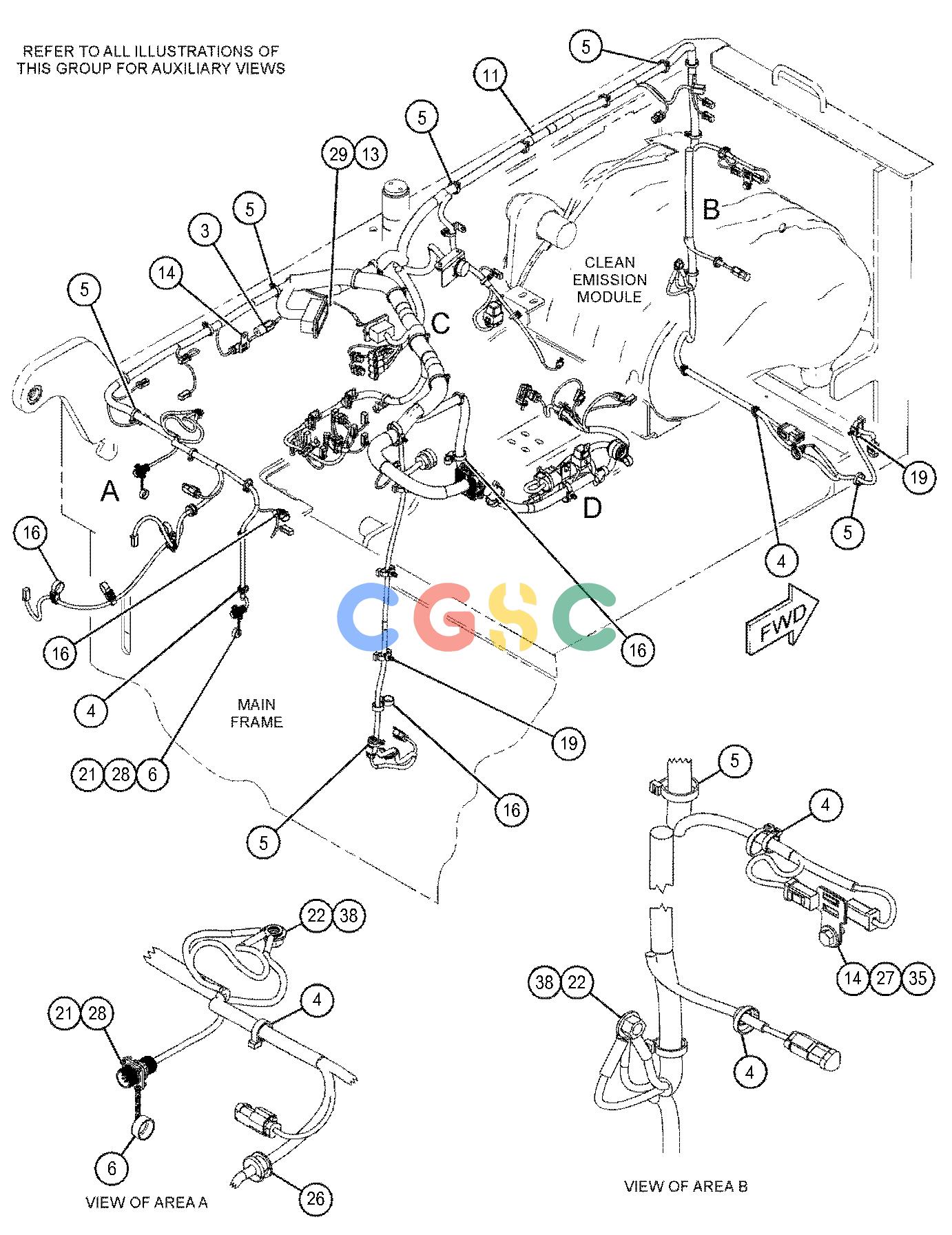

卡特零件查询（AP655F） 424-9118: WIRING GP-MACHINE
广数供应链运营团队, 17 02月, 2025，浏览：
987 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 0A-3721 | [1] | CLIP | |
| 2. | 3E-5239 | [1] | RELAY AS(24-VOLT)(POWER) | |
| 2A. | 3E-5239 | [1] | RELAY AS(24-VOLT)(PUMP) | |
| 3. | 3E-7675 | [1] | SWITCH GP-PRESSURE(BRAKE PRESSURE) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPATACLE AS & WEDGE) |
| 4. | 3S-2093 | [18] | STRAP-CABLE | |
| 5. | 7K-1181 | [29] | STRAP-CABLE | |
| 6. | 8D-9537 | [2] | CAP-DUST | |
| 7. | 8T-8799 | [4] | BOOT(RED) | |
| 8. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 9. | 204-2281 | [2] | STRAP-CABLE | |
| 10. | 396-6500Y | [1] | CONTROL GP-ELECTRONIC(24-VOLT) | |
| 11. | 499-4499Y | [1] | HARNESS AS-CHASSIS | |
| 12. | 461-1672 | [1] | PLATE | |
| 13. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 14. | 130-5300 | [4] | CLIP | |
| 15. | 132-5789 | [4] | CLIP(LADDER) | |
| 16. | 177-2215 | [11] | STRAP-DUAL CLAMP | |
| 17. | 1A-8912 | [4] | WASHER(6.7X12.7X1.6-MM THK) | |
| 18. | 1H-3244 | [4] | LOCKWASHER | |
| 19. | 327-0325 | [8] | STRAP-CABLE | |
| 20. | 352-3966 | [1] | CLIP(LADDER) | |
| 21. | 132-8485 | [2] | NUT-RING | |
| 22. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 23. | 4P-7581 | [2] | CLIP(LADDER) | |
| 24. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 25. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 26. | 5D-7635 | [1] | GROMMET | |
| 27. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 28. | 8C-8560 | [8] | SCREW-LOCK(4-40X0.5-IN) | |
| 29. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 30. | 7X-2536M | [1] | BOLT(M8X1.25X14-MM) | |
| 31. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 32. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 33. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 34. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 35. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 36. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 37. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 38. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
