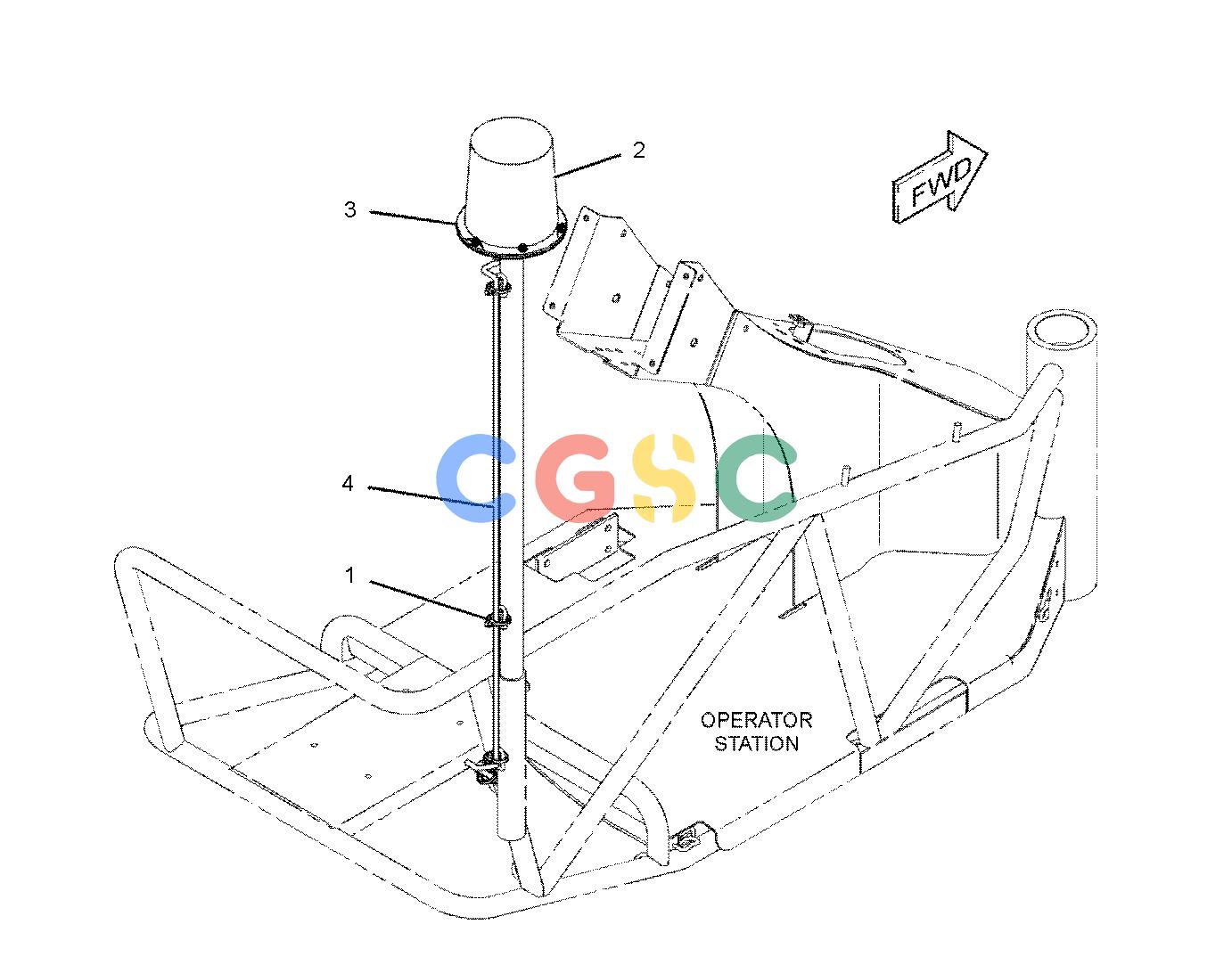

卡特零件查询（AP655F） 198-8284: LIGHTING GP-WARNING BEACON
广数供应链运营团队, 17 02月, 2025，浏览：
902 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 371-2241CY | [1] | LAMP GP-WARNING BEACON(AMBER, STROBE) | |
| 3. | 116-9320 | [1] | TUBE AS | |
| 4. | 213-5009 | [1] | HARNESS AS-LIGHTING(WARNING BEACON) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | Y | | SEPARATE ILLUSTRATION |
