卡特零件查询（AP655F） 344-3455: LAMP GP-HEAD & SIGNAL
广数供应链运营团队, 17 02月, 2025，浏览：
188 次

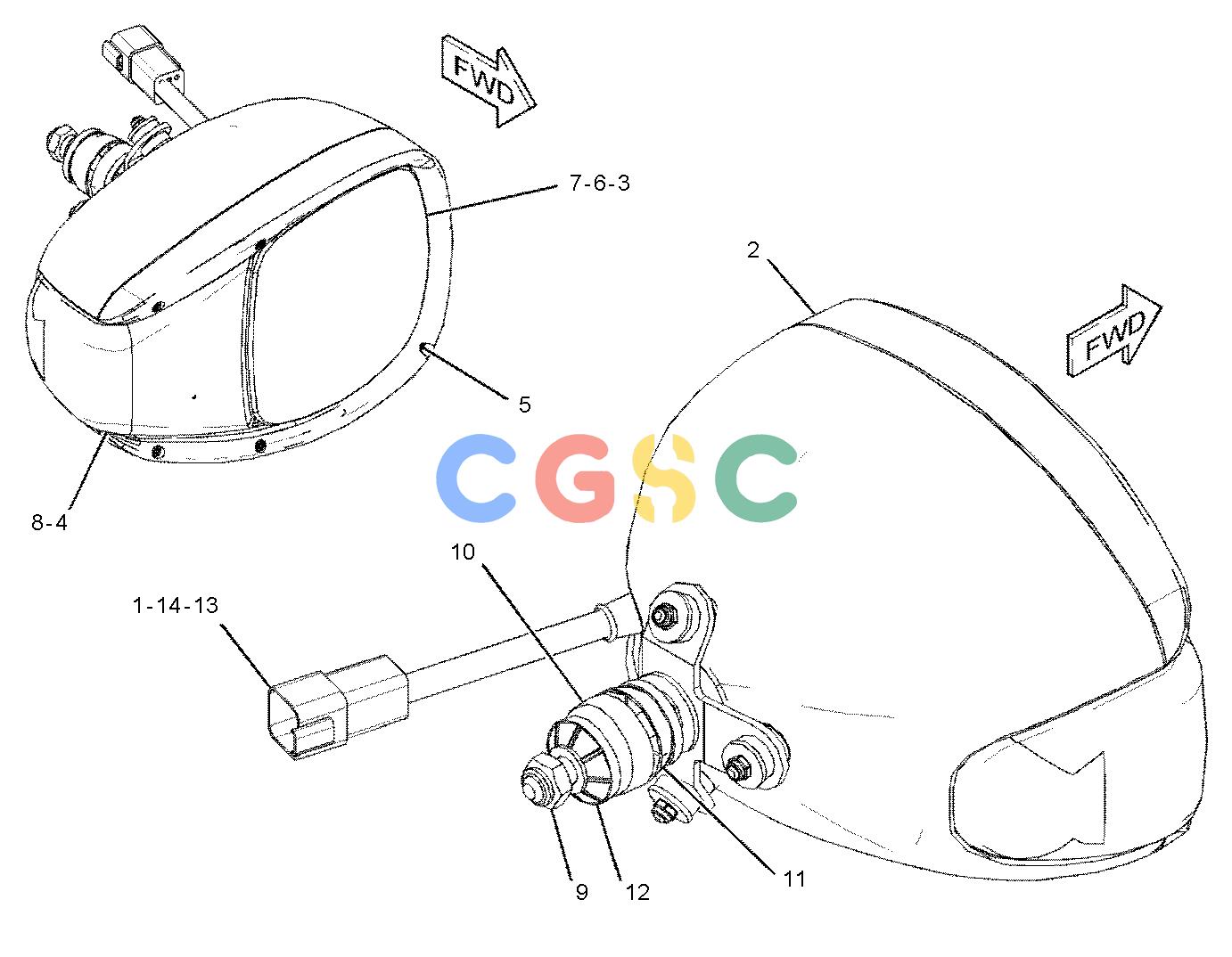

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-8737 | [1] | PLUG-SEAL | |
| 2. | 228-6054 | [1] | BEZEL | |
| 3. | 444-6523C | [1] | LENS AS(HEADLIGHT) | |
| 4. | 228-6052 | [1] | LENS AS(TURN SIGNAL) | |
| 5. | 228-6056 | [6] | SCREW(4-32X1.26-IN) | |
| 6. | 9X-3465 | [1] | LAMP(24-VOLT, 75/70-WATT)(HIGH, LOW BEAM) | |
| 7. | 130-3515 | [1] | LAMP(24-VOLT, 5-WATT)(FLOODLIGHT) | |
| 8. | 242-0588 | [1] | LAMP-TURN SIGNAL(24-VOLT, 21-WATT)(TURN SIGNAL) | |
| 9. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 10. | 100-3253 | [1] | SPACER(SPHERICAL) | |
| 11. | 100-3254 | [1] | SPACER(SPHERICAL) | |
| 12. | 100-3255 | [2] | WASHER(SPHERICAL) | |
| 13. | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 14. | 8T-8729 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
