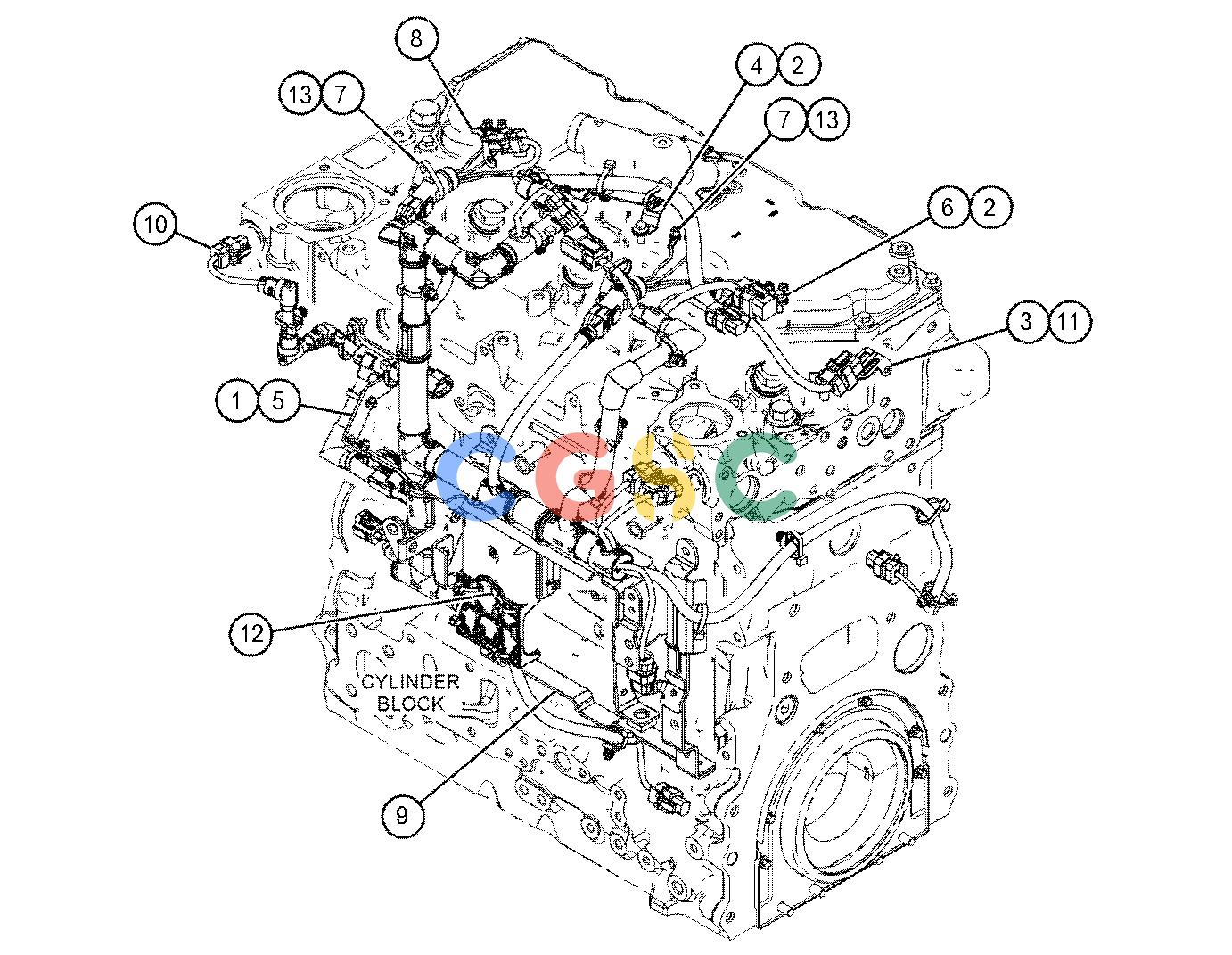

卡特零件查询（AP655F） 433-4680: WIRING GP-ENGINE
广数供应链运营团队, 17 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0631M | [2] | BOLT(M6X1X12-MM) | |
| 2. | 6I-0846M | [4] | BOLT(M6X1X14-MM) | |
| 3. | 359-6302 | [1] | BRACKET | |
| 4. | 360-8054 | [1] | BRACKET | |
| 5. | 361-3488 | [1] | BRACKET AS | |
| 6. | 362-5031 | [1] | BRACKET | |
| 7. | 367-6803 | [2] | HARNESS AS-WIRING(INTERNAL) | |
| | | | (EACH INCLUDES) |
| | 323-7347 | [1] | SEAL-O-RING | |
| | 332-7865 | [2] | TIE-CABLE | |
| 8. | 381-9267 | [1] | BRACKET | |
| 9. | 430-9520 | [1] | BRACKET AS | |
| 10. | 455-6840Y | [1] | HARNESS AS-WIRING(FIRE PLOW) | |
| 11. | 6I-0572M | [1] | BOLT(M8X1.25X20-MM) | |
| 12. | 232-1693M | [1] | BOLT-FLANGE HEAD(M6X1X35-MM) | |
| 13. | 254-3633M | [2] | BOLT-FLANGE HEAD(M6X1X16-MM, SELF LOCKING) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
