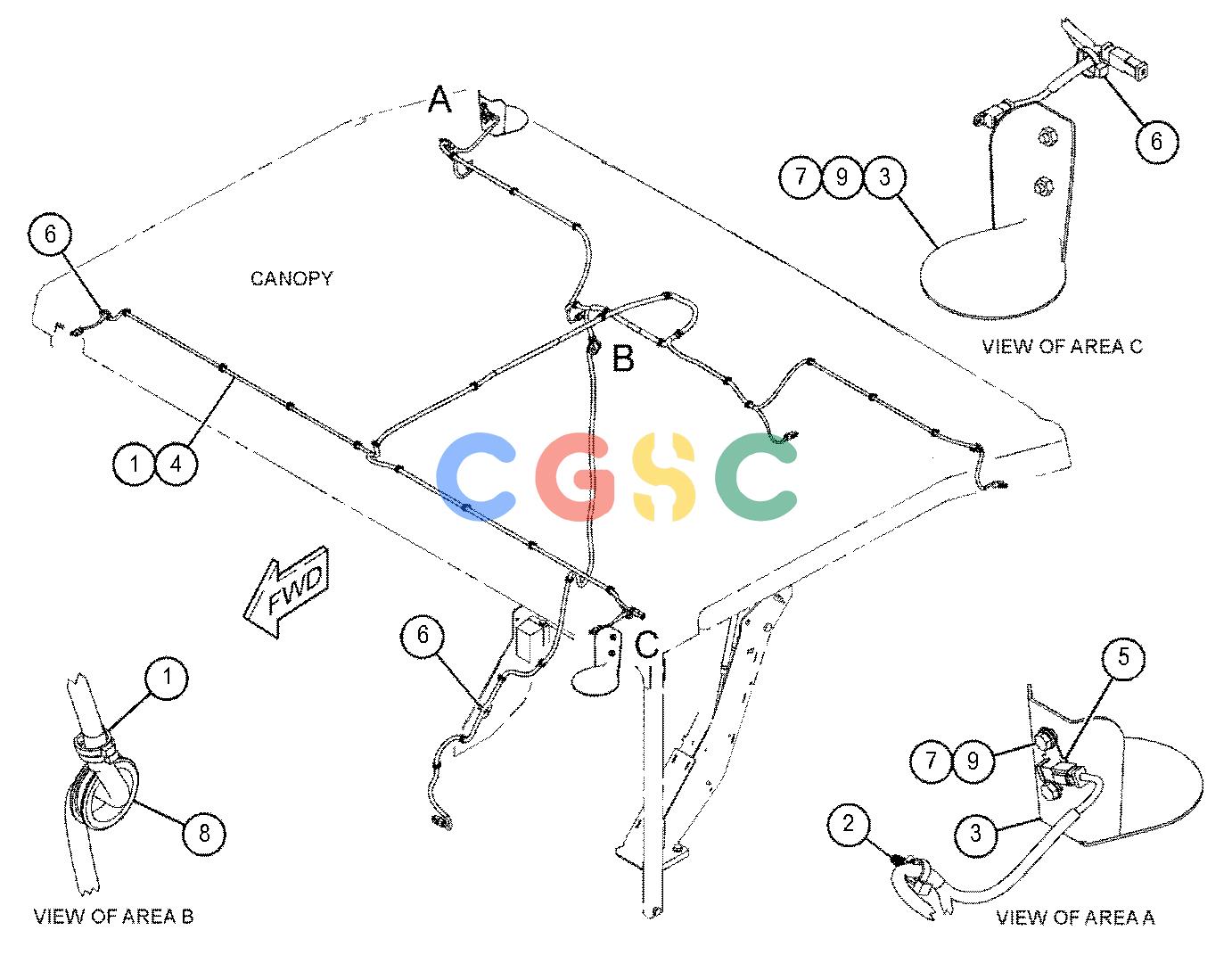

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [60] | STRAP-CABLE | |
| 2. | 327-0325 | [2] | STRAP-CABLE | |
| 3. | 486-8543 | [2] | BRACKET AS | |
| 4. | 445-2629Y | [1] | HARNESS AS-WIRING(HID LIGHTS, WARNING BEACON) | |
| 5. | 130-5300 | [1] | CLIP | |
| 6. | 7K-1181 | [3] | STRAP-CABLE | |
| 7. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 6P-0699 | [1] | GROMMET | |
| 9. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
