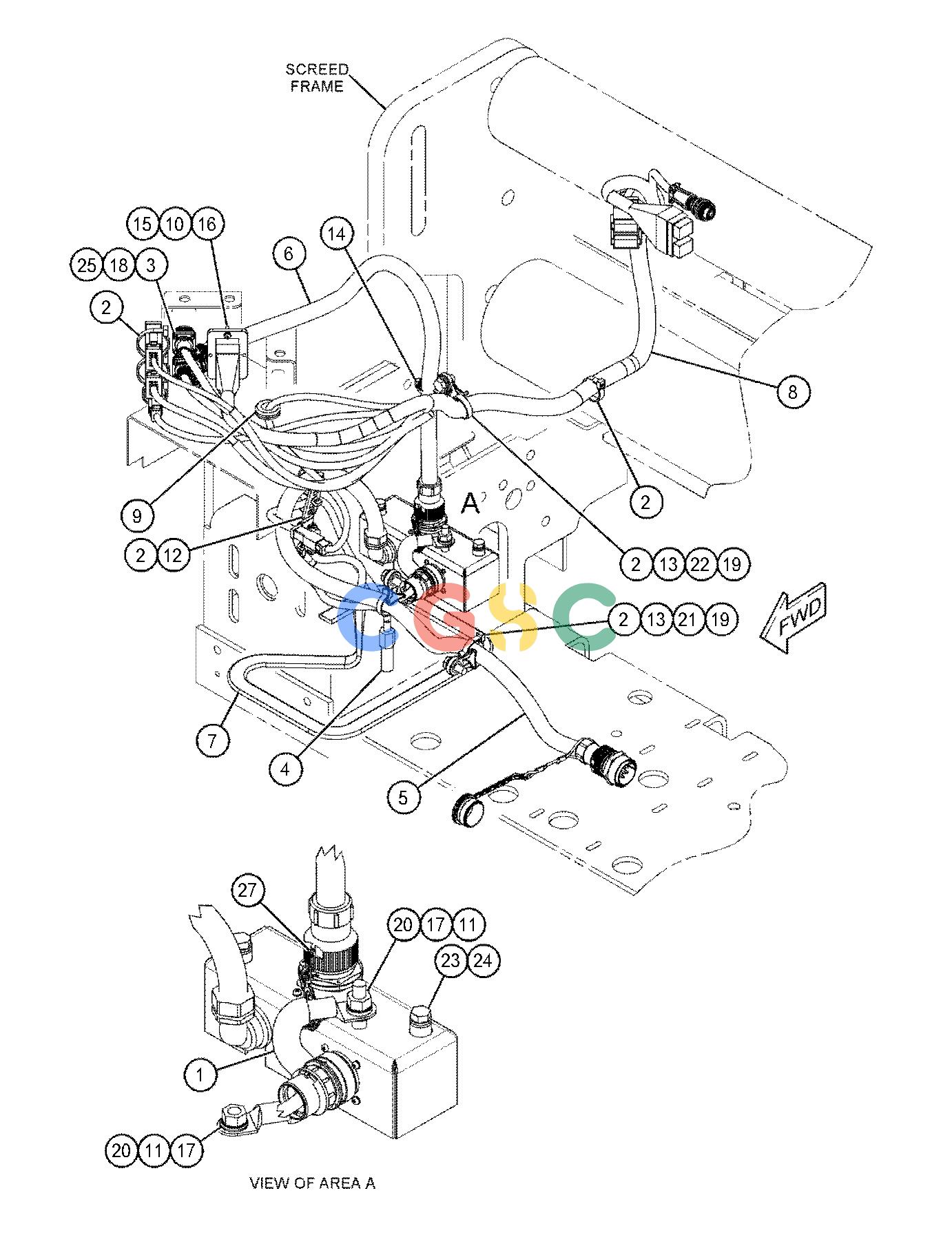

卡特零件查询（AP655F） 464-3708: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
863 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-2342 | [1] | STRAP AS-GROUND | |
| 2. | 7K-1181 | [10] | STRAP-CABLE | |
| 3. | 132-8485 | [2] | NUT-RING | |
| 4. | 336-2011 | [1] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| 5. | 466-7879Y | [1] | WIRING GP-HEATER(SCREED EXTENSION) | |
| 6. | 466-7880Y | [1] | HARNESS AS-WIRING(END GATE) | |
| 7. | 466-8440 | [1] | HEATER AS | |
| | 418-6704 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| 8. | Y | [1] | HARNESS AS-WIRING(EXTENSION, RH, LH) |
| 9. | 061-8844 | [1] | GROMMET | |
| 10. | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| 11. | 124-7346 | [2] | LOCKWASHER | |
| 12. | 352-3964 | [1] | CLIP(LADDER) | |
| 13. | 381-2621 | [4] | MOUNTING-CABLE TIE | |
| 14. | 443-3962 | [1] | TIE | |
| 15. | 5C-8312M | [2] | NUT(M4X0.7-THD) | |
| 16. | 6V-9491M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 17. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| 18. | 8C-8560 | [4] | SCREW-LOCK(4-40X0.5-IN) | |
| 19. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 21. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 22. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4177M | [2] | BOLT(M8X1.25X90-MM) | |
| 24. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 9B-1117 | [4] | LOCKWASHER | |
| 27. | 5P-6025D | | LOCKWIRE(0.4-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
