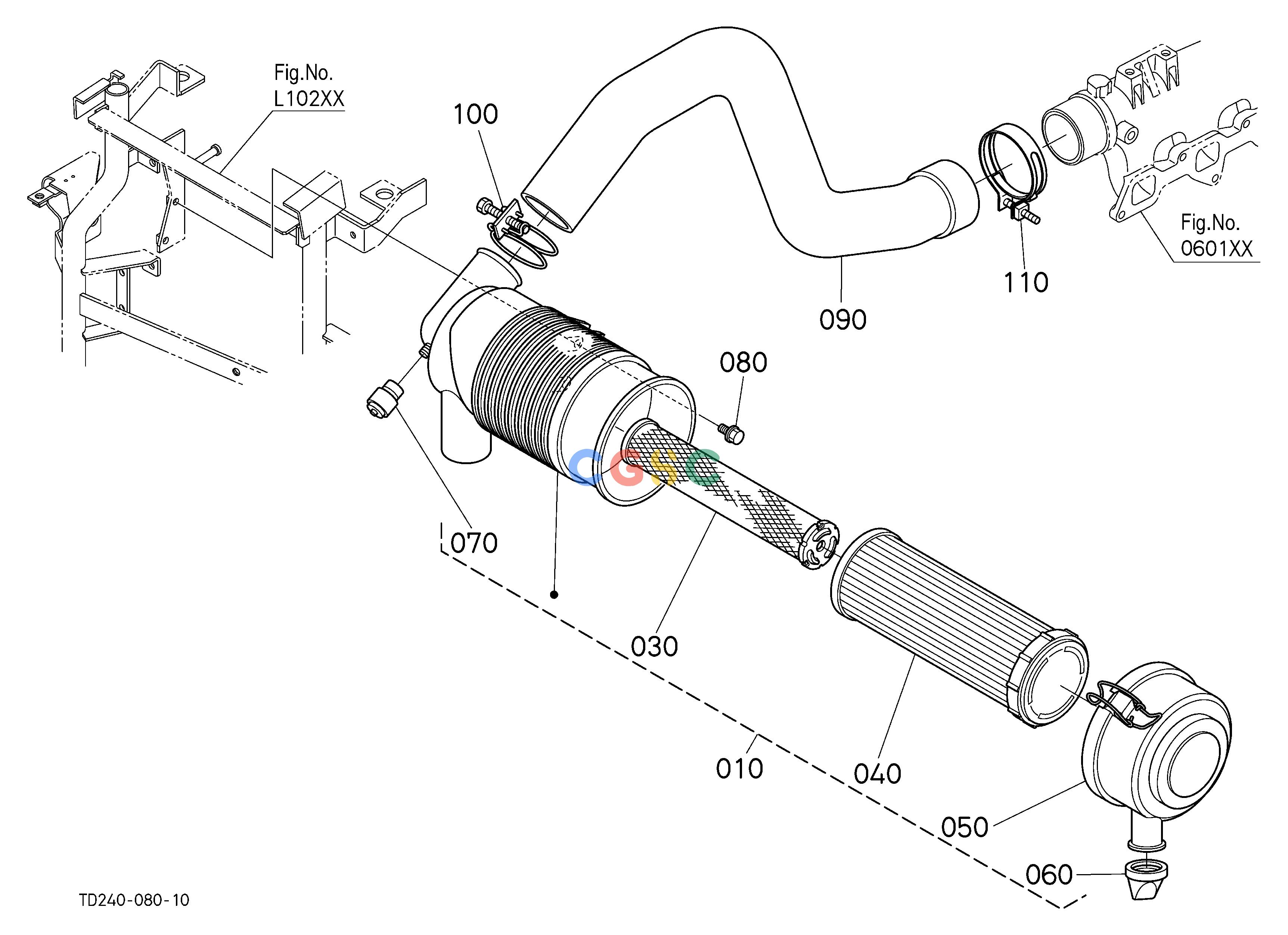

久保田零件查询060401 AIR CLEANER ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
139 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05016300
|
[1] |
ASSY CLEANER,AIR(W)
|
2.5740(lbs); 1.170
|
| 030. |
TA04093220
|
[1] |
ASSY ELEMENT,INNER
|
0.4620(lbs); 0.210
|
| 040. |
TA04093230
|
[1] |
ASSY ELEMENT,OUTER
|
1.2320(lbs); 0.560
|
| 050. |
TA14093240
|
[1] |
COVER,ASSY. (W)
|
0.6710(lbs); 0.305
|
| 060. |
TA04093250
|
[1] |
VALVE,EVACUATOR
|
0.0242(lbs); 0.011
|
| 070. |
1512611090
|
[1] |
INDICATOR,ASSY
|
0.0550(lbs); 0.025
|
| 080. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 090. |
TD14016330
|
[1] |
HOSE
|
1.8920(lbs); 0.860
|
| 100. |
0931889066
|
[1] |
CLAMP,HOSE
|
0.0792(lbs); 0.036
|
| 110. |
3135118110
|
[1] |
BAND(PIPE)
|
0.0880(lbs); 0.040
|
