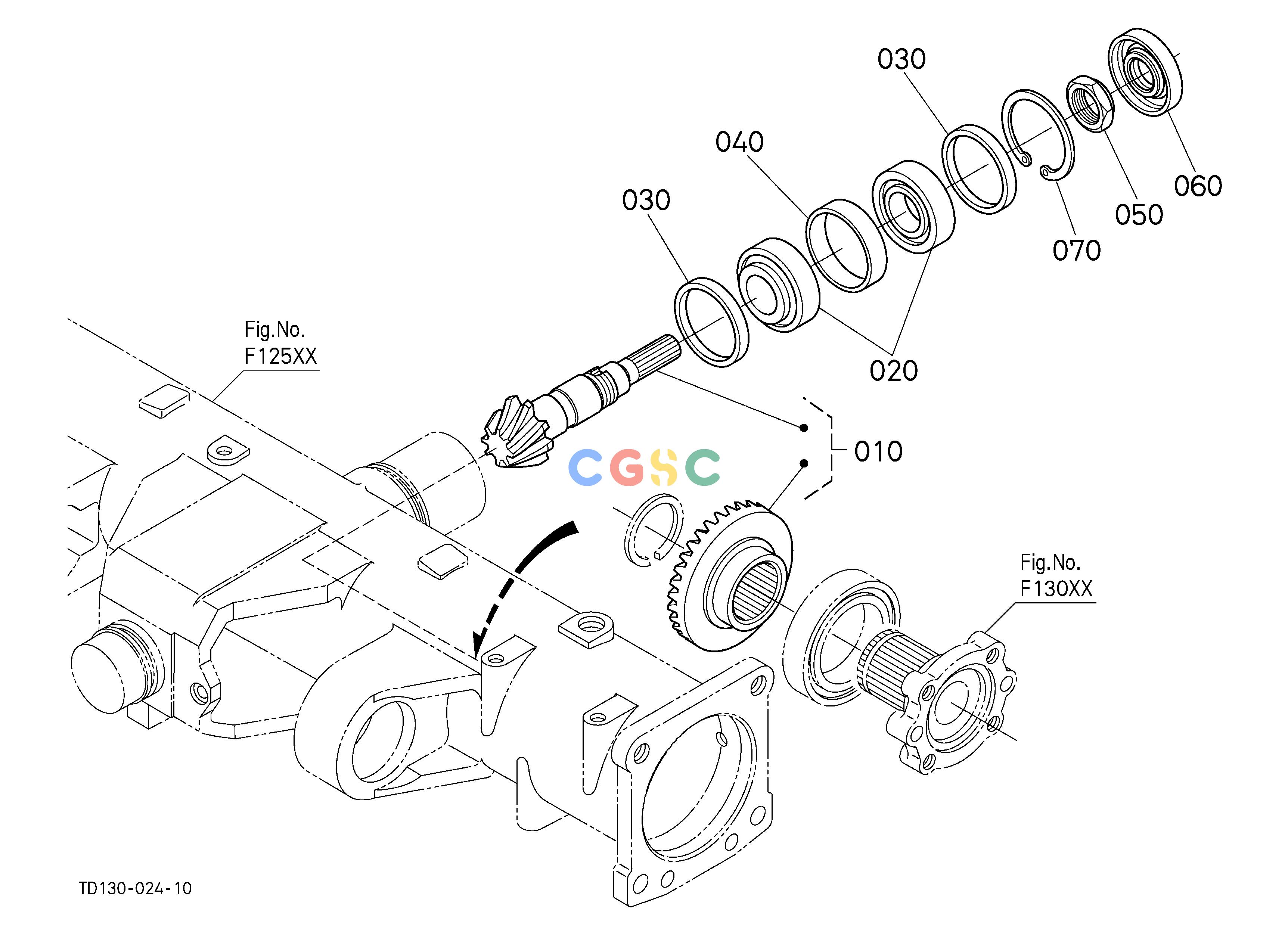

久保田零件查询F12701 BEVEL GEAR (FRONT) FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06012012
|
[1] |
ASSY GEAR,BEVEL
|
4.1800(lbs); 1.900
|
| 020. |
3407012200
|
[2] |
BEARING,TAPER-ROLLER
|
0.6710(lbs); 0.305
|
| 030. |
3407012060
|
[2] |
COLLAR
|
0.0330(lbs); 0.015
|
| 030. |
3407012070
|
[2] |
COLLAR
|
0.0330(lbs); 0.015
|
| 030. |
3407012080
|
[2] |
COLLAR
|
0.0330(lbs); 0.015
|
| 030. |
3407012090
|
[2] |
COLLAR
|
0.0330(lbs); 0.015
|
| 030. |
3407012100
|
[2] |
COLLAR
|
0.0440(lbs); 0.020
|
| 040. |
3407012130
|
[1] |
COLLAR
|
0.0660(lbs); 0.030
|
| 040. |
3407012140
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 040. |
3A22143100
|
[1] |
COLLAR
|
0.0550(lbs); 0.025
|
| 040. |
3407012160
|
[1] |
COLLAR
|
0.0660(lbs); 0.030
|
| 040. |
3407012170
|
[1] |
COLLAR
|
0.0660(lbs); 0.030
|
| 050. |
3A02141300
|
[1] |
NUT
|
0.0968(lbs); 0.044
|
| 060. |
3A02144120
|
[1] |
SEAL,OIL
|
0.0704(lbs); 0.032
|
| 070. |
0461100580
|
[1] |
CIR-CLIP,INTERNAL
|
0.0110(lbs); 0.005
|
