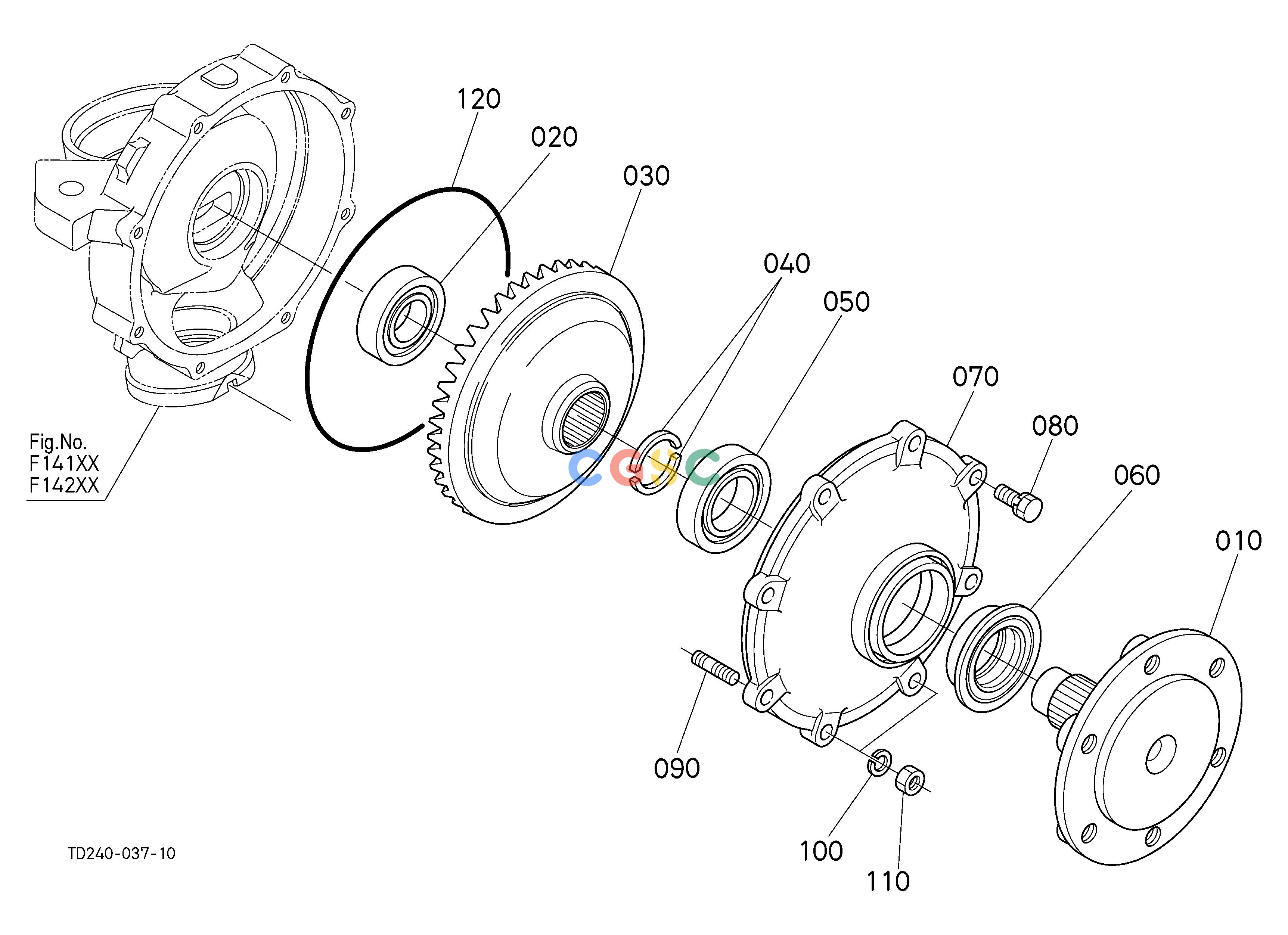

久保田零件查询F15001 FRONT AXLE FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T185013330
|
[2] |
AXLE,FRONT
|
7.5900(lbs); 3.450
|
| 020. |
TA14013140
|
[2] |
BEARING,BALL
|
0.5500(lbs); 0.250
|
| 030. |
3278113210
|
[2] |
GEAR,BEVEL
|
13.6400(lbs); 6.200
|
| 040. |
3407013350
|
[4] |
COLLAR
|
0.0220(lbs); 0.010
|
| 050. |
TD03013150
|
[2] |
BEARING,BALL
|
0.7920(lbs); 0.360
|
| 060. |
3407013370
|
[2] |
SEAL,OIL
|
0.2750(lbs); 0.125
|
| 070. |
TA04013133
|
[2] |
COVER(FRONT AXLE)
|
6.3800(lbs); 2.900
|
| 080. |
0112350825
|
[12] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 090. |
0151350825
|
[4] |
BOLT,STUD
|
0.0660(lbs); 0.030
|
| 100. |
0451250080
|
[4] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 110. |
0215650080
|
[4] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 120. |
3135344130
|
[2] |
O RING
|
0.0220(lbs); 0.010
|
