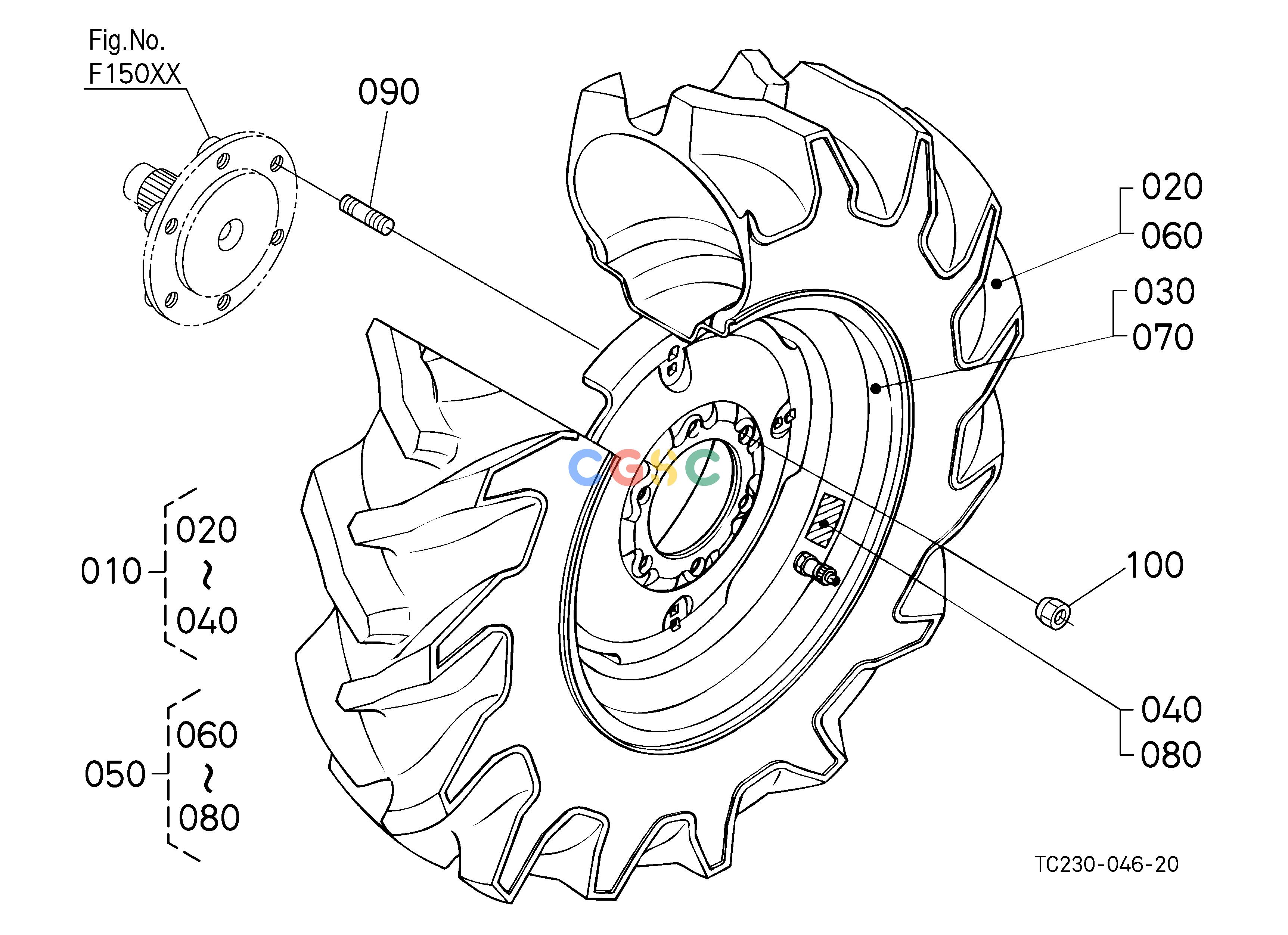

久保田零件查询P10101 FRONT WHEEL (8.3-16) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23010730
|
[1] |
ASSY TIRE ABR8753BR
|
0.0000(lbs); 0.000
|
| 020. |
TC23043040
|
[1] |
8.3-16 R1 6PLY
|
0.0000(lbs); 0.000
|
| 030. |
6643417640
|
[1] |
WHEEL
|
24.8600(lbs); 11.300
|
| 040. |
99999-99999
|
[1] |
LABEL,TIRE RH
|
0.0000(lbs); 0.000
|
| 050. |
TC23010740
|
[1] |
ASSY TIRE ABR8753BL
|
0.0000(lbs); 0.000
|
| 060. |
TC23043040
|
[1] |
8.3-16 R1 6PLY
|
0.0000(lbs); 0.000
|
| 070. |
6643417640
|
[1] |
WHEEL
|
24.8600(lbs); 11.300
|
| 080. |
99999-99999
|
[1] |
LABEL,TIRE LH
|
0.0000(lbs); 0.000
|
| 090. |
TA15049160
|
[12] |
STUD,WHEEL
|
0.1100(lbs); 0.050
|
| 100. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
