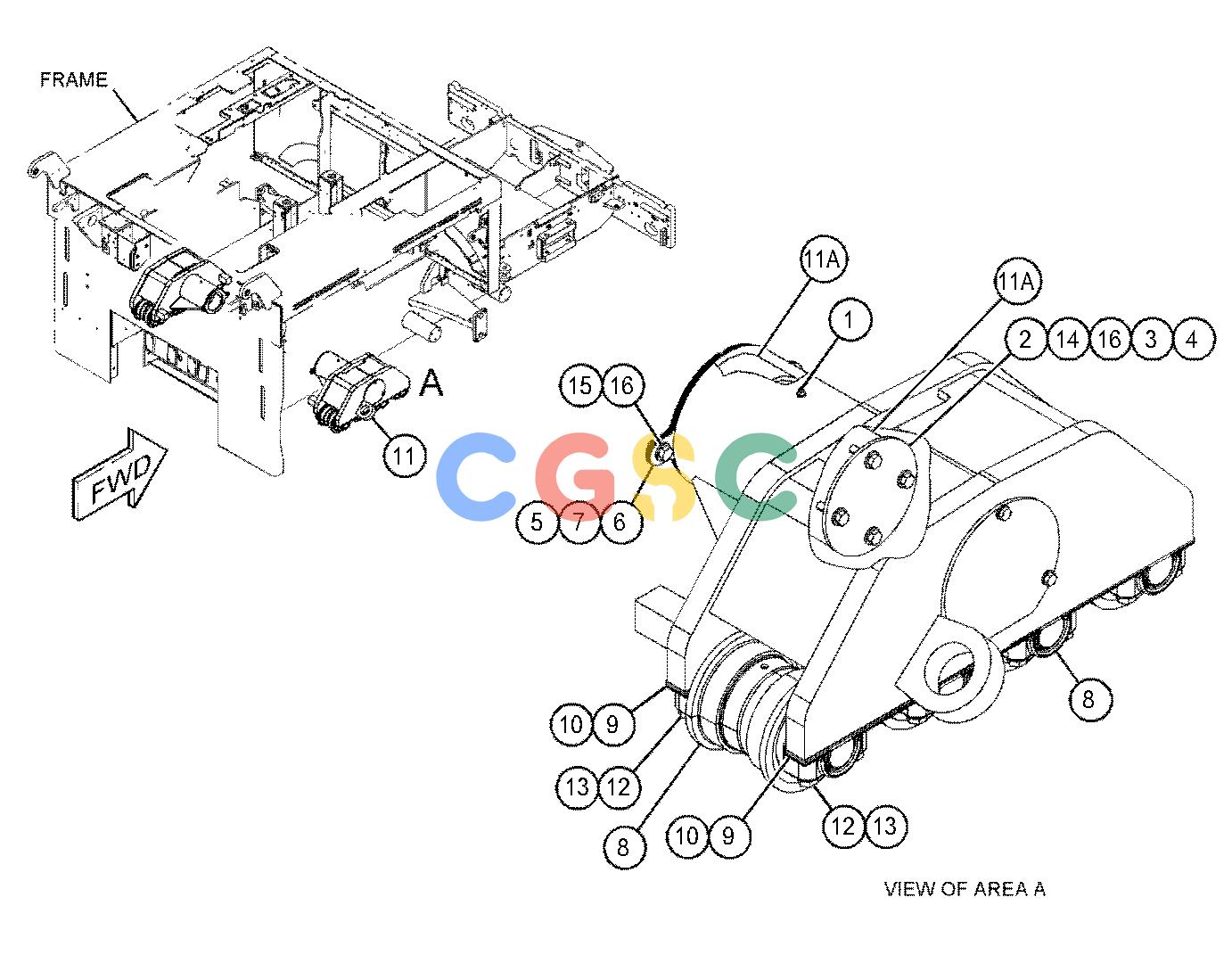

卡特零件查询（AP655F） 434-4985: BOGIE GP-REAR
广数供应链运营团队, 17 02月, 2025，浏览：
919 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 107-7885 | [1] | CAP | |
| 3. | 114-6094 | [2] | SHIM(0.51-MM THK) | |
| 4. | 114-6095 | [2] | SHIM(1.52-MM THK) | |
| 5. | 124-0237 | [2] | RING | |
| 6. | 124-0238B | [8] | SHIM(0.51-MM THK) | |
| 7. | 124-0239B | [8] | SHIM(1.52-MM THK) | |
| 8. | 301-0652Y | [4] | ROLLER GP-TRACK-SINGLE FLANGE | |
| 9. | 436-6582 | [4] | SHIM(1.6-MM THK) | |
| 10. | 436-6583 | [4] | SHIM(3-MM THK) | |
| 11. | 436-6589 | [1] | FRAME GP-TRACK ROLLER | |
| 11A. | 105-9056 | [2] | BUSHING | |
| | 436-6588 | [1] | FRAME AS | |
| 12. | 7X-2554M | [16] | BOLT(M16X2X70-MM) | |
| 13. | 8T-4122 | [16] | WASHER-HARD(17X32X3.5-MM THK) | |
| 14. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 15. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 16. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
