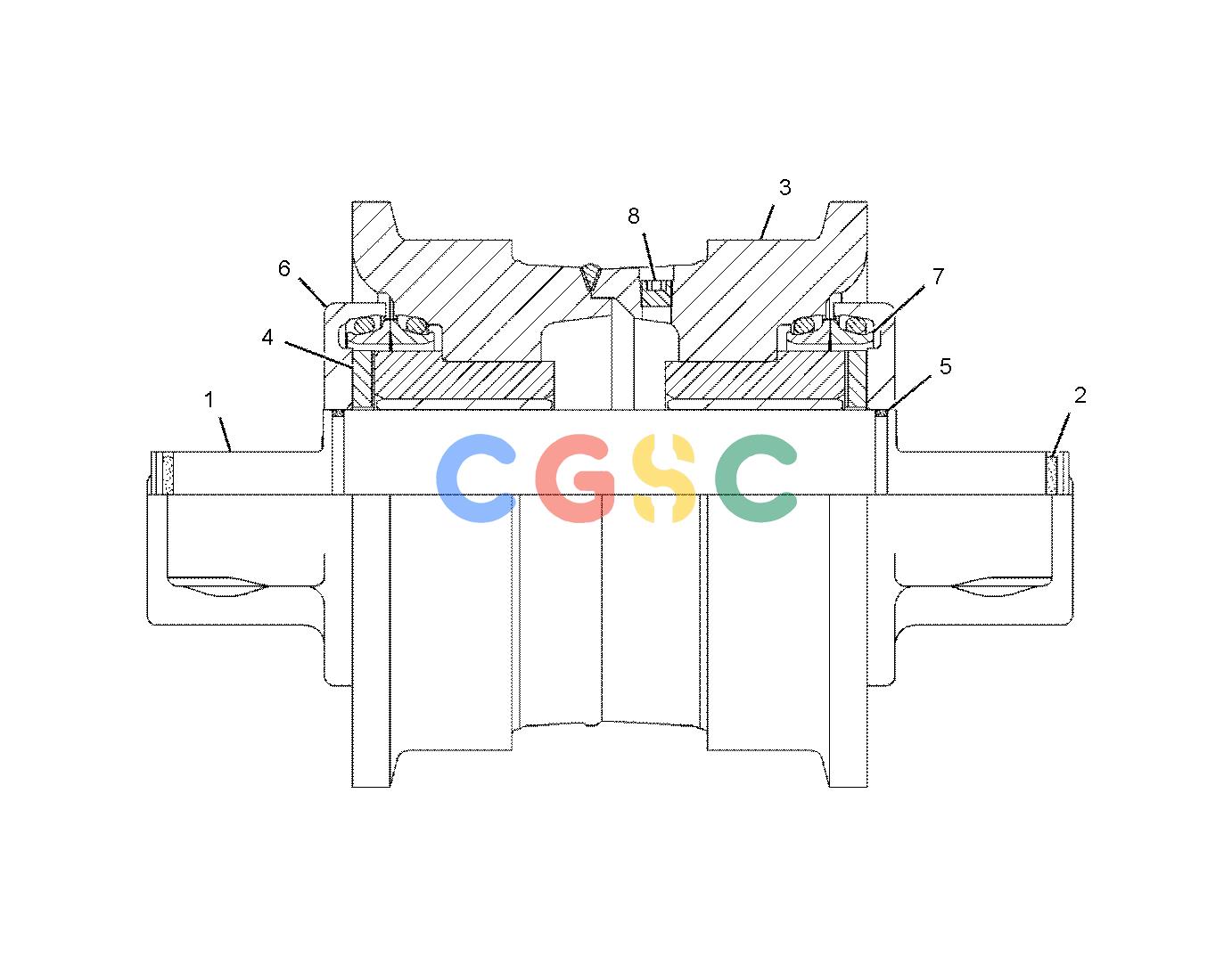

卡特零件查询（AP655F） 301-0652: ROLLER GP-TRACK-SINGLE FLANGE
广数供应链运营团队, 17 02月, 2025，浏览：
439 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6S-3171 | [1] | SHAFT | |
| 2. | 6S-3172 | [2] | RING | |
| 3. | 6S-3722 | [1] | ROLLER AS | |
| | 6S-3495 | [2] | BEARING AS | |
| | | | (EACH INCLUDES) |
| | 6Y-4744 | [1] | BUSHING | |
| | 6S-7038 | [1] | RIM AS | |
| 4. | 6S-7715 | [2] | WASHER-THRUST(52X86X6.35-MM THK) | |
| 5. | 7D-9749 | [2] | SEAL-O-RING | |
| 6. | 301-0096 | [2] | COLLAR-TRACK ROLLER | |
| 7. | 6S-3285C | [2] | SEAL GP-DUO-CONE | |
| | | | (EACH INCLUDES) |
| | 6S-3284 | [2] | RING-TORIC | |
| 8. | 9F-2247 | [1] | PLUG-PIPE | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
