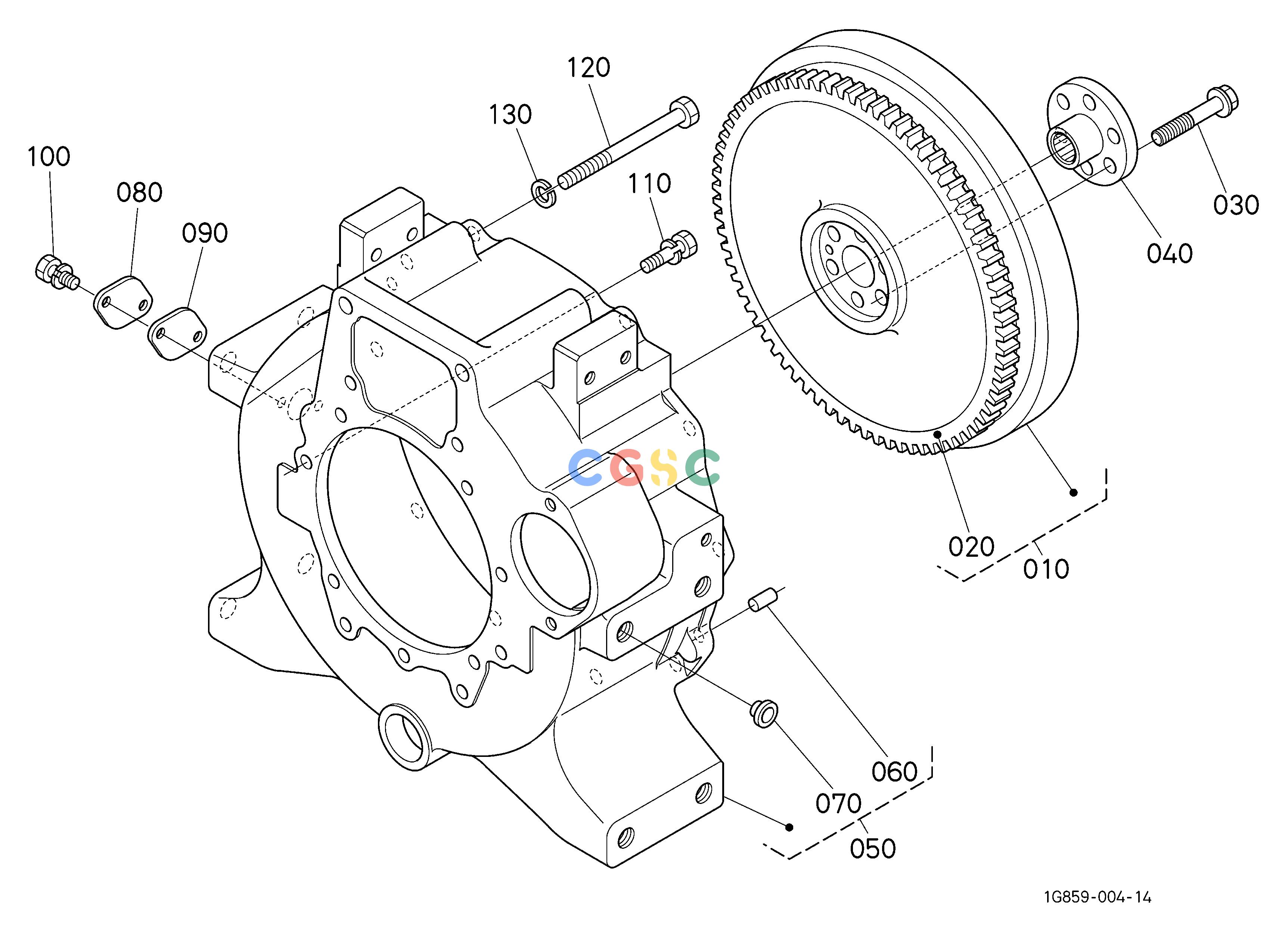

久保田零件查询010301 FLYWHEEL [EXCEPT HST TYPE] ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
372 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G79225010
|
[1] |
COMP.FLYWHEEL
|
72.6000(lbs); 33.000
|
| 010. |
1G79225013
|
[1] |
COMP.FLYWHEEL
|
63.8000(lbs); 29.000
|
| 020. |
1A02163820
|
[1] |
GEAR,RING
|
3.3000(lbs); 1.500
|
| 030. |
1739425160
|
[6] |
BOLT,FLYWHEEL
|
0.1540(lbs); 0.070
|
| 030. |
1J85425160
|
[6] |
BOLT,FLYWHEEL
|
0.1430(lbs); 0.065
|
| 040. |
3508014010
|
[1] |
HUB,SPLINE
|
0.9680(lbs); 0.440
|
| 050. |
TD06020102
|
[1] |
COMP.HOUSING,F-W.
|
77.0000(lbs); 35.000
|
| 050. |
TD06020103
|
[1] |
COMP.HOUSING,F-W.
|
77.0000(lbs); 35.000
|
| 060. |
0501201018
|
[2] |
PIN,STRAIGHT
|
0.0264(lbs); 0.012
|
| 070. |
3330090910
|
[8] |
PLUG
|
0.0044(lbs); 0.002
|
| 080. |
1552104680
|
[1] |
COVER
|
0.0770(lbs); 0.035
|
| 090. |
1552104790
|
[1] |
PACKING,COVER
|
0.0110(lbs); 0.005
|
| 100. |
0112360816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 110. |
1642791010
|
[11] |
BOLT
|
0.0660(lbs); 0.030
|
| 120. |
0107351207
|
[2] |
BOLT
|
0.2706(lbs); 0.123
|
| 130. |
0451260120
|
[2] |
WASHER,SPRING
|
0.0110(lbs); 0.005
|
