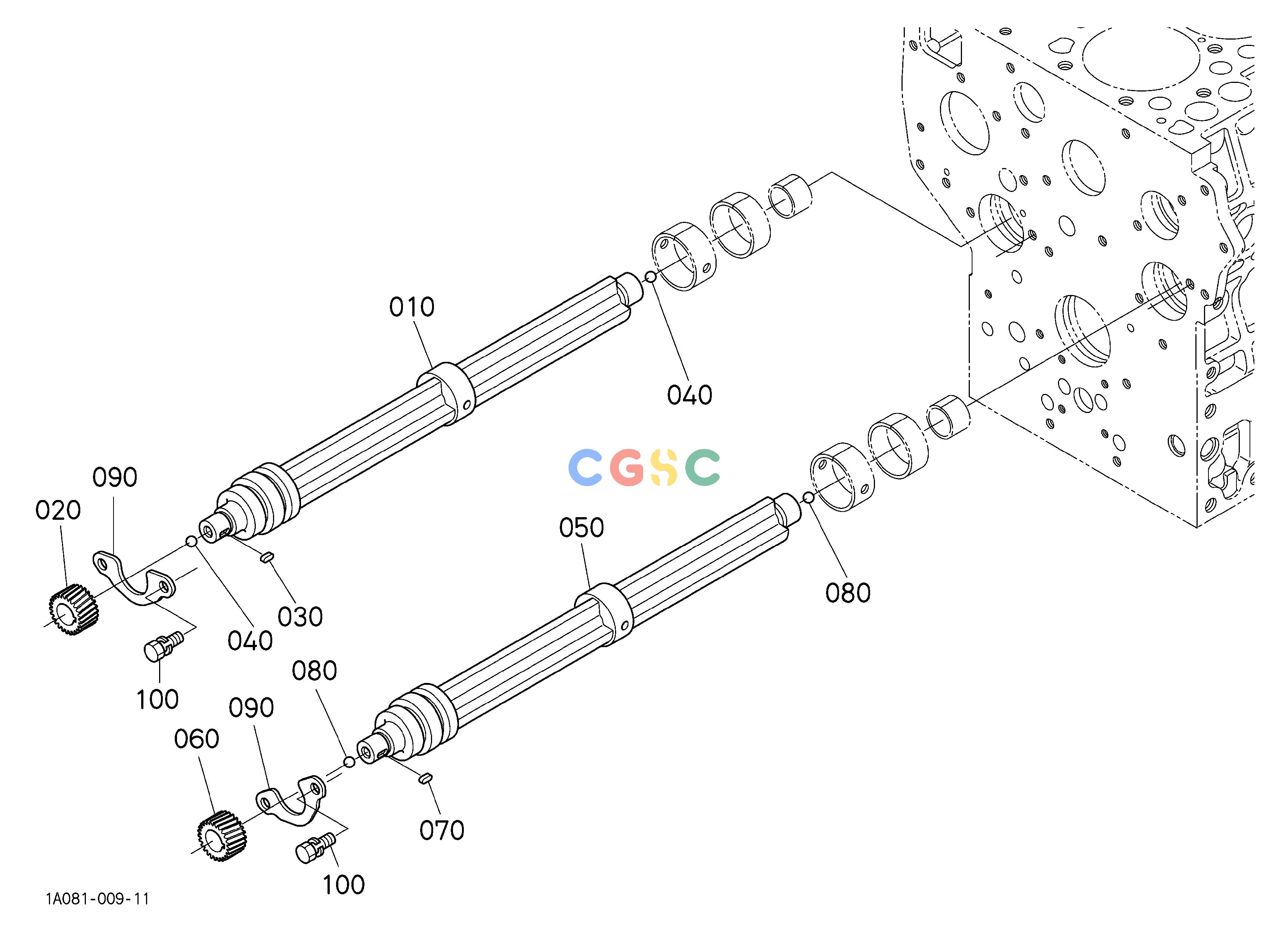

久保田零件查询010601 BALANCER ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1A08126334
|
[1] |
SHAFT,SUCTION
|
5.0820(lbs); 2.310
|
| 020. |
1A09126452
|
[1] |
GEAR BALANCER
|
0.1210(lbs); 0.055
|
| 030. |
0571200410
|
[1] |
KEY,FEATHER
|
0.0022(lbs); 0.001
|
| 040. |
0771500401
|
[2] |
BALL
|
0.0022(lbs); 0.001
|
| 050. |
1A08126314
|
[1] |
SHAFT,EXHAUST
|
5.2580(lbs); 2.390
|
| 060. |
1A09126440
|
[1] |
GEAR BALANCER
|
0.1210(lbs); 0.055
|
| 070. |
0571200410
|
[1] |
KEY,FEATHER
|
0.0022(lbs); 0.001
|
| 080. |
0771500401
|
[2] |
BALL
|
0.0022(lbs); 0.001
|
| 090. |
1A09126592
|
[2] |
STOPPER,WEIGHT SHAF.
|
0.0880(lbs); 0.040
|
| 100. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
