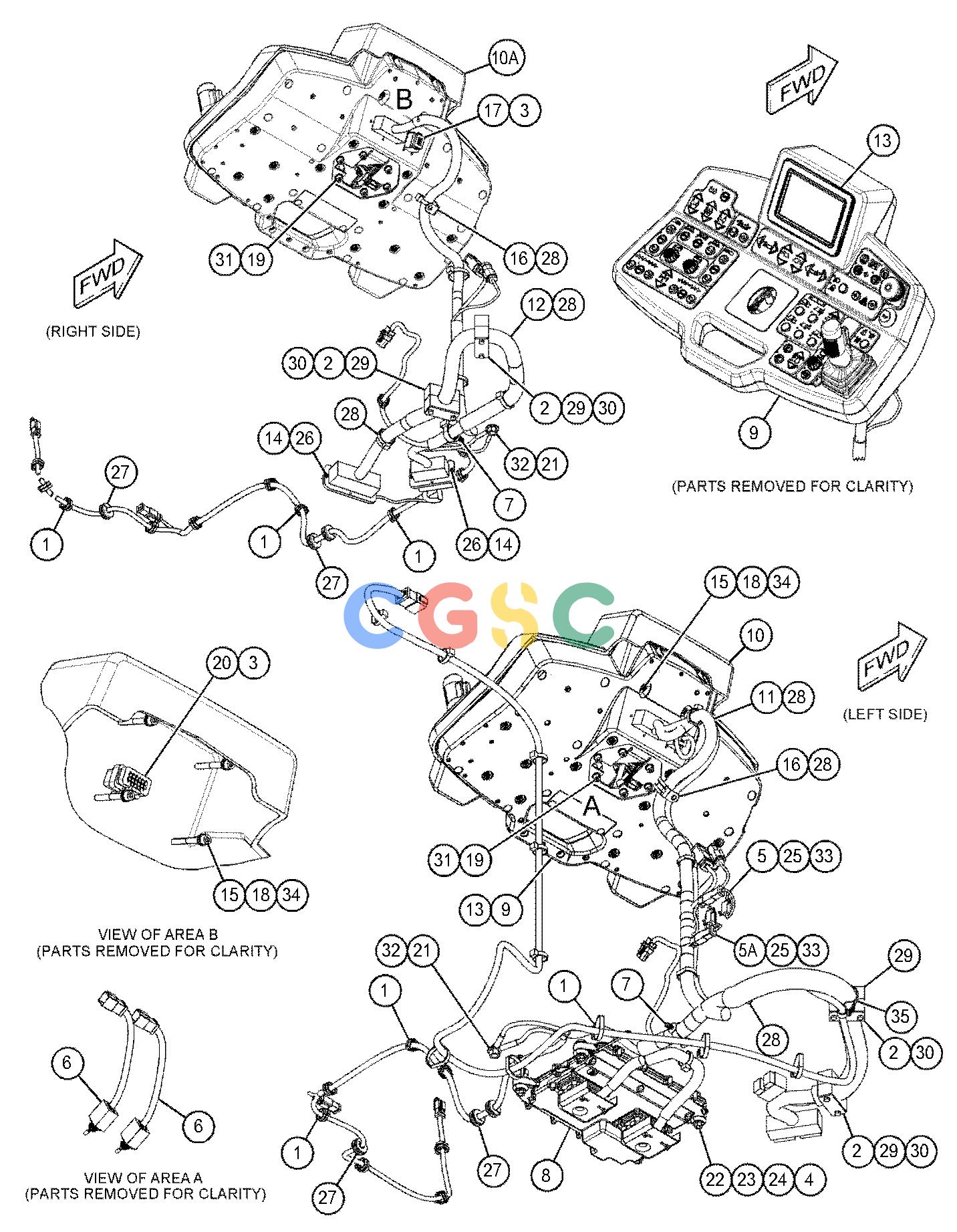

卡特零件查询（AP655F） 391-0729: CONSOLE GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [40] | STRAP-CABLE | |
| 2. | 7R-7951 | [4] | PLATE | |
| 3. | 8T-8737 | [32] | PLUG-SEAL | |
| 4. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 5. | 231-1389 | [1] | RESISTOR AS(FRONT) | |
| 5A. | 231-1389 | [1] | RESISTOR AS(REAR) | |
| | | | (EACH RESISTOR AS INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 308-3527 | [2] | SWITCH AS-TOGGLE | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 308-3526 | [1] | SWITCH AS-TOGGLE(TOW POINT) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3633 | [1] | RING-LOCKING | |
| 7. | 327-0325 | [2] | STRAP-CABLE | |
| 8. | 365-6773 | [1] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 9. | 470-5691Y | [2] | PANEL GP-INSTRUMENT | |
| 10. | 441-9360 | [1] | GUARD GP-VANDALISM(LH) | |
| 10A. | 441-9360 | [1] | GUARD GP-VANDALISM(RH) | |
| | | | (EACH GUARD GP INCLUDES) |
| | 226-0294J | [2] | LOCK AS | |
| | 226-0338 | [2] | CAM | |
| 11. | 464-8986Y | [1] | HARNESS AS-CONSOLE(LH) | |
| 12. | 441-9991Y | [1] | HARNESS AS-PANEL(RH) | |
| 13. | 456-7652 | [2] | MODULE GP-DISPLAY(PAVER INFORMATION) | |
| 14. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 15. | 105-3486M | [8] | BOLT-SOCKET HEAD(M6X1X50-MM) | |
| 16. | 132-5789 | [2] | CLIP(LADDER) | |
| 17. | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 18. | 158-0591 | [8] | LOCKWASHER | |
| 19. | 209-8296M | [12] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 20. | 241-8834 | [2] | PLUG AS-CONNECTOR(12-PIN) | |
| | | | (EACH INCLUDES) |
| | 455-0709 | [1] | SEAL-CONNECTOR | |
| 21. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 22. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 23. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 24. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 25. | 6V-9669M | [4] | SCREW-MACHINE(M3X0.5X8-MM) | |
| 26. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 27. | 7G-7053 | [6] | GROMMET | |
| 28. | 7K-1181 | [21] | STRAP-CABLE | |
| 29. | 7R-7940 | [8] | CLAMP | |
| 30. | 7X-2535M | [8] | BOLT(M6X1X60-MM) | |
| 31. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 33. | 9B-1117 | [4] | LOCKWASHER | |
| 34. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 35. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
