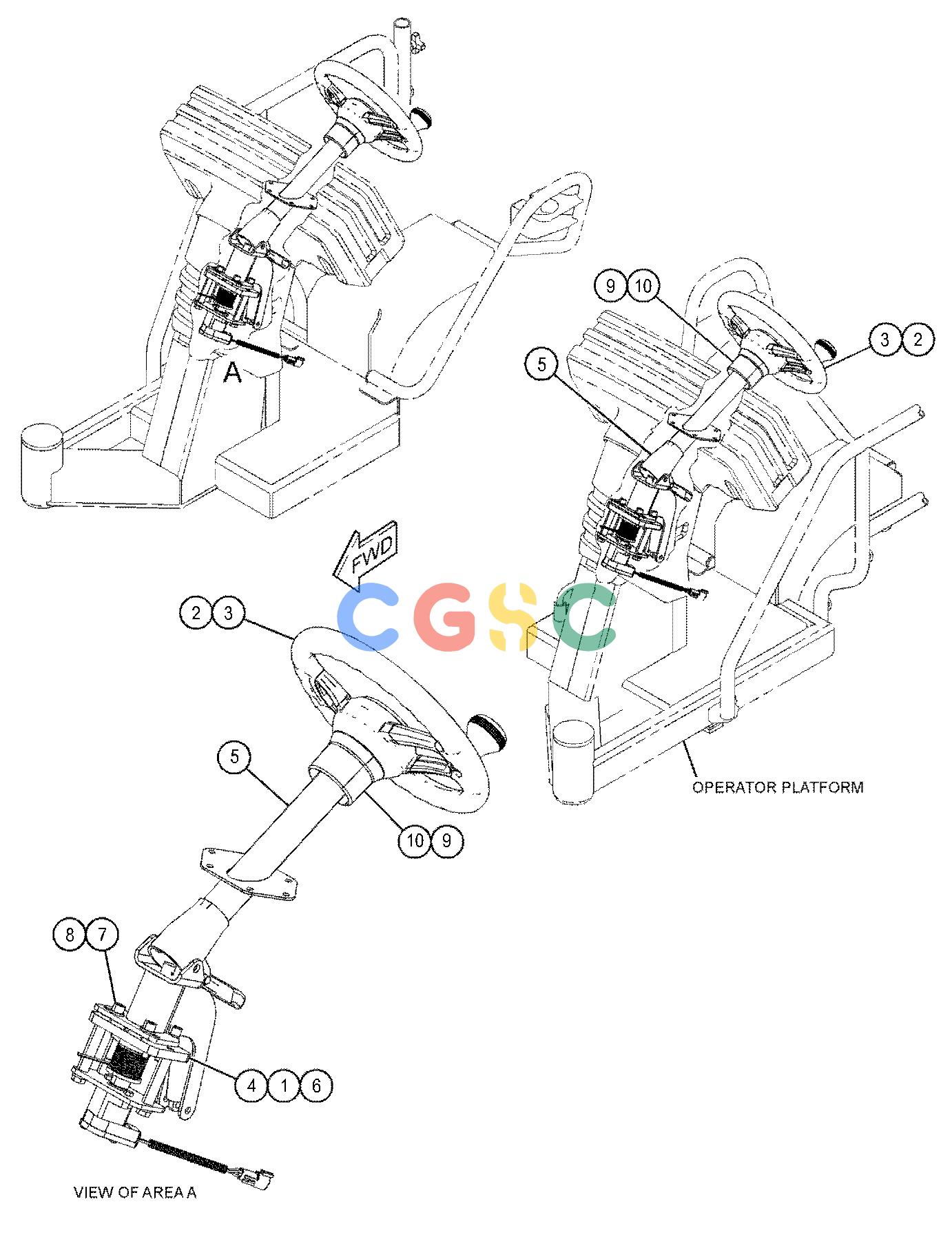

卡特零件查询（AP655F） 416-4118: CONTROL GP-STEERING
广数供应链运营团队, 17 02月, 2025，浏览：
160 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-4903 | [2] | KEY-SQUARE | |
| 2. | 419-1568 | [2] | CAP | |
| 3. | 417-5964 | [2] | STEERING WHEEL AS | |
| | | | (EACH INCLUDES) |
| | 419-0824 | [1] | KNOB AS-STEERING | |
| 4. | 418-5152Y | [2] | CONTROL GP-STEERING | |
| 5. | 426-2689Y | [2] | STEERING COLUMN GP | |
| 6. | 191-8920M | [4] | BOLT-SOCKET HEAD(M6X1X12-MM) | |
| 7. | 105-3484M | [8] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 8. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 174-8131M | [6] | SCREW-TRUSS HEAD(M4X0.7X12-MM) | |
| 10. | 361-2564 | [2] | COVER | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
