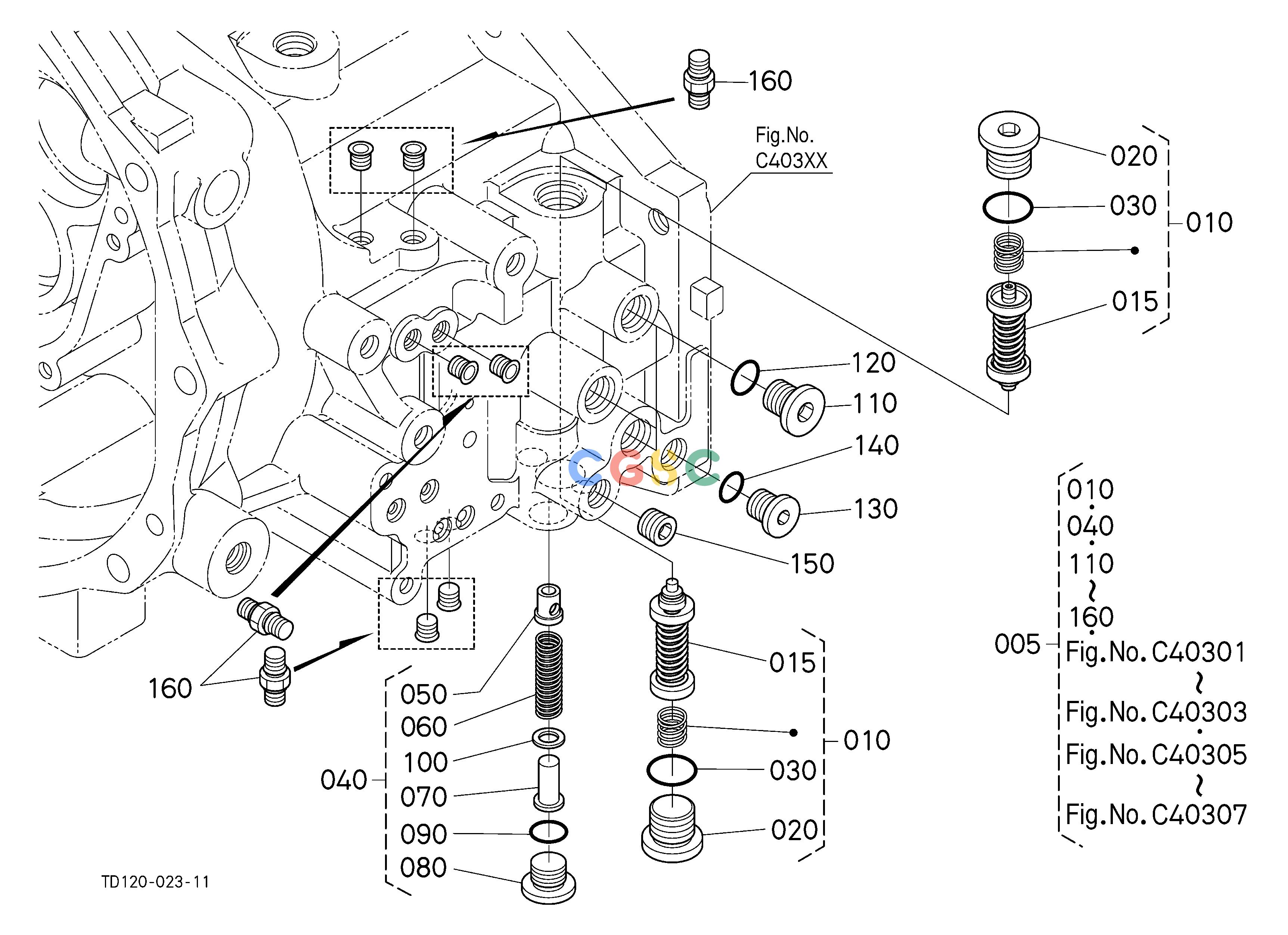

Pos.	Part No	Qty	Parts name	Comments
005.	TD15059991	[1]	HST,ASSY	ORDER BY REF.No.005 NEW PART.; <=50124 0.0000(lbs); 0.000
005.	TD15059992	[1]	HST,ASSY	ORDER BY REF.No.005 NEW PART.; >=50125 235.4000(lbs); 107.0
005.	TD15059993	[1]	HST,ASSY	ORDER BY REF.No.005 NEW PART.; >=60064 235.4000(lbs); 107.0
005.	TD15059996	[1]	ASSY HST	; >=60166 220.0000(lbs); 100.0
010.	TD17059010	[2]	ASSY VALVE,RELIEF	0.1870(lbs); 0.085
015.	TD17059050	[2]	COMP.VALVE,RELIEF	0.0902(lbs); 0.041
020.	5H60011820	[2]	PLUG(GPF1/2)	0.0880(lbs); 0.040
030.	0481700180	[2]	O RING	0.0022(lbs); 0.001
040.	TD17059600	[1]	ASSY,VALVE	0.1100(lbs); 0.050
050.	TD17058960	[1]	POPPET,L	0.0132(lbs); 0.006
060.	TD17059610	[1]	SPRING	0.0154(lbs); 0.007
070.	TD17059620	[1]	HOLDER	0.0242(lbs); 0.011
080.	5H60012620	[1]	PLUG,GPF3/8	0.0484(lbs); 0.022
090.	0481700140	[1]	O RING	0.0022(lbs); 0.001
100.	TD17059630	[1]	SHIM	0.5mm 0.0022(lbs); 0.001
100.	TD17059640	[1]	SHIM	0.2mm 0.0022(lbs); 0.001
110.	5H60012620	[3]	PLUG,GPF3/8	0.0484(lbs); 0.022
120.	0481700140	[3]	O RING	0.0022(lbs); 0.001
130.	K702139870	[1]	PLUG,GPF1/4	0.0264(lbs); 0.012
140.	0481700110	[1]	O RING	0.0022(lbs); 0.001
150.	K700139620	[1]	PLUG	0.0132(lbs); 0.006
160.	K757114680	[3]	PLUG,DOUBLE STOPPER M8	0.0220(lbs); 0.010
